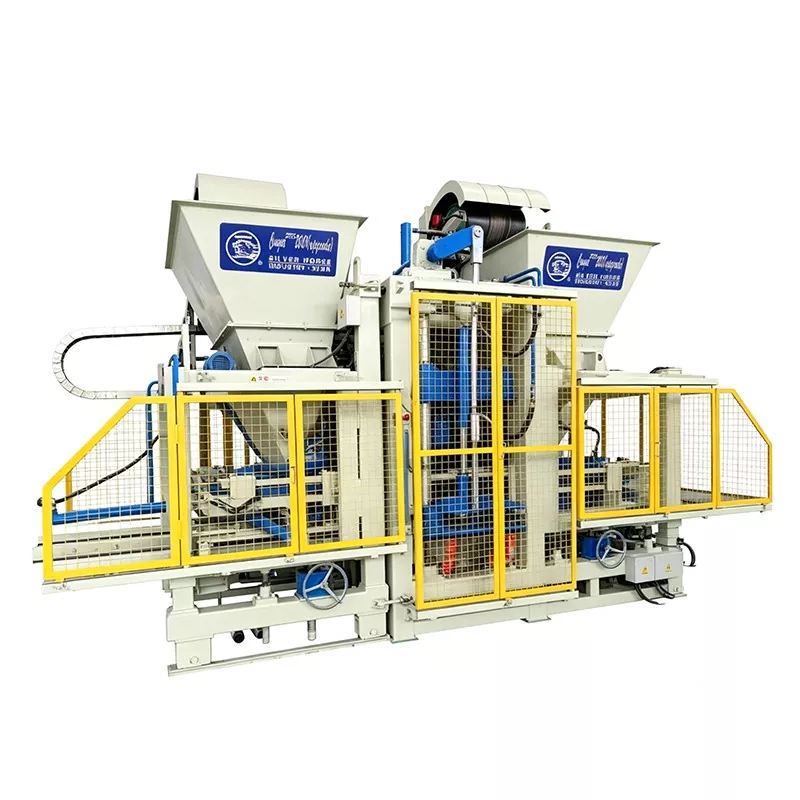

QFT9-16 Block Making Equipment

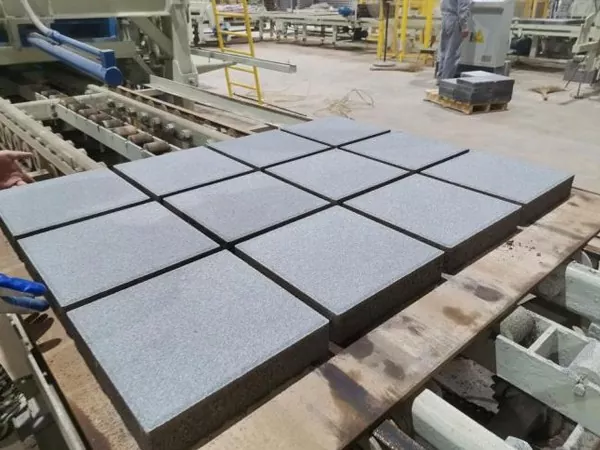

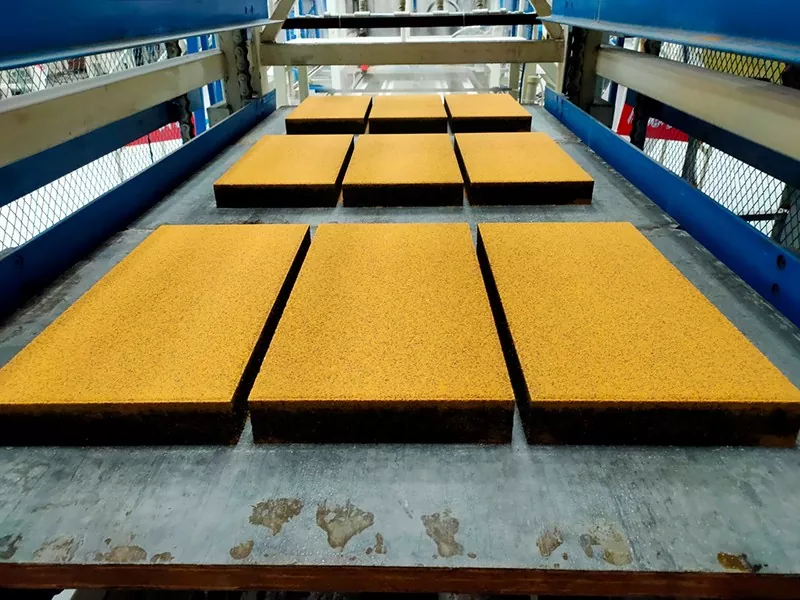

Paving stone：198×98×60/80 (mm)

◇ Quantity of molding：：40pcs./pallet

◇ Cycletime：20～25S

◇ Output：5700～7200pcs./h(about110～140㎡)

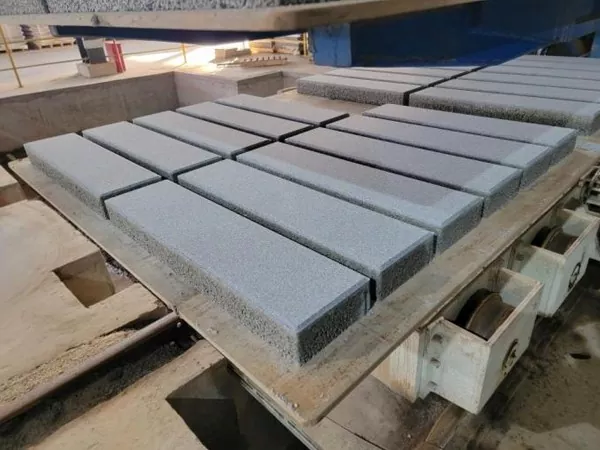

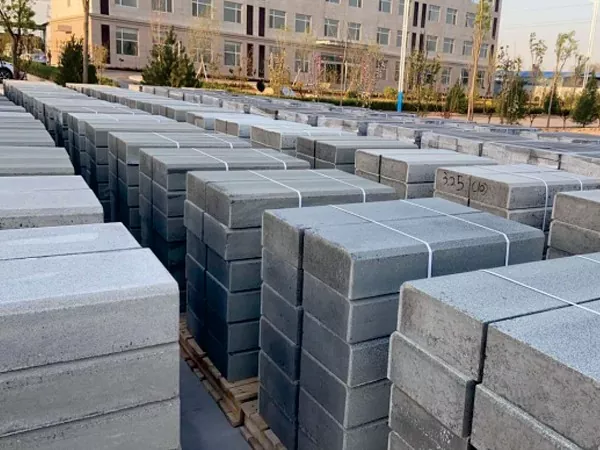

The color curbstone：500～750×120×300 (mm)

◇ Quantity of molding：2pcs./pallet

◇ Cycle time：30～35S

◇ Output：205～240pcs./h

Slope-protection brick：406×305×102 (mm)

◇ Quantity of molding：4pcs./pallet

◇ Cycle time：20～25S

◇ Output：570～720pcs./h

Solid brick：240×115×53(mm)

◇Quantity of molding：56pcs./pallet

◇ Cycle time：16～18S

◇ Output：11000～12000pcs./h

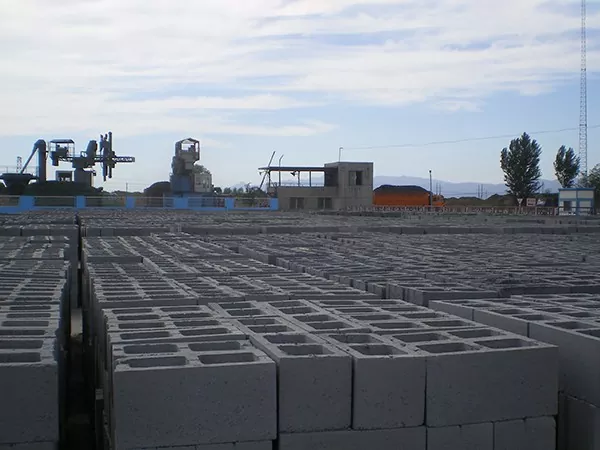

Hollow block：390×190×190(mm)

◇ Quantity of molding：：9pcs./pallet

◇ Cycle time：：18～22S

◇ Output：1400～1800pcs./h(about19～25m³)

◆

Pallet size (Length × Width):1250×900（mm）

◆

Installed power of main machine: about 70KW

◆

Excitation frequency: 0–65 Hz (controlled by a computer-controlled, it can realize full-process frequency conversion and has hard characteristics.)

◆

Average excitation acceleration: ≥ 20g (g=9.84m/s²; in the national standard, products with ≥12g are classified as high-quality grade.)

◆

Vibration mode: the four-axis chip servo vibration system (National Patent Technology for Invention of Silver Horse) is adopted, which makes the products uniform, dense, beautiful and exquisite; the equipment noise is reduced, and the production is more efficient.

◆

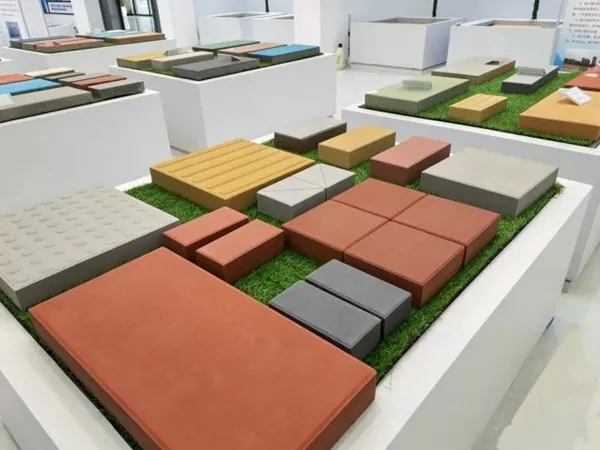

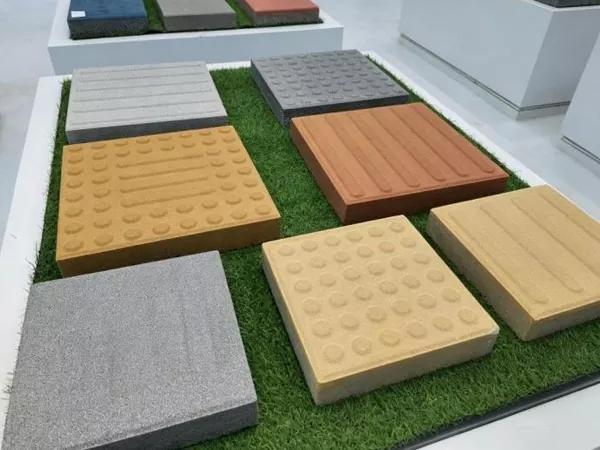

Molding range: capable of producing PC artificial stone, municipal bricks, wall bricks (load-bearing & non-load-bearing), special bricks (curb stones, slope protection stones), etc.

◆

Note: the molding cycle of the products varies with the type of raw materials and the grade requirements of the products.
