QFT6-16 Block Making Machine
Silver Horse QFT6-16 Block Making Machine adopts a unique multi-axis vibration system with a rational layout and compact structure, ensuring that the formed blocks have uniform strength, smooth surface, and excellent density.
The QFT6-16 Block Making Machine of Xi'an Silver Horse Company is a renowned brand in the industry. This production line features elegant, simple, and cost-effective design, with performance characteristics that match or exceed those of internationally advanced models.
Equipment Advantages
1) Each unit operates independently with excellent adjustability, making it suitable for producing blocks of different mix ratios and types.
2) It adopts a unique multi-axis vibration system with a rational layout and compact structure, ensuring that the molded blocks have uniform strength, smooth surface, and high density.

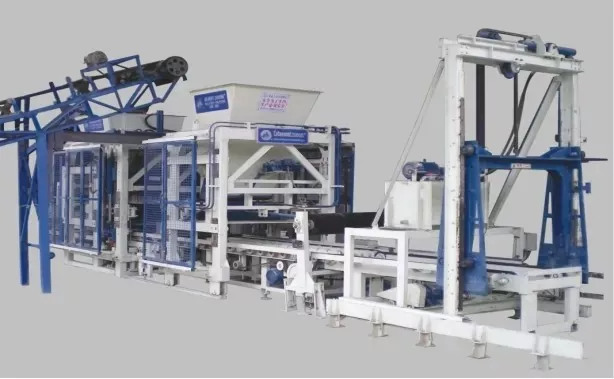

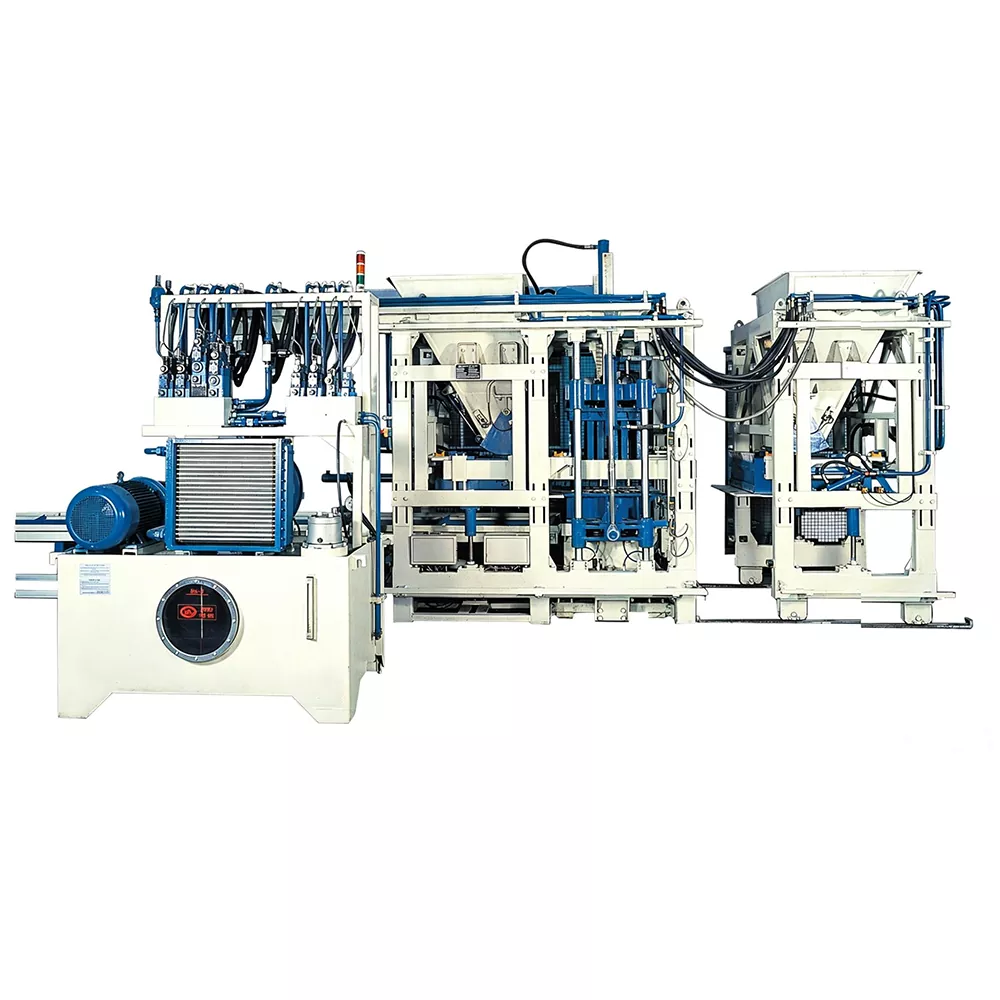

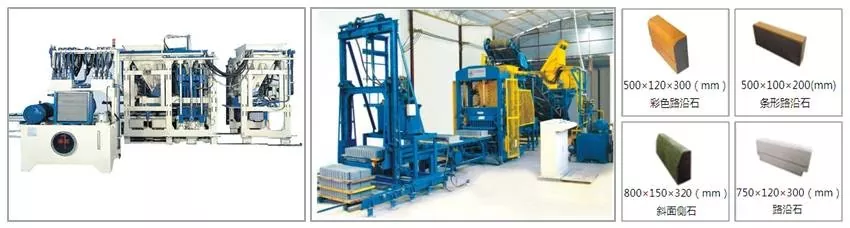

Display of Block Making Machine
Technical parameters
|
Technical parameters list for block making machine and the production line |
|
|
Parameters |
Technical note |
|
Pallet size |
1100 × 670×40(мм) |
|
The total power of the production line |
About 49kw |
|
Vibration frequency |
0~65HZ Adjustable frequency & scope available in whole course by computer controlled |
|
The boundary dimensions of the main machine |
8230×2200×2900(мм) |
|
The field of making |
The permeable brick, the color paving stone, wall brick (high load-bearing and non-load-bearing), special brick ( slope-protection brick) and other products are produced. |
List of production capacity
|
List of production capacity of block making machine |
|||
|
Model |
Specifications |
Forming Blocks |
Output/hour |
|
Paving stone |
198×98×60/80 (мм) |
27 bricks/ plate |
3800~4800 bricks/h |
|
Lawn block |
488×298×80/100 (мм) |
4 bricks/ plate |
570~720 bricks/h |
|
Solid brick |
240×115×53 (мм) |
40 bricks/ plate |
8800~9600 pieces/h |
|
Hollow block |
390×190×90 (мм) |
6 bricks/ plate |
1000~1200 blocks/h |
|
Note: All kinds of different blocks can be produced by the equipment, only change the mould. |
|||
Kindly reminder: Owing to different quality requirements of materials and products, Silver Horse Company has the right to optimize the design. The above parameters are for reference only.
Instructions for Equipment Configuration of Silver Horse Automatic Block Making Production Line
|
No. |
Name |
Qty. |
|
1 |
Silver Horse automatic block making system |
1 set |
|
1-01 |
Block making machine |
1 set |
|
1-02 |
Pallet feeder |
1 set |
|
1-03 |
Wet blocks conveyor |
1 set |
|
1-04 |
Hydraulic station |
1 set |
|
1-05 |
PLC control unit |
1 set |
|
1-06 |
The jet cleaning device |
1 set |
|
1-07 |
Mould |
1 set |
|
2 |
Color materials system of the main machine |
1 set |
|
3 |
Color materials mixer |
1 set |
|
4 |
Base materials mixer |
1 set |
|
5 |
Inclined belt conveyor |
2 sets |
|
6 |
Automatic unloader |
1 set |
|
7 |
Stacker |
1 set |
|
8 |
The remote fault diagnosis system |
1 set |
|
★ Note : Total power of the above equipment: about 120KW(40 percent utilization on average). The specific parameters are subject to the final plan. |
||

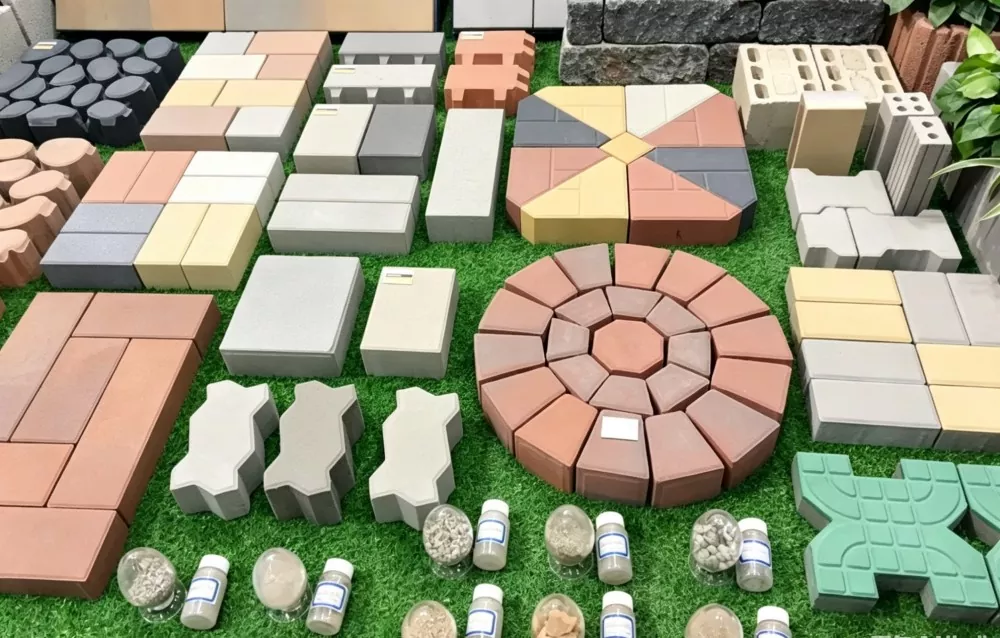

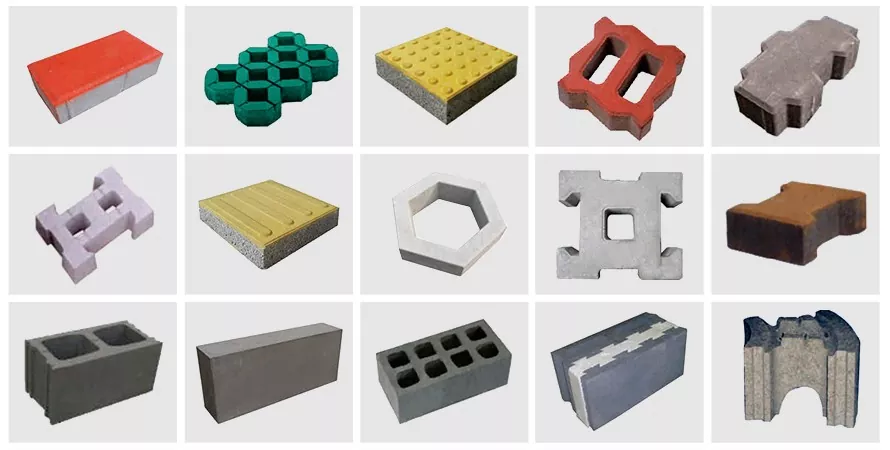

Display of products

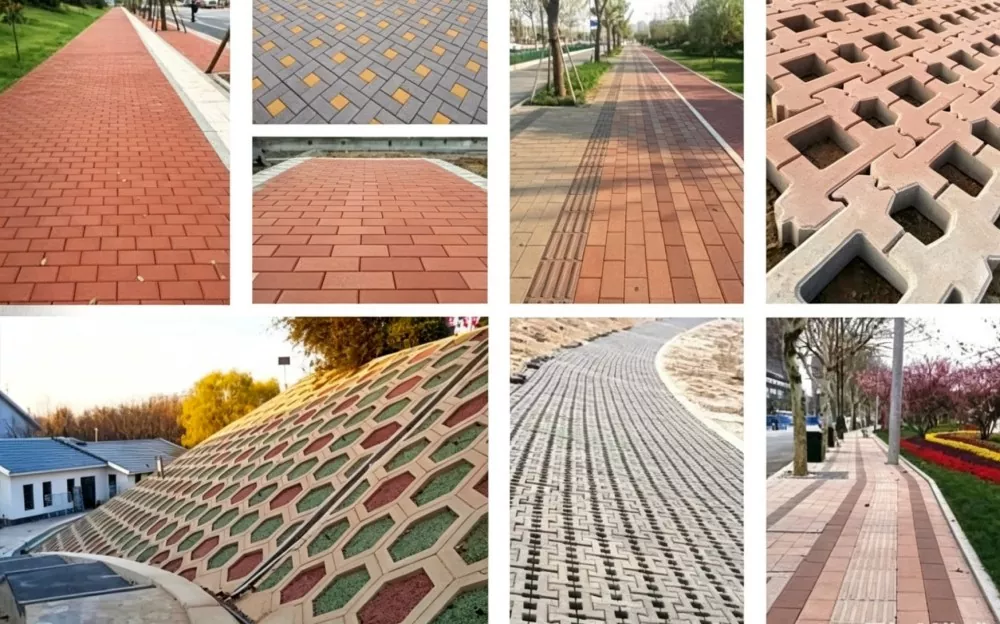

Application of products
