Fully Automatic Block and Stone Integrated Machine
Xi'an Silver Horse's fully automatic block and stone integrated machine is equipped with an intelligent PLC control system, enabling fully automated operation and reducing manual intervention. It features vibration and static pressure forming, ensuring high production efficiency, uniform product precision, and being energy-efficient, pollution-free. As a direct-supplied manufacturer in China, the equipment is suitable for large-scale industrial production and can be used in large overseas building materials industrial parks.
Silver Horse 2025 Fully Automatic Block and Stone Integrated Machine features an innovative technology of high-pressure and vibration and compaction and fusion, uniquely combining "top compression with bottom vibration" into a single process. It offers exceptional adaptability to raw materials, efficiently processing conventional granular materials as well as ultra-fine powders finer than 200 mesh, including various industrial solid wastes such as metal tailings, coal gangue, fly ash, slag, and construction waste. It effectively overcomes the problem of high-proportion blending of industrial solid wastes, enabling compatibility with all types of waste materials—rigid, soft, granular, ordinary powder, and ultra-fine powder, thus truly achieving the resource utilization of solid waste.
Key Benefits
Silver Horse 2025 Fully Automatic Block and Stone Integrated Machine adopts a patented technology combining top compression with bottom vibration, integrating static pressure and vibration into one process. The synergistic effect of ultra-high-tonnage static pressure and efficient servo vibration ensures high density, superior strength and consistent of products, overcoming the technical limitations of traditional equipment that cannot be compatible with both blocks and stones.

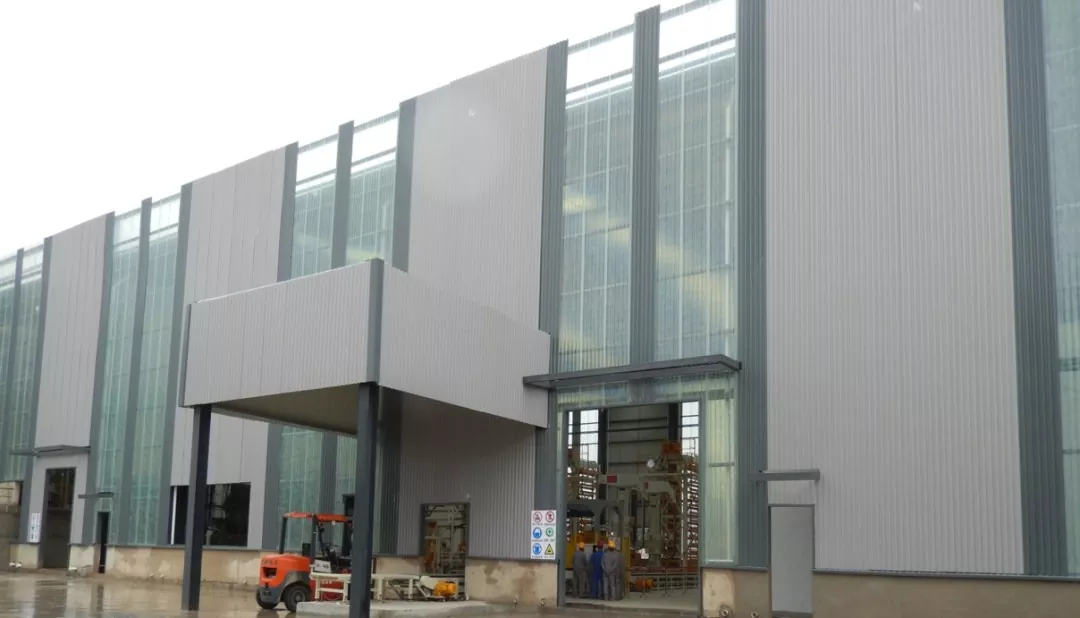

The modern concrete products factory

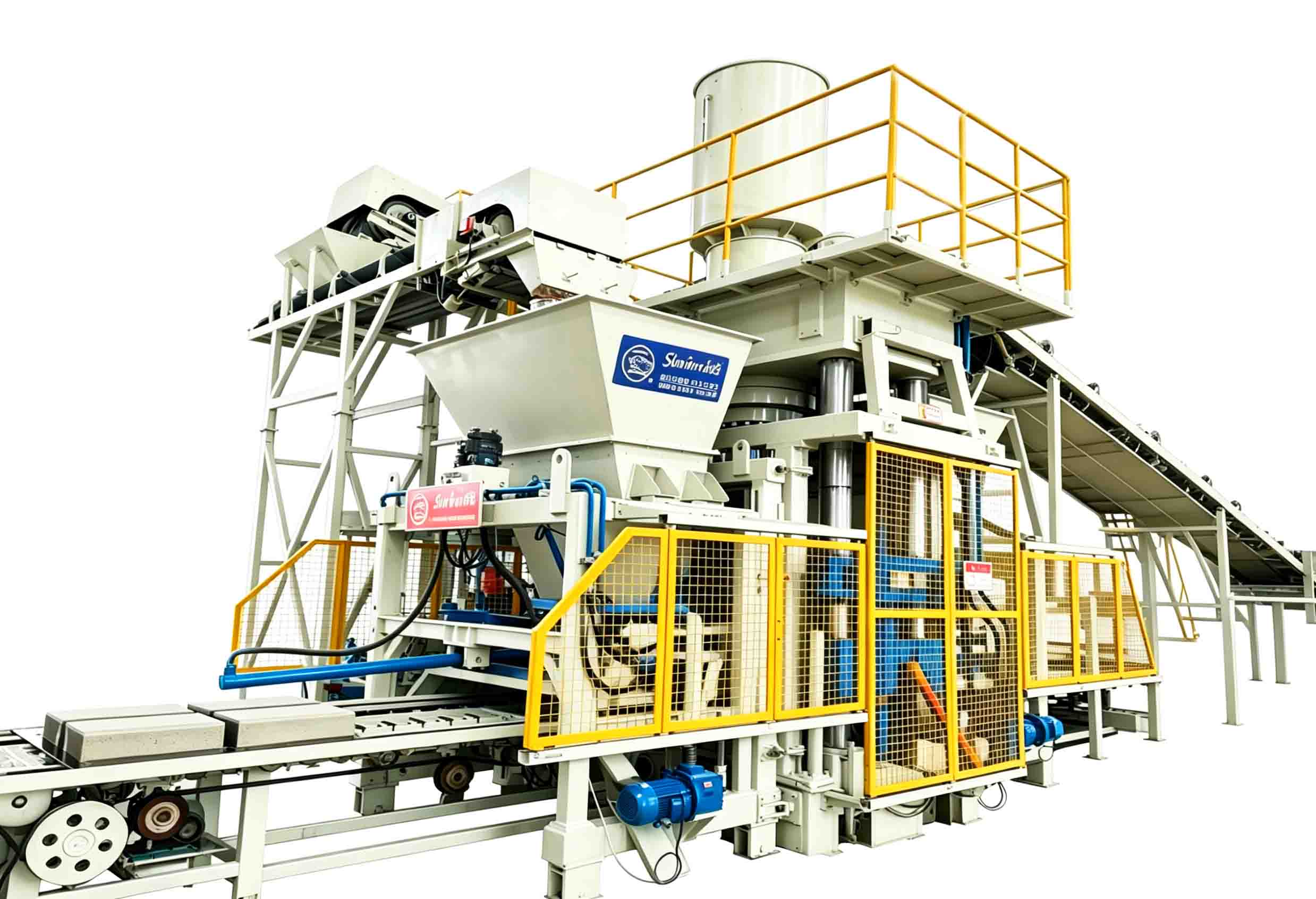

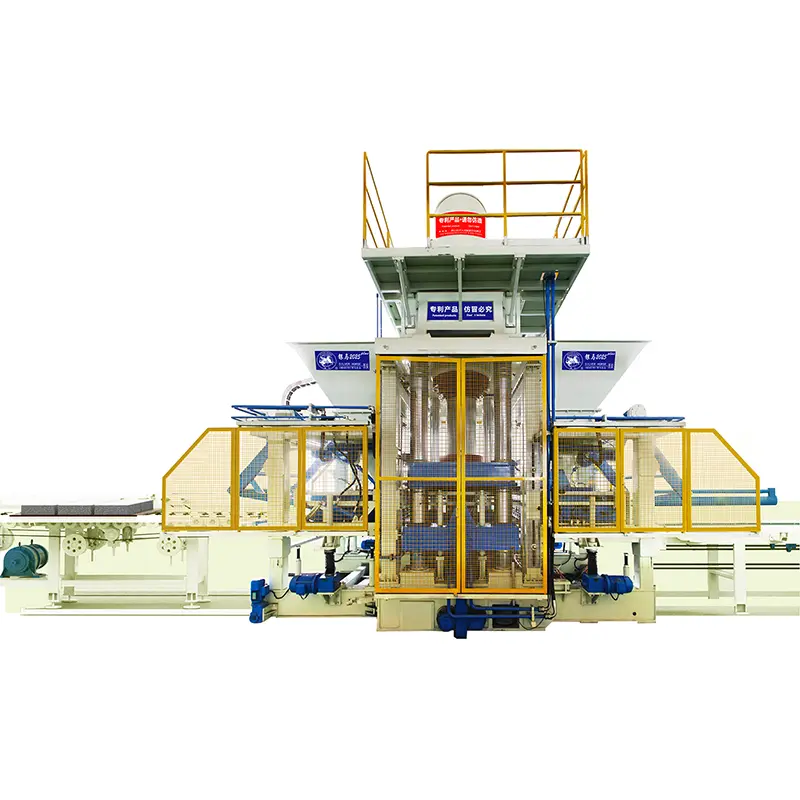

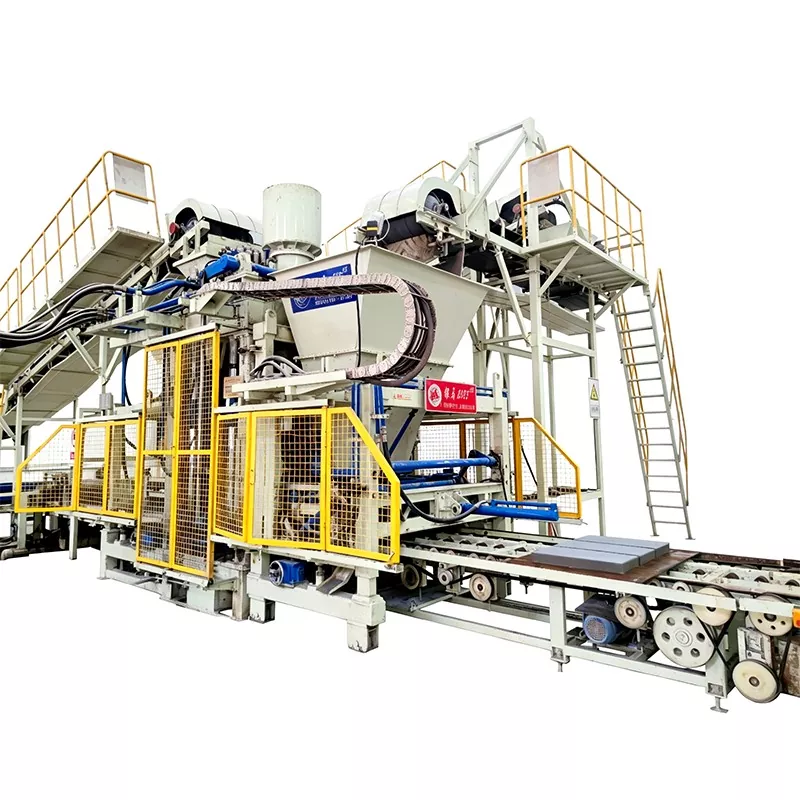

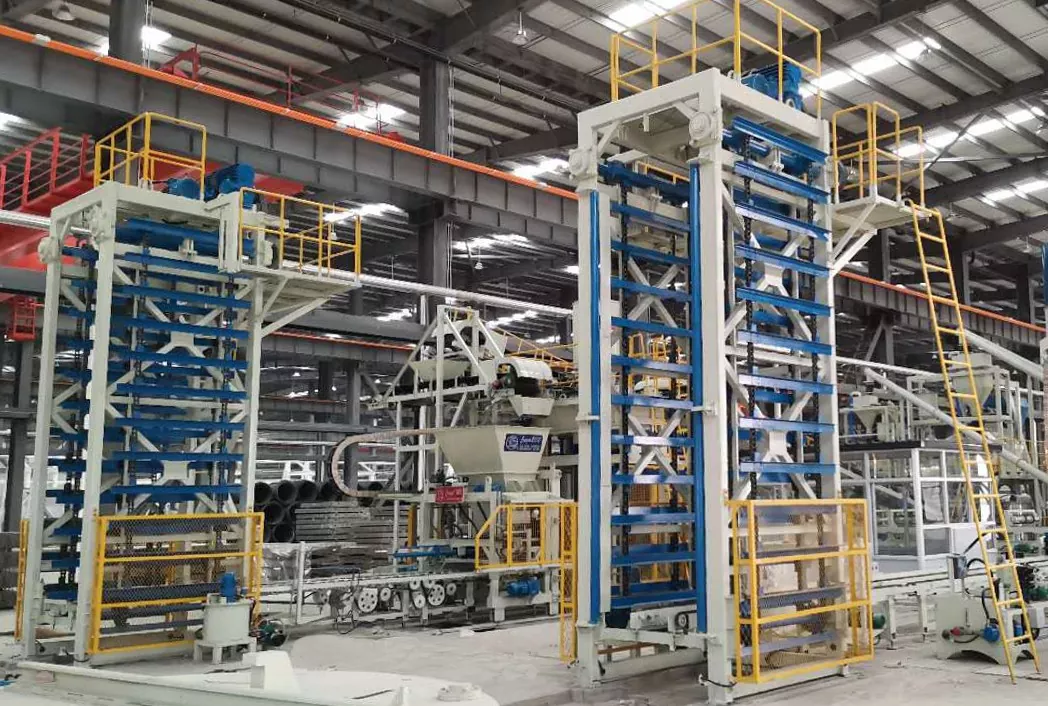

The multipurpose block/stone integrated machine and the production line

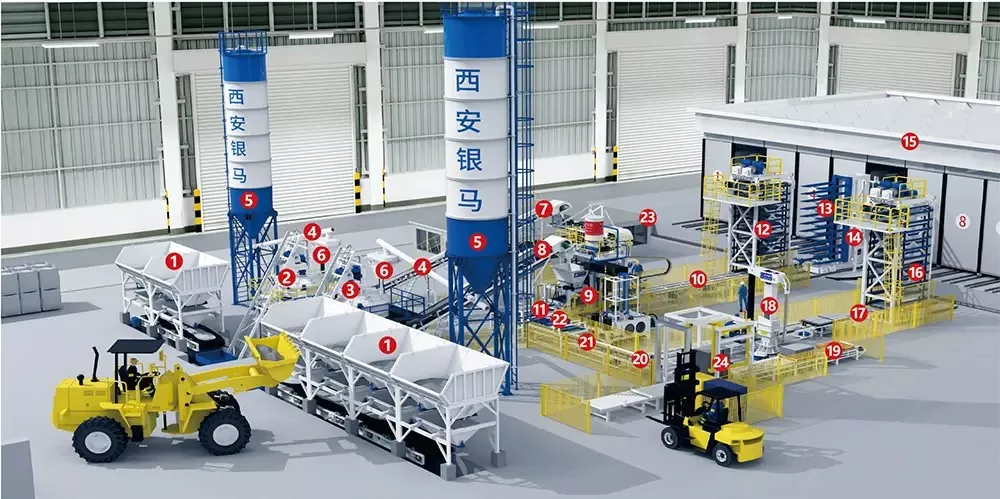

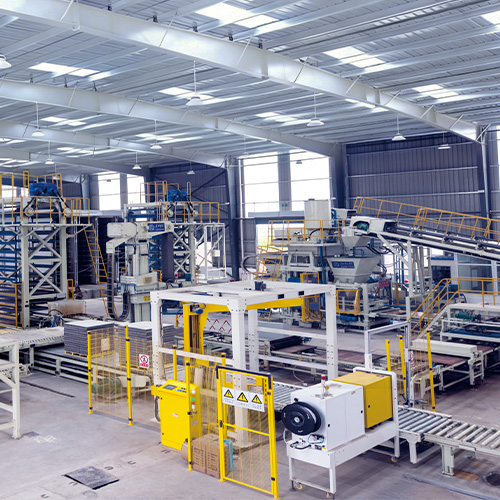

The arrangement of fully automatic multipurpose block/stone integrated machine and the production line
Parameters
| The forms of vibration |
High strength static pressure&servo vibration [Integrated the static pressure&vibrating and composite making] |
PC artificial stone 300x150x60mm |
24/28 pcs./pallet |
|
Pallet size(L x W) |
1400x1200mm 1400x1300mm |
Hollow block 390x190x190mm |
15/18 pcs./pallet |
|
The total power of the main machine |
about 200KW |
The boundary dimensions of the main machines |
(about)20000x3300x6100mm (about)20000x3700x6400mm |

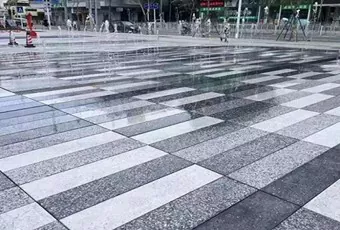

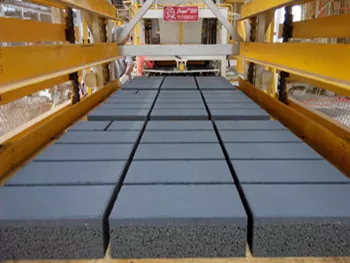

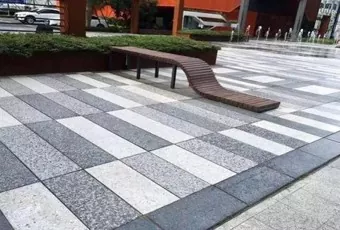

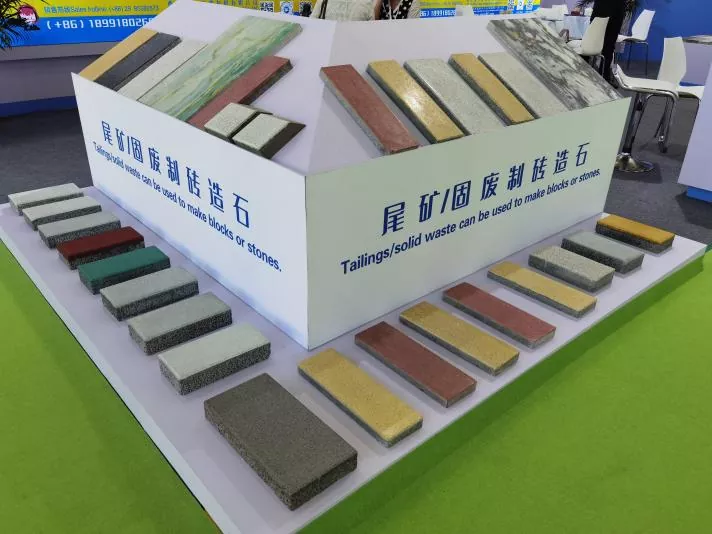

Display of products

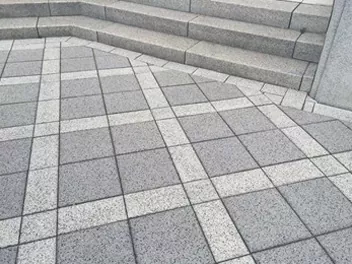

PC artificial stone
PC artificial stone

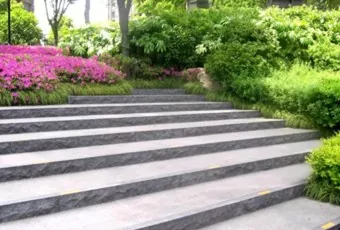

Artificial curstone
PC artificial stone
PC artificial stone

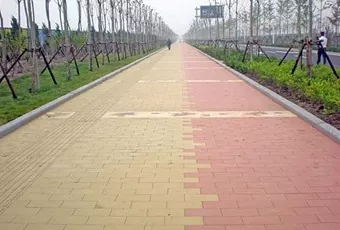

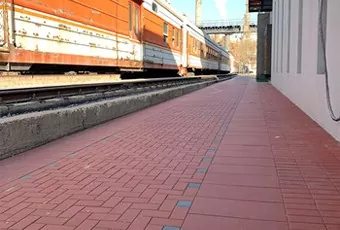

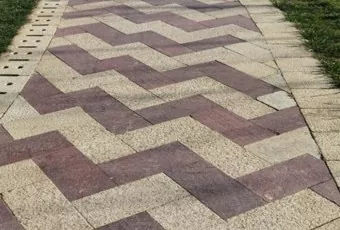

Paving stone
Lawn block
Lawn block

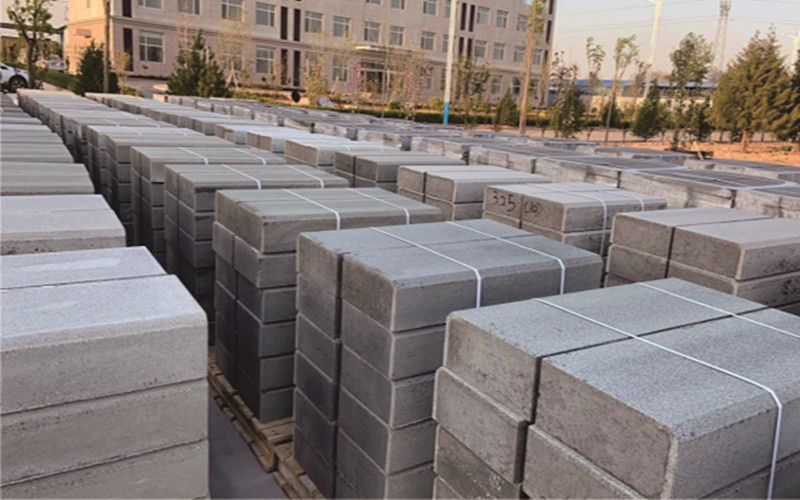

Hollow block
Hollow block
Application of products
