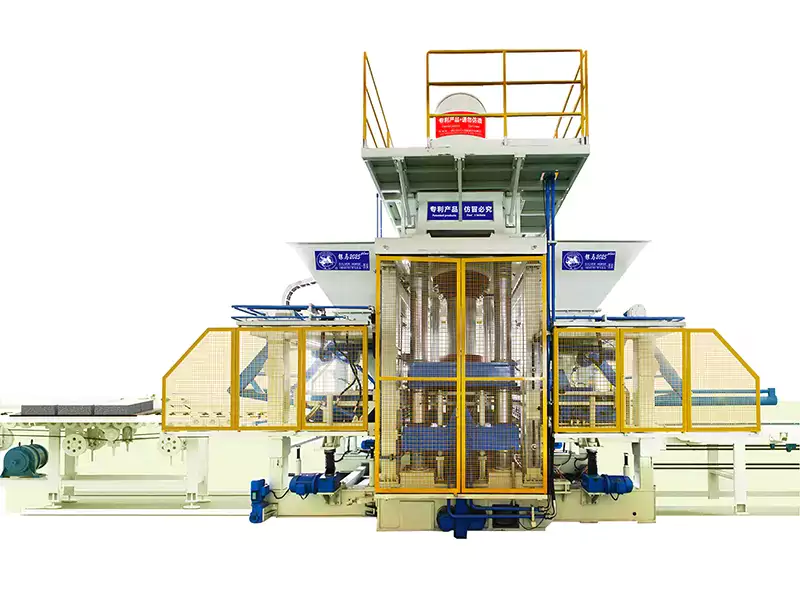

Block and Stone Integrated Machine
This block and stone integrated machine is independently developed by Xi'an Silver Horse and is a standard building material equipment made in China. It features a simple and compact body structure with a low failure rate, and is easy to operate. It can produce various types of materials such as artificial stones, hollow blocks and permeable bricks. Relying on the direct supply advantage from local factories, the equipment has great cost-performance and low maintenance cost, making it an ideal block making machine for building materials processing factories.
The block and stone integrated machine, through combining high-efficiency servo vibration with ultra-large tonnage static pressure, has developed a new production process and equipment of products, featuring "integrated the static pressure and vibration, high pressure and vibration and extrusion and fusion". Solid wastes and cementitious materials are fully fused and compacted to form high-strength products of artificial stones and other building materials.
Advantages
Integrated the static pressure and vibration, composite making
The composite technology of static pressure and vibration combines high-efficiency servo vibration with ultra-high static pressure to achieve the extrusion and melting of solid waste, as well as dense molding, innovatively producing products of high-strength artificial stone.
Multi-axis servo vibration system
The multi-axis servo vibration system achieves synchronous high-frequency excitation, enhancing molding efficiency, reducing vibration and noise, benefiting environmental protection and extending equipment life.

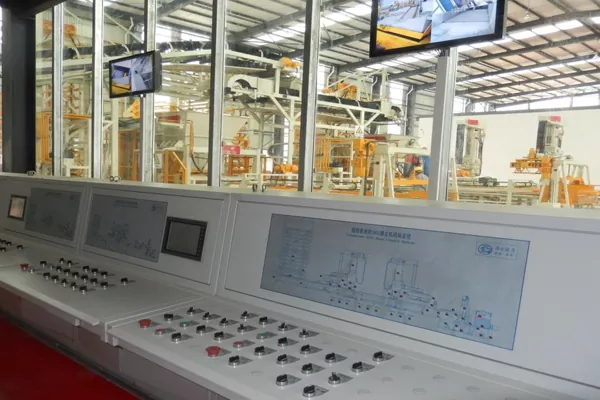

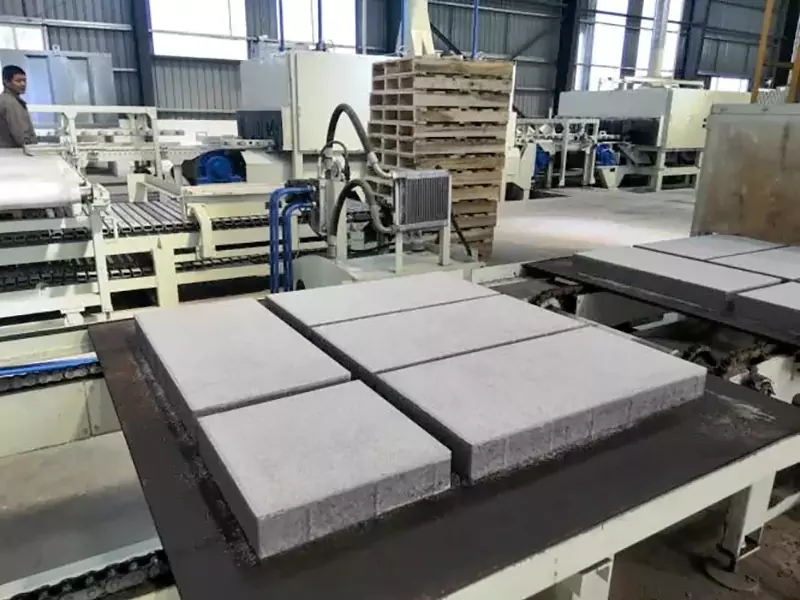

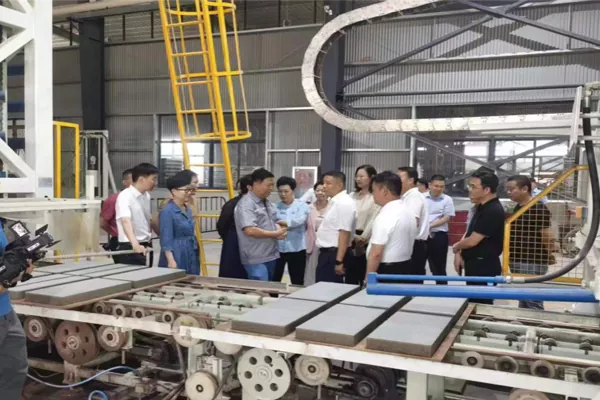

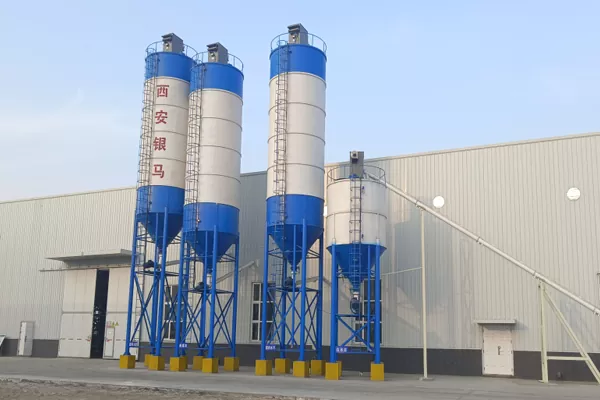

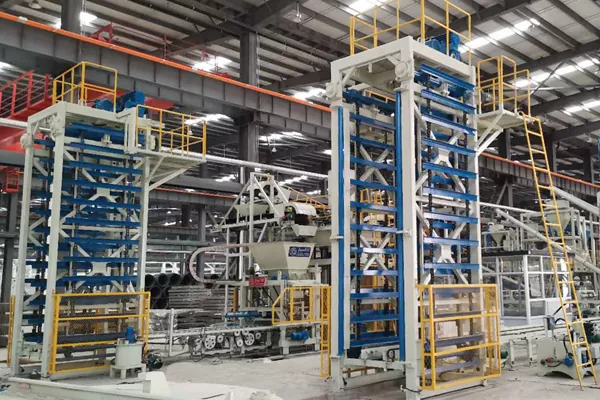

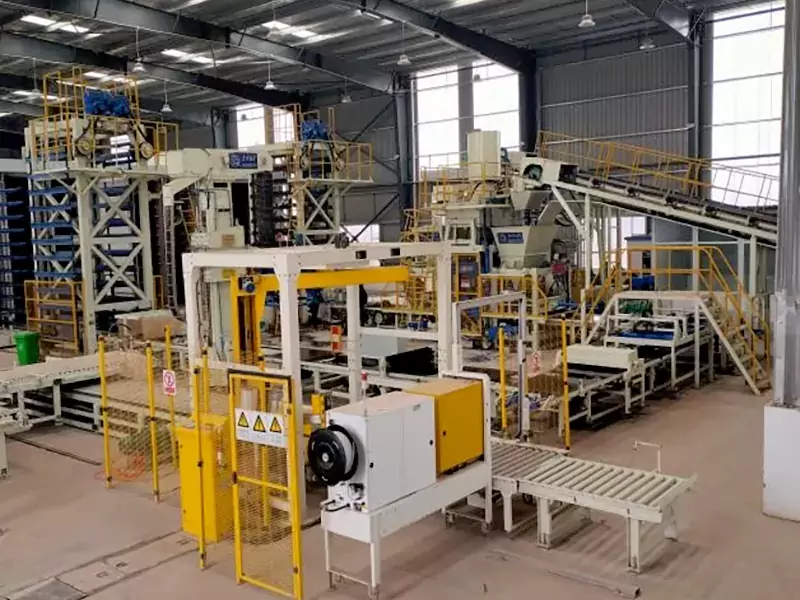

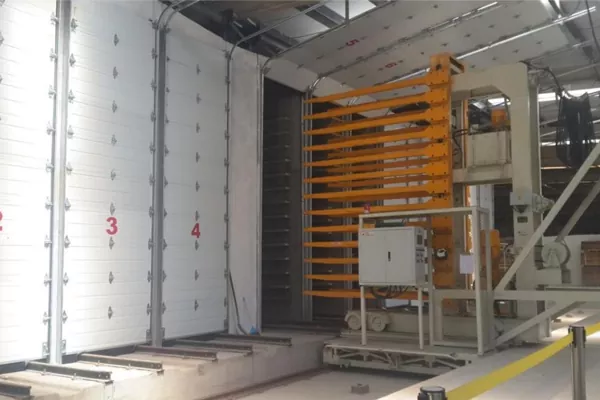

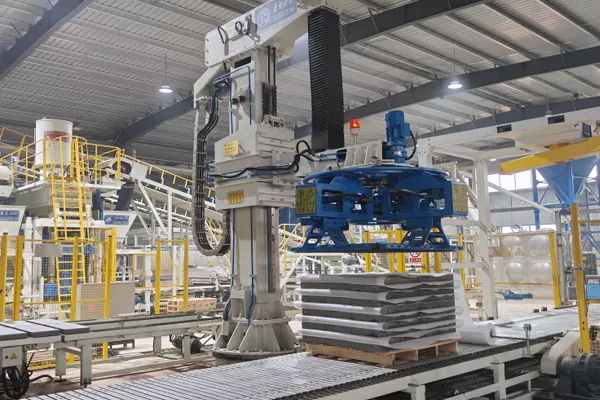

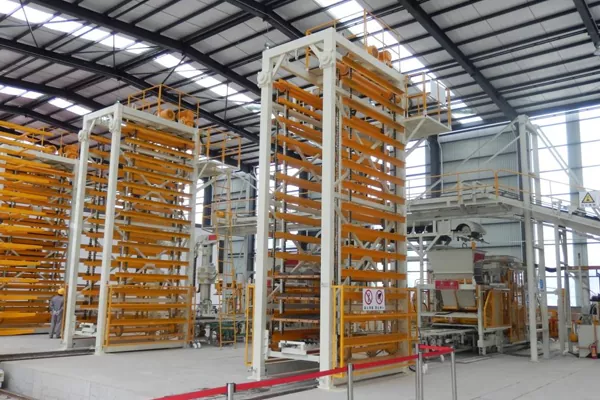

On-site display of block/stone integrated production line
Parameters
|
Technical Parameters |
|
|---|---|
|
The forms of vibration |
Static Pressure & Servo Vibration, Composite Making [High-pressure and vibration and extrusion and melting, the new technology] |
|
Rated Pressure of Static Pressure System |
about 1000 - 1400 tons |
|
Servo Vibration System |
Six-axis chip servo vibration [National patent technology for invention of Silver Horse] |
|
Pallet size |
1400×1200mm |
|

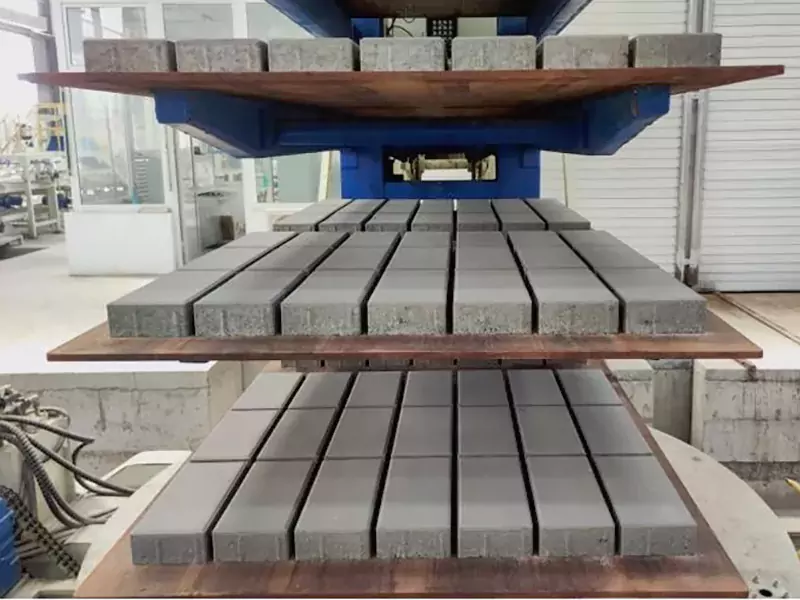

PC artificial stone |
300×150×60mm: 24 pieces/pallet |
|
Hourly output of PC artificial stone |
about 150 - 190 square meters |
|
High-efficiency Vibration Frequency of the Vibration System |
about 28g (g = 9.8m/s², national standard for high-quality products is 12g) |
|
Variable Frequency of the Core High-pressure Vibration System |
about 0 - 65Hz (intelligent servo, with a touchscreen interface for presetting variable frequency and amplitude) |
|
Range of Raw Materials |
Besides ordinary sand and stone, it is suitable for various industrial solid wastes, tailings, construction solid waste, and ultra-fine powder materials of 200 mesh and above. |
|
Molding Range |
High-strength artificial stone, paving stones, and wall bricks, etc. Among them,the strength of artificial stone can reach 100MPa. |
Display of products
Pc artifical stone
Pc artifical stone
Pc artifical stone
Pc artifical stone
Pc artifical stone

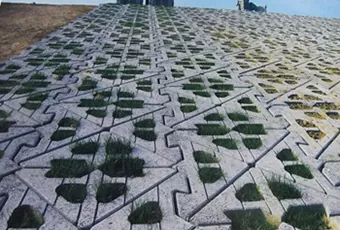

Slope-protection brick
Hollow block

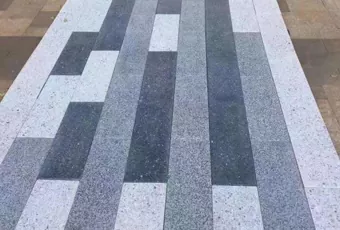

Paving stone

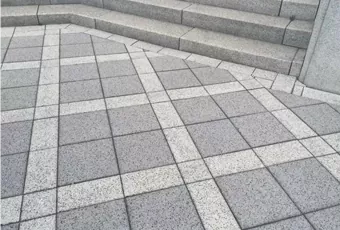

Paving brick
Lawn block

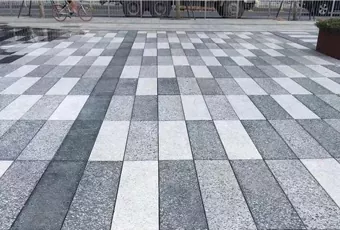

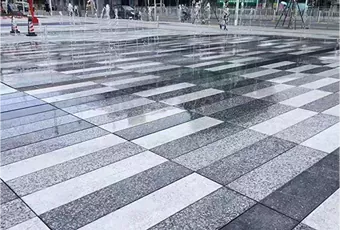

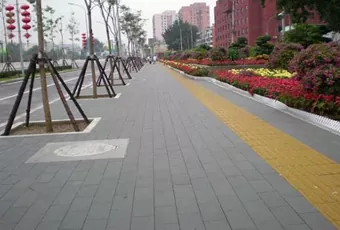

Application of products
Pc artifical stone
Pc artifical stone
Pc artifical stone
Pc artifical stone
Paving stone
Paving stone
Paving stone
Pc artifical stone
Why Choose Silver Horse Block and Stone Integrated Machine?
✅ High-density molding
✅ Lower cement consumption
✅ Reduce production cost
✅ Servo vibration saves energy
✅ High automation
✅ Fast mold changing
✅ Low maintenance
FAQ
1. What products can the Block and Stone Integrated Machine produce?
The machine can manufacture a wide variety of concrete products, including artificial stone, paving stones, hollow blocks, solid blocks, grass pavers, permeable bricks, retaining wall blocks, curb stones, and other customized concrete products by changing molds.
2. What raw materials can be used?
Suitable raw materials include cement, sand, crushed stone, fly ash, slag, recycled concrete, construction waste, tailings, stone powder, and other industrial solid waste materials.
3. Can one machine produce different products?
Yes. Different products can be produced simply by replacing the molds. One production line can manufacture multiple types of concrete products without replacing the main machine.
4. What is the production capacity?
Production capacity depends on the product size and mold configuration. For artificial stone production, the machine can produce approximately 150–190 square meters per hour. Capacity for blocks and pavers varies according to mold design.
5. What is servo vibration technology?
Servo vibration technology uses servo motors to precisely control vibration frequency and amplitude. Compared with traditional vibration systems, it offers better product density, lower noise, reduced energy consumption, and longer machine life.
6. What is the advantage of combining static pressure with vibration?
The combination of hydraulic static pressure and servo vibration creates denser concrete products with fewer internal voids, resulting in higher compressive strength, improved durability, and better surface quality.
7. Can recycled materials be used?
Yes. The machine is specially designed to utilize recycled construction waste, fly ash, slag, tailings, and other industrial by-products, helping manufacturers reduce material costs and improve sustainability.
