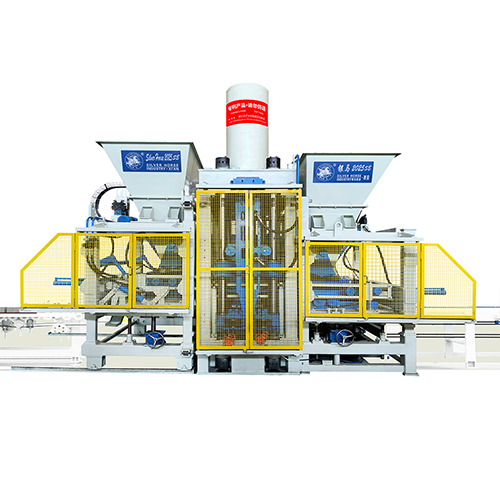

Block and Stone Integrated Equipment
Xi'an Silver Horse Block and Stone Integrated Equipment is customized for the overseas building materials industry. The entire machine has a long service life and is easy to install and debug. The equipment meets international export standards, comes with complete accessories and has a perfect after-sales service. It is the preferred equipment for procurement of foreign trade building materials machinery.

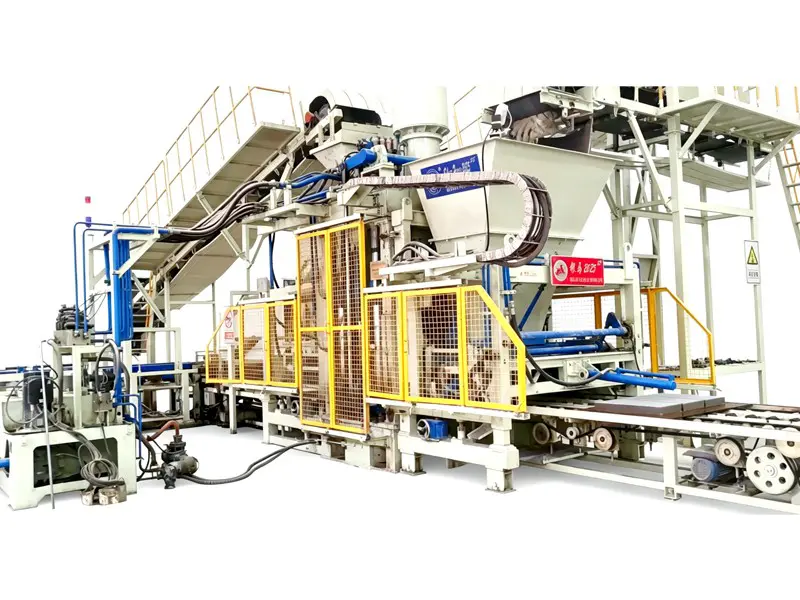

Silver Horse 20025SE Block and Stone Integrated Equipment features an innovative hydraulic system with pressure amplification technology, enabling high-pressure circuits using standard hydraulic systems. This effectively reduces the power requirement and operating energy consumption of the main hydraulic motor. This production line has an annual output of 500,000 square meters of paving stones (or 400,000 square meters of PC artificial stones), with a maximum molded product height of 300 mm. With its dual advantages of high efficiency and low energy consumption, a single production line can process a substantial amount of solid waste annually, delivering significant economic and environmental benefits to customers.
Equipment Advantages
Silver Horse 20025SE multipurpose block and stone integrated machine features intelligent control and computer operation, equipped with the intelligent remote monitoring system that connects the monitoring center to users. Integrated AI modules enable real-time data analysis. The production line includes robotic palletizing, requiring only six operators for the entire line. The equipment supports random signal analysis and remote diagnostics, ensuring convenient and time-saving maintenance, significantly reducing labor costs.

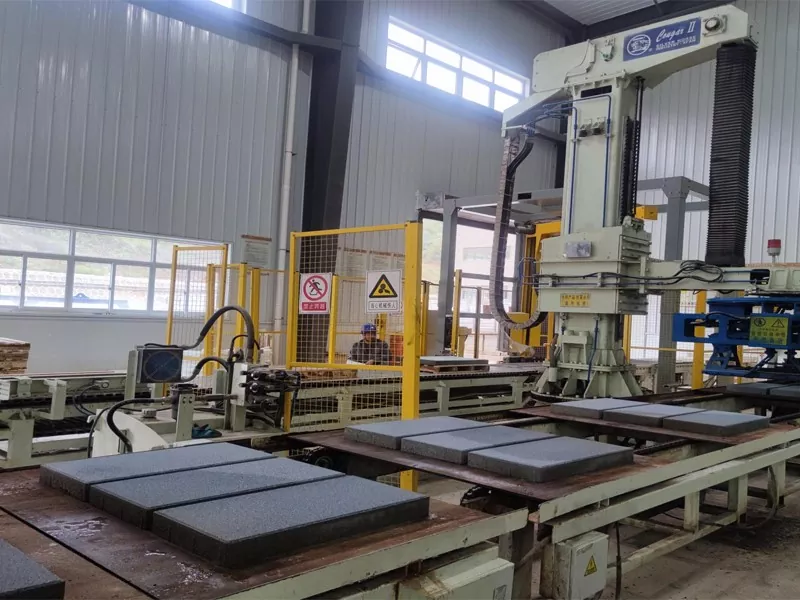

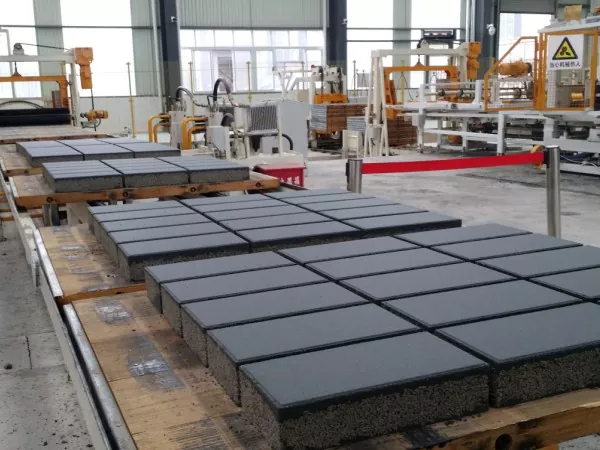

Customer Site of Silver Horse Company

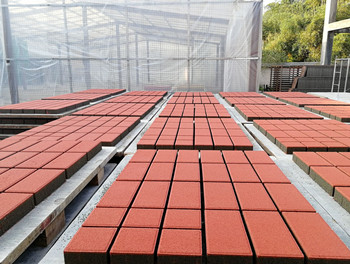

Display of products
Technical parameters of conventional brick:
|
Paving stone：198×98×60/80 (mm) |
||
|
◇Quantity of molding：30～40 pcs./pallet (The quantity of molding may vary depending on the type of materials.) ◇Cycle time：20～25S ◇Output：5700～7200 pcs./h (about 110～140㎡) |
|
|
|

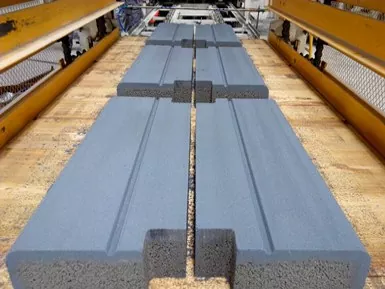

The color curbstone：500～750×120×300 (mm) |
||
|
◇Quantity of molding：2pcs./pallet ◇Cycle time：30～35S ◇Output：205～240 pcs./h |
|
|
|

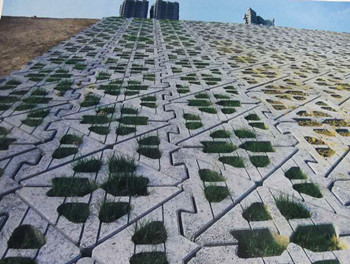

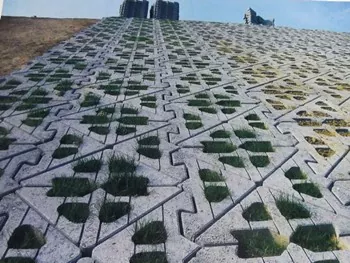

Slope-protection brick：406×305×102 (mm) |
||
|
◇Quantity of molding：4 pcs./pallet ◇Cycle time：20～25S ◇Output：570～720 pcs./h |
|
|
|
Solid brick：240×115×53(mm) |
||
|
◇Quantity of molding：44～56pcs./pallet (The quantity of molding may vary depending on the type of materials.) ◇Cycle time：16～18S ◇Output：8800～12000 pcs./h |
|
|
|
◆ |
Molding mode:dual-core system of static pressure & high-efficiency servo vibration 【National Patent Technology for Invention of Silver Horse Company】 |
|
|
◆ |
· Static pressure: not less than 200 tons |
|
|
◆ |
Average excitation acceleration: ≥ 20g (g=9.84m/s²; in the national standard, products with ≥12g are classified as high-quality grade.) |
|
|
◆ |
· Pallet size (Length × Width): 1250×900 mm |
|
|
◆ |
Installed power of main machine: about 80KW |
|
|
◆ |
· Molding range: capable of producing PC artificial stone, municipal bricks, wall bricks (load-bearing & non-load-bearing), special bricks (curbstones, slope protection stones), etc. |
|
|
◆ |
Note:the molding cycle of the products varies depending on the type of raw materials and the grade requirements of the products. |
|
Technical parameters of PC artificial stone:
|
PC artificial stone：400×200×60/80(mm) |

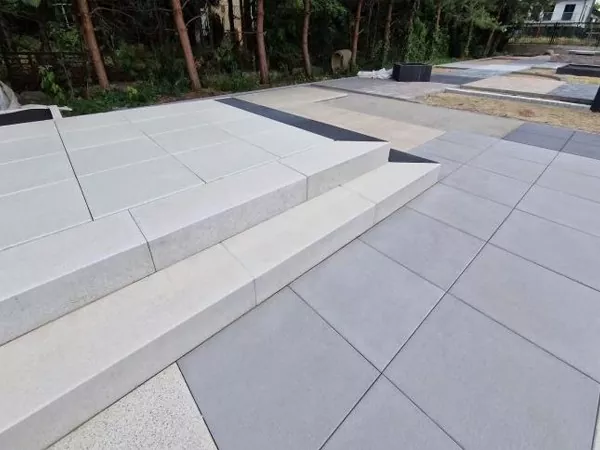

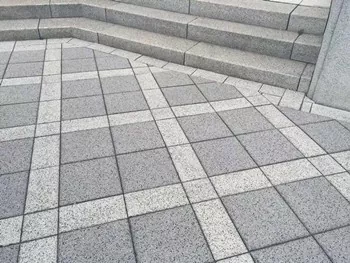

Product photos |
|
|
◇ Quantity of molding：6 pcs./pallet ◇ Cycle time：20～25S ◇ Output：860～1080 pcs./h（about 70～85㎡） |
|
|
|
PC artificial stone：300×150×60/80(mm) |
||
|
◇ Quantity of molding：12 pcs./pallet ◇ Cycle time：20～25S ◇ Output：1720～2160 pcs./h（about 80～100㎡） |
|
|
|
PC artificial stone：300×300×60/80(mm) |
||
|
◇ Quantity of molding：6 pcs./pallet ◇ Cycle time：20～25S ◇ Output：860～1080 pcs./h（about 80～100㎡） |
|
|
|
PC artificial stone：600×300×60/80(mm) |
||
|
◇ Quantity of molding：3 pcs./pallet ◇ Cycle time：20～25S ◇ Output：430～540 pcs./h（about 80～100㎡） |
|
|
|
PC artificial curbstone: 500～750×120×350(mm) |
||
|
◇ Quantity of molding：2 pcs./pallet ◇ Cycle time：30～35S ◇ Output：205～240 pcs./h |
|
|
|
◆ |
Molding mode:dual-core system of static pressure & high-efficiency servo vibration 【National Patent Technology for Invention of Silver Horse Company 】 |
|
|
◆ |
· Static pressure: not less than 200t |
|
|
◆ |
· Average vibration excitation acceleration: ≥ 20g (g=9.84m/s²; in the national standard, products with ≥12g are classified as high-quality grade.) |
|
|
◆ |
· Pallet size (Length × Width): 1250×900 mm |
|
|
◆ |
· Installed power of main machine: about 80KW |
|
|
◆ |
· Molding range: capable of producing PC artificial stone, municipal bricks, wall bricks (load-bearing & non-load-bearing), special bricks (curb stones, slope protection stones), etc. |
|
|
◆ |
Note:the molding cycle of the products varies with the type of raw materials and the grade requirements of the products. |
|

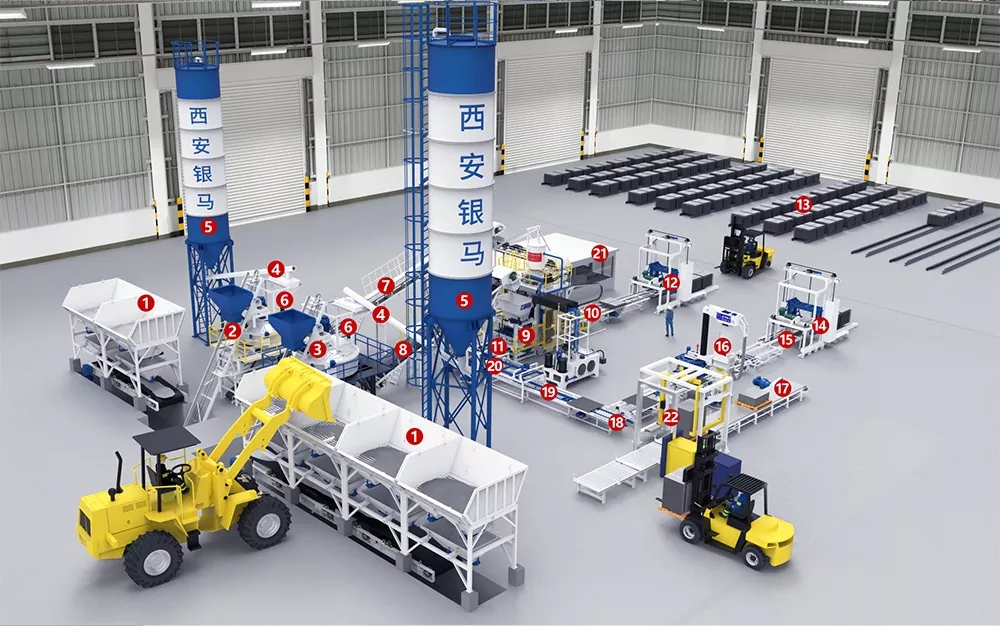

The arrangement of automatic block and stone making production line with open cycle
