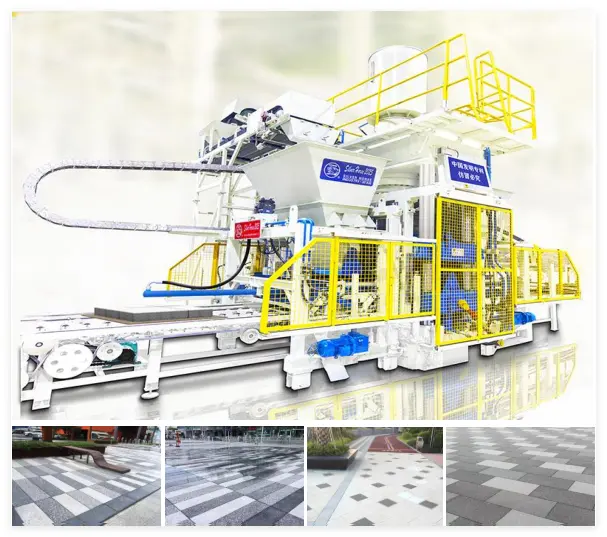

Integrated Block and Stone Production Machine
Model:2025 Standard
Xi'an Silver Horse Industrial Development Co., Ltd. is not only one of the largest suppliers in the field of block making machines in China, but also a national-level high-tech enterprise in green building equipment. The new process of "the combination of pressure and vibration, press up and vibrate down" has been adapted by the 2025 Integrated Block and Stone Production Machine, enabling easy production of various blocks and artificial stones to meet the diverse and high-end market needs.
The Silver Horse 2025 Integrated Block and Stone Production Machine is a disruptive innovation in the field of concrete and stone machinery. Developed and manufactured by Xi'an Silver Horse Industrial Development Co., Ltd., a national high-tech enterprise in China, this equipment integrates pressure, vibration, extrusion, and fusion technologies to produce both traditional concrete blocks and high-value artificial stones.
Key Benefits
Two-in-One Functionality: Produces bricks (blocks, paving stones) and artificial stones (PC stones, curbstones) with a single machine, reducing investment costs.
Innovative Technology: Uses “high-pressure plus vibration” combined with extrusion fusion, achieving dense, durable products.
High Return on Investment: Serves two markets simultaneously, increasing production adaptability and reducing investment risk.
Global Compliance & Recognition: Included in the 2023 Catalogue of Advanced Applied Technologies and Equipment for the Comprehensive Utilization of National Industrial Resources.
Display of the seven major systems

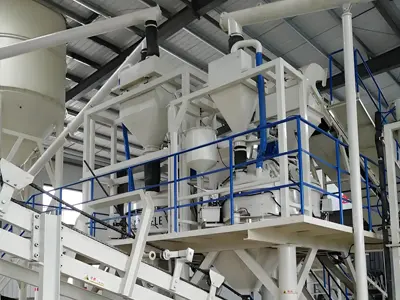

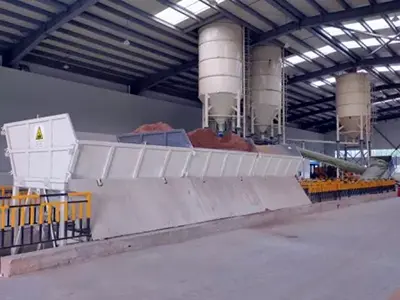

Materials batching system
Materials mixing system

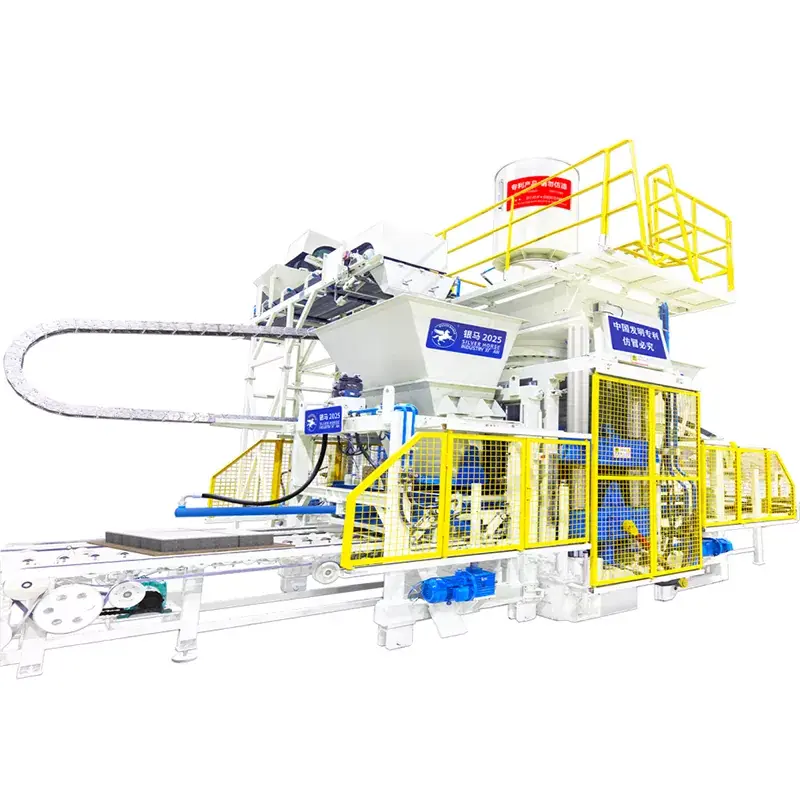

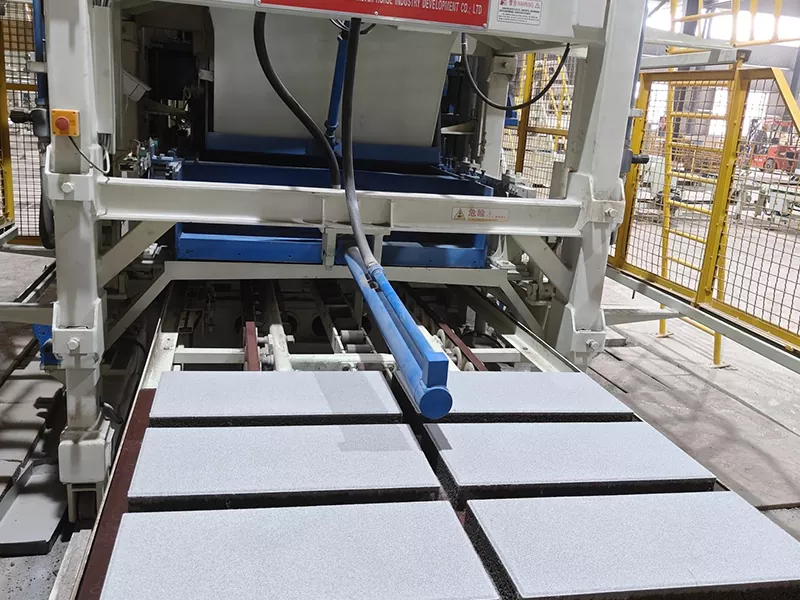

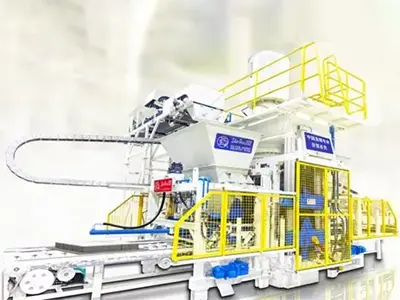

Main machine

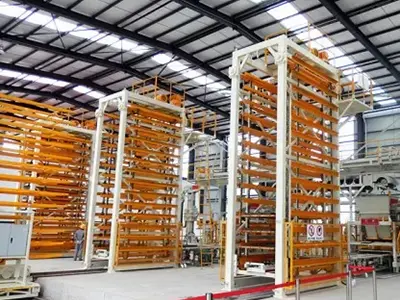

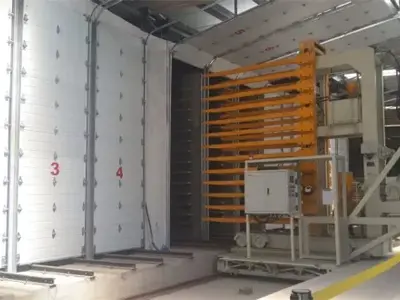

Ascending/Descending slab system

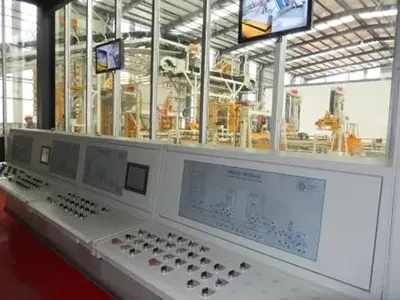

PLC control syetem of the Production line

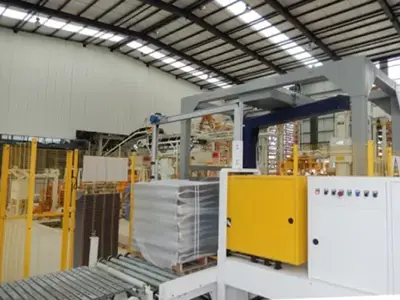

Packing System
Kiln car transferring system
|
Technical parameters list for Silver Horse 2025 multipurpose block/stone integrated machine and the production line |
|
|
Parameters |
Technical note |
|
Pallet size |
1350 × 1150（mm） |
|
Static pressure |
about 600t |
|
The forms of vibration |
Adjustable frequency and scope Compatibility of the vibration and the static pressure |
|
Engine |
The servo driven mode and the variable rotating magnetic field |
|
The total power of the production line |
About 540KW |
|
The area of the manufacturing shop |
About 4000~5000㎡ |
|
Model |
Product size (mm) |
Pcs./Pallet |
Pcs./Hour |
|
Solid brick |
240*115*53 |
72 |
10000-14000 |
|
Paving stone |
198*198*60 |
55 |
5400-9900 |
|
Hollow block |
390*190*190 |
12 |
1900-2700 |
|
PC artificial stone |
300*150*60 |
18 |
1900-2200 |
Note: One set of equipment can produce all brick shapes, just by changing the molds.

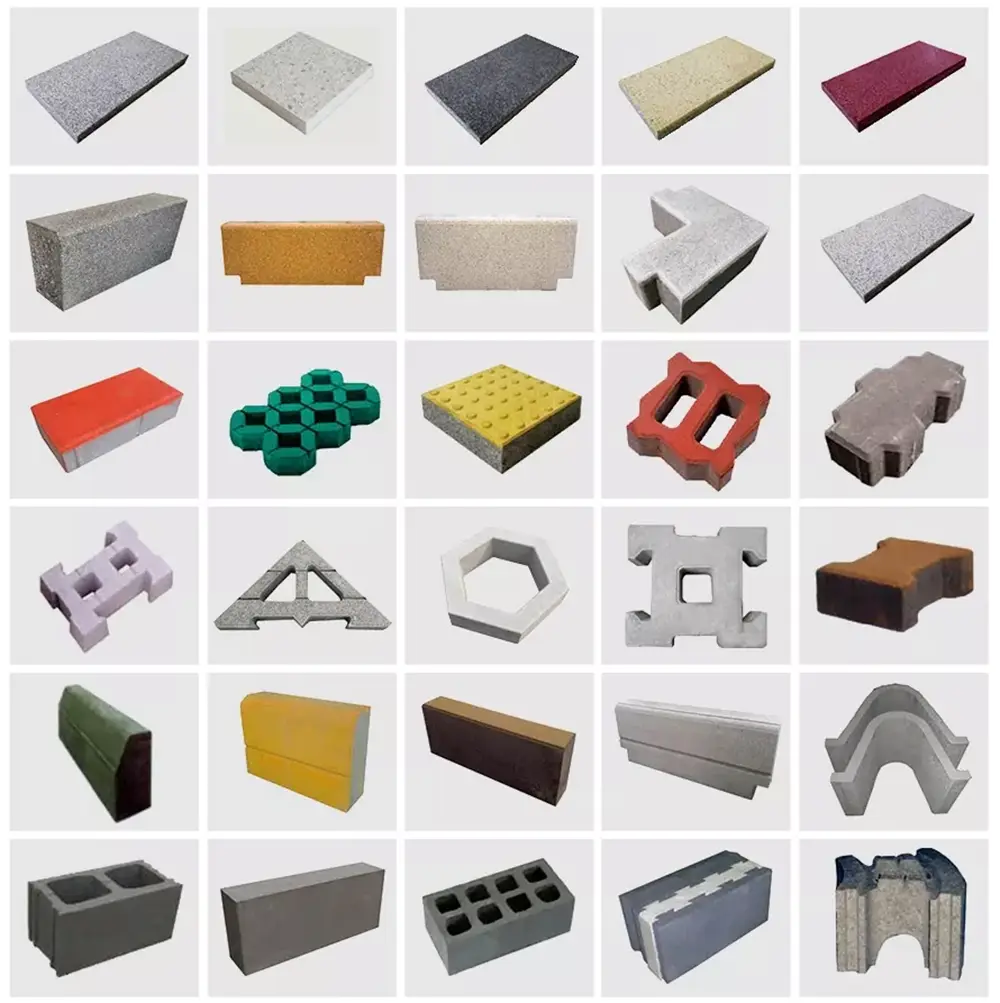

Display of products
Production Line

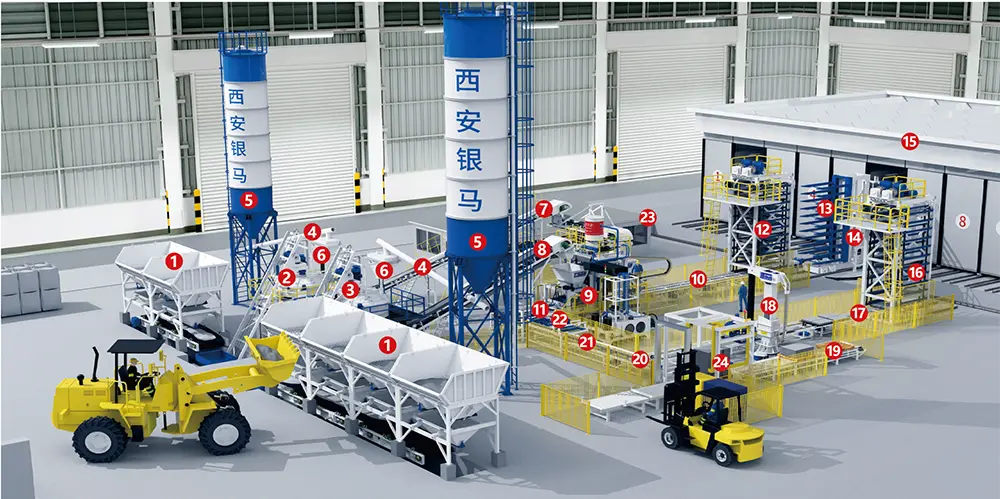

The arrangement of fully automatic block/stone making production line
Application

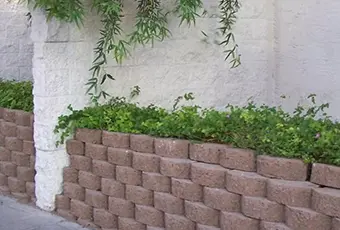

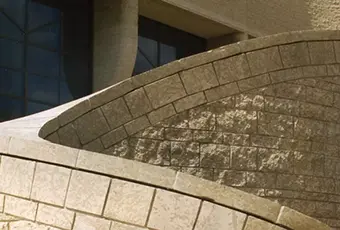

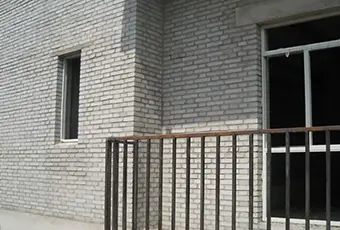

Building Wall Material Series
Flower Bed Brick
Split Brick
Solid Brick

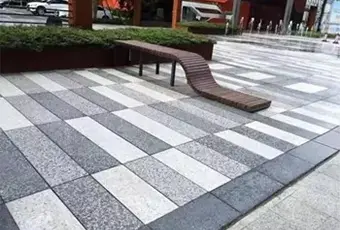

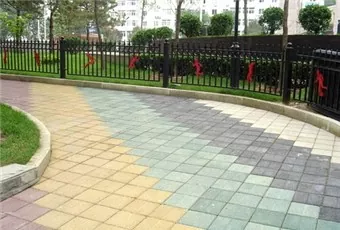

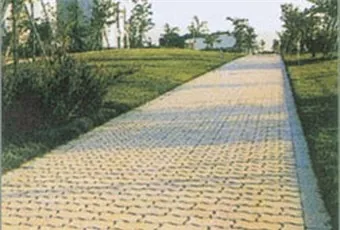

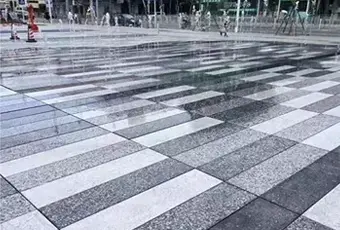

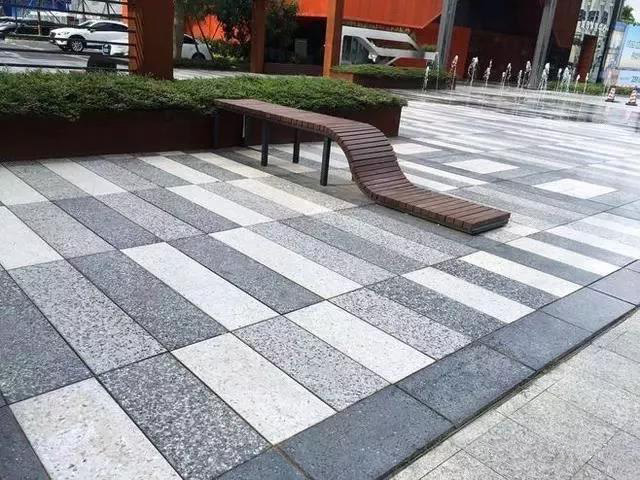

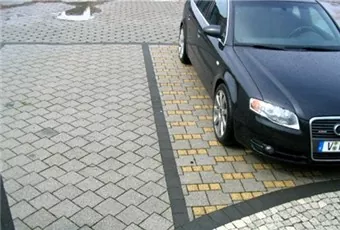

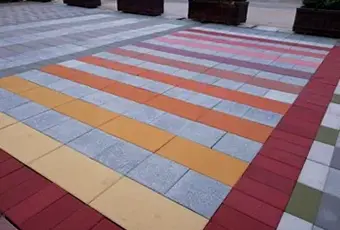

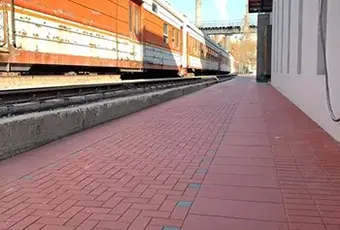

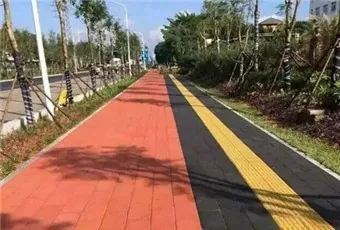

Paving Stone Series
Permeable Brick
Permeable Brick
Permeable Brick

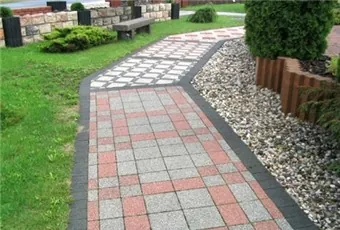

Paving Stone

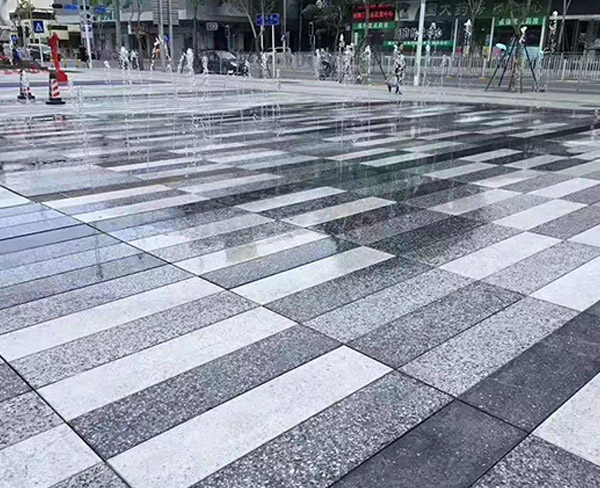

PC artificial stone
PC artificial stone
Permeable Brick
Paving Stone

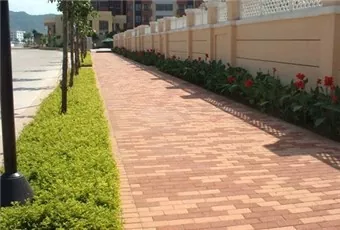

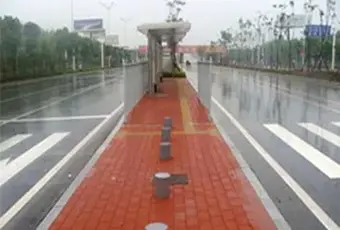

Pavement Brick

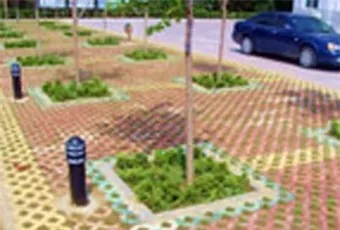

Grass Brick
Pavement Brick
Pavement Brick

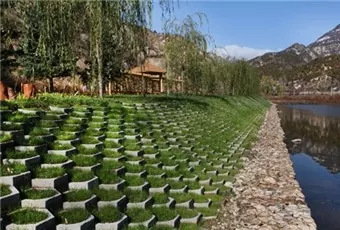

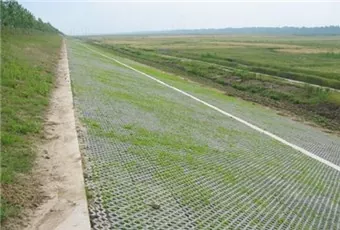

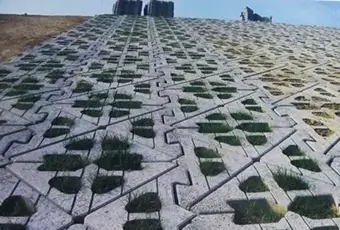

Slope-protect Brick Series

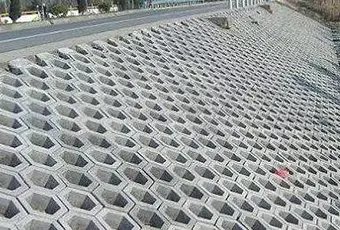

Slope-protect Brick
Slope-protect Brick
Slope-protect Brick
Slope-protect Brick
Why Choose Silver Horse?
1. Proven Experience
Over 30 years of manufacturing expertise and more than 500 large-scale production lines installed worldwide.
2. High-Quality Engineering
ISO9001 certified, CE compliant, with multiple national patents and awards for technology innovation.
3. Comprehensive Support
From factory setup and equipment installation to brick-making process guidance and technical support.
4. Global Market Trust
Serving international clients in the Middle East, Southeast Asia, and Central Asia, as well as major Chinese construction enterprises.
