QFT9-16 Automatic Concrete Block Making Machine
Xi'an Silver Horse Industrial Development Co., Ltd. presents the QFT9-16 Automatic Concrete Block Making Machine, a highly efficient and green solution for concrete block production. As a leading China manufacturer and supplier, we offer advanced machinery that integrates intelligent technology for sustainable production, turning construction waste into eco-friendly concrete products.
The QFT9-16 Automatic Concrete Block Making Machine is equipped with an upgraded servo vibration system, using the patented four-axis chip technology of Silver Horse. This enables the bricks to have higher density and better quality, while reducing noise and saving energy. The machine features a PLC intelligent control system and human-machine interface for easy operation, supporting real-time signal analysis and remote fault diagnosis, with stable operation and a high degree of automation.
This model can produce a series of environmental building materials, including ecological permeable bricks, slope protection bricks, municipal bricks, curbstones, lawn blocks and wall bricks, as well as various non-standard and customized products, fully meeting the needs of customer.
Features and Functions
High Efficiency: This machine employs a fully automated system, increasing production capacity while reducing labor costs.
Environmentally Friendly: The QFT9-16 Automatic Concrete Block Making Machine is designed with environmental sustainability in mind, incorporating recycled materials such as construction waste and tailings into the production process to reduce the consumption of natural resources.
Durable: The machine features a robust structure and advanced technology, ensuring long-term stable operation and reliable performance.
Versatile Applications: It can produce a variety of concrete products, including blocks, paving bricks, and eco-bricks, meeting diverse market demands.
Easy Operation: The machine boasts a user-friendly interface and automatic control system, minimizing operational errors and simplifying maintenance.
Display of products

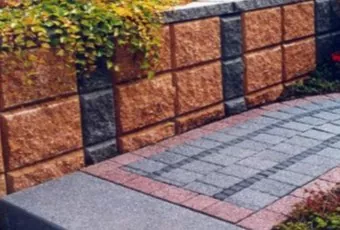

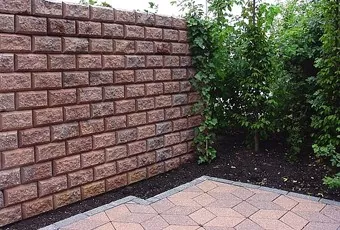

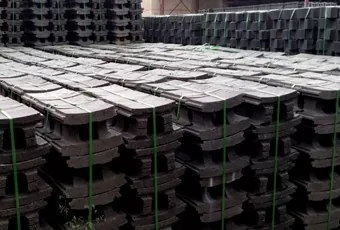

Brick products

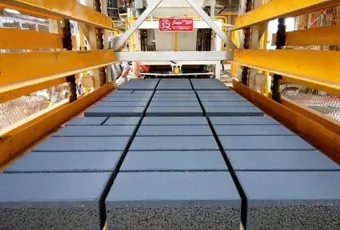

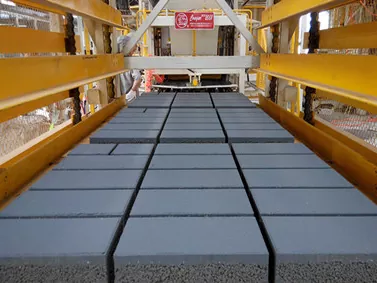

Permeable brick

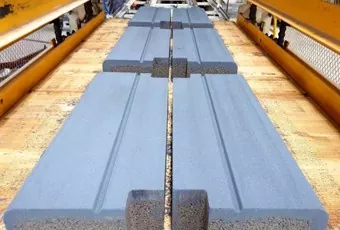

Ecological curbstone

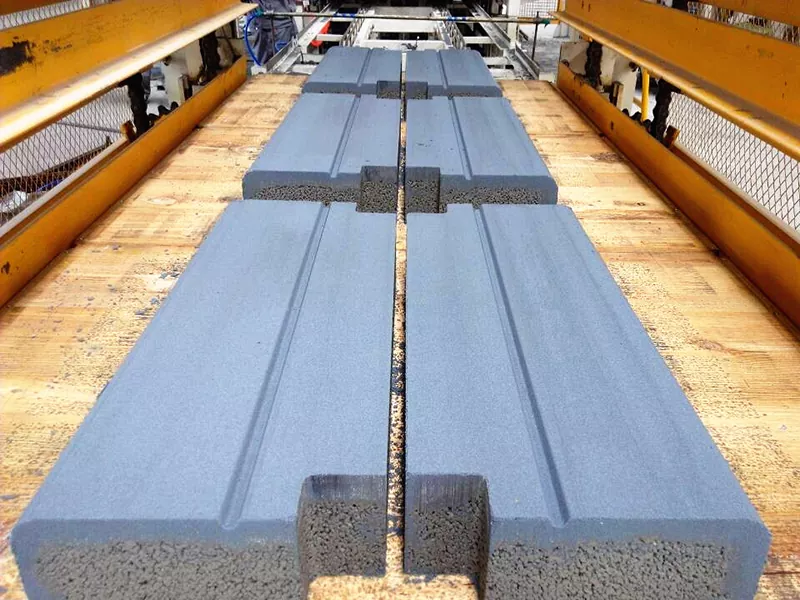

The color curbstone

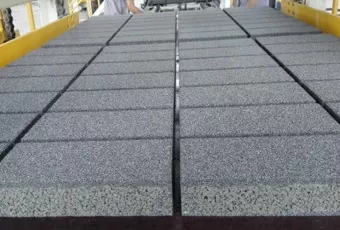

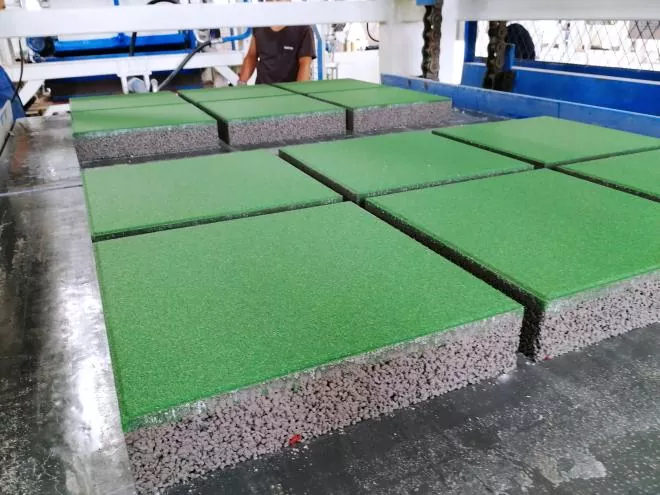

Ecological permeable brick
Ecological permeable brick
Ecological permeable brick

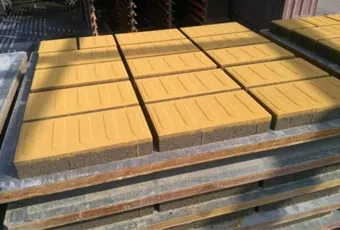

Paving stone
Permeable brick
Insulating block
Solid brick
Lawn block
Paving stone
Porous block

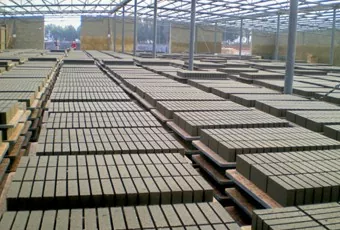

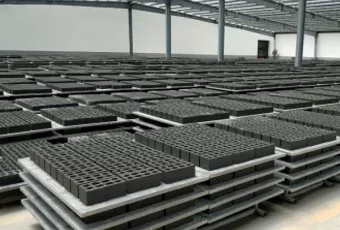

Hollow block

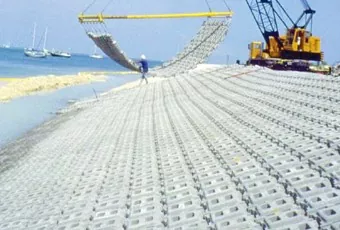

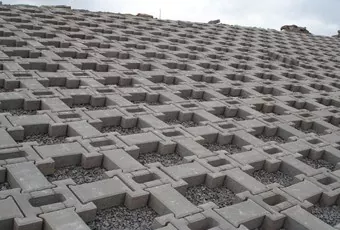

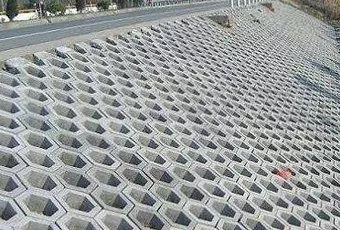

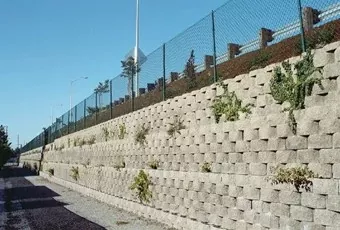

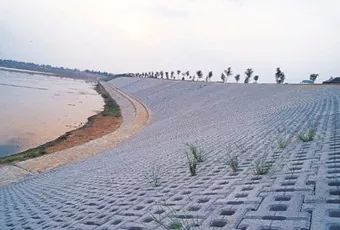

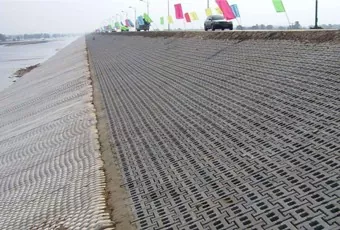

Slope-protection brick

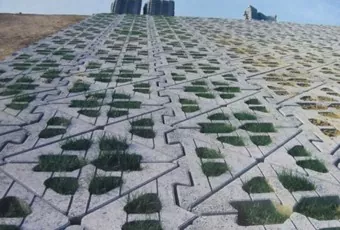

Slope-protection brick
The production line of the customer site

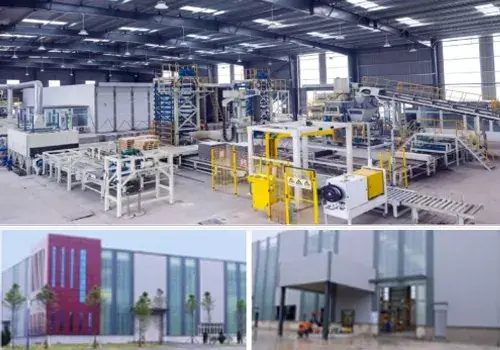

The modern concrete products factory

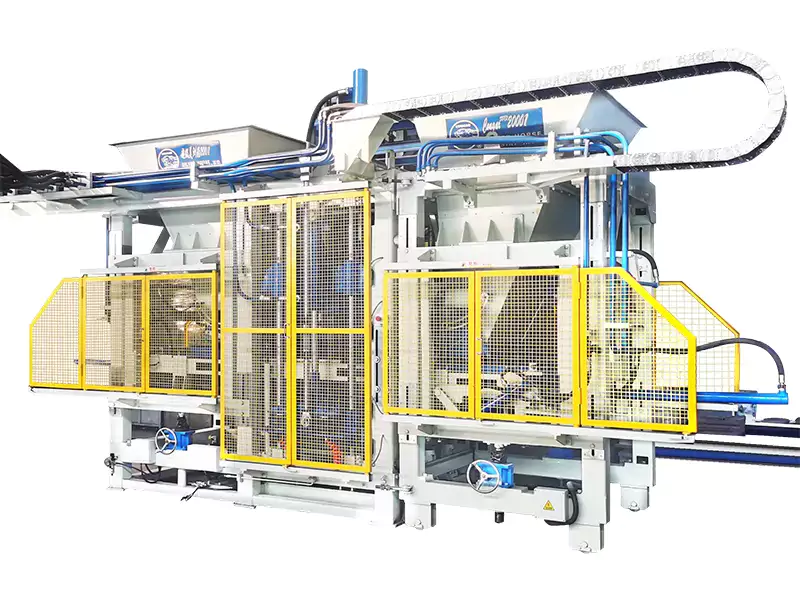

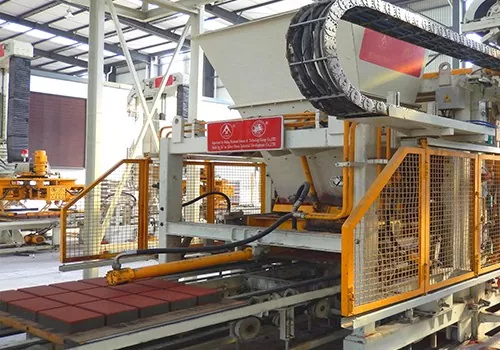

QFT9-16 block making machine

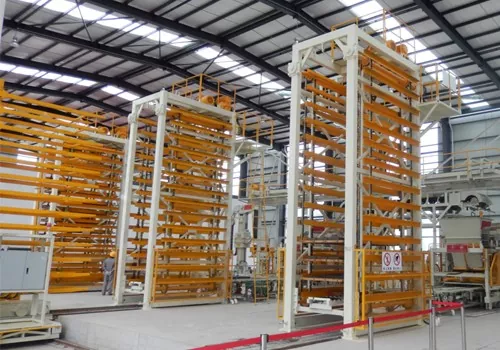

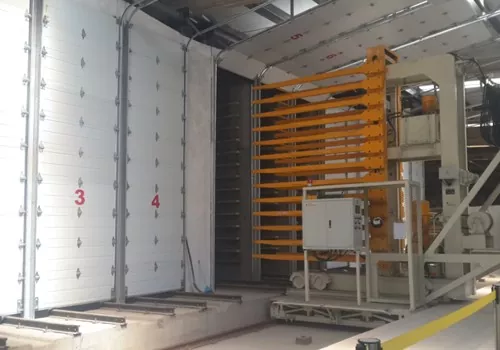

Ascending /descending slab system
Kiln car transferring system

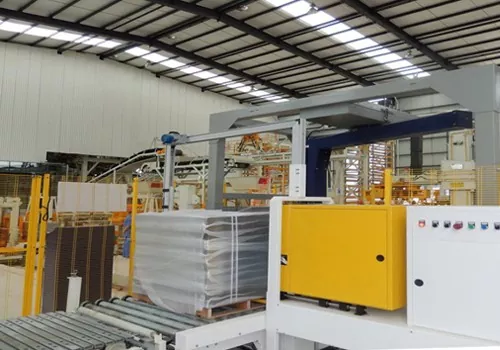

The packaging system

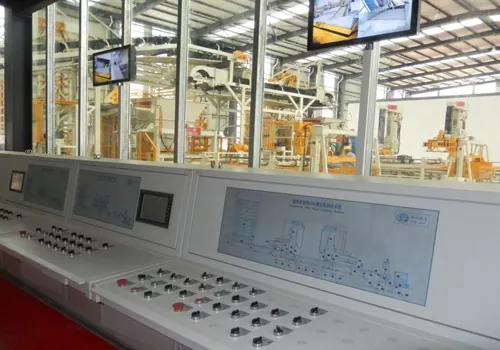

Production line PLC control system

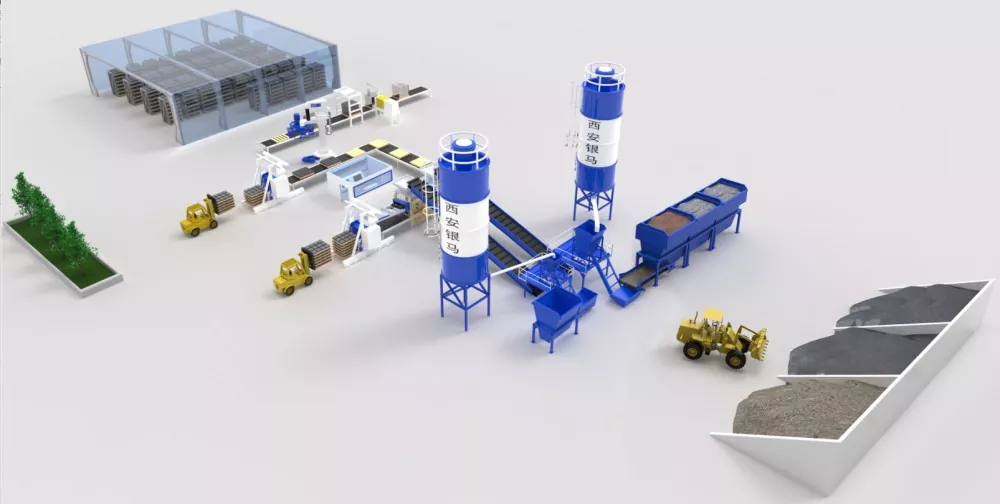

3D Layout Plans

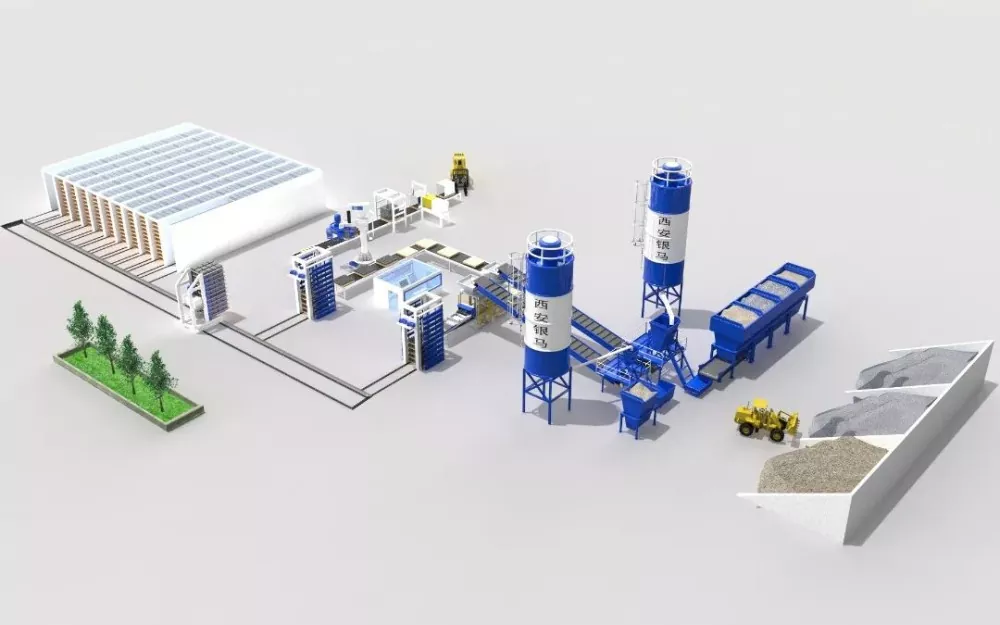

The arrangement of fully automatic block making machine and the production line

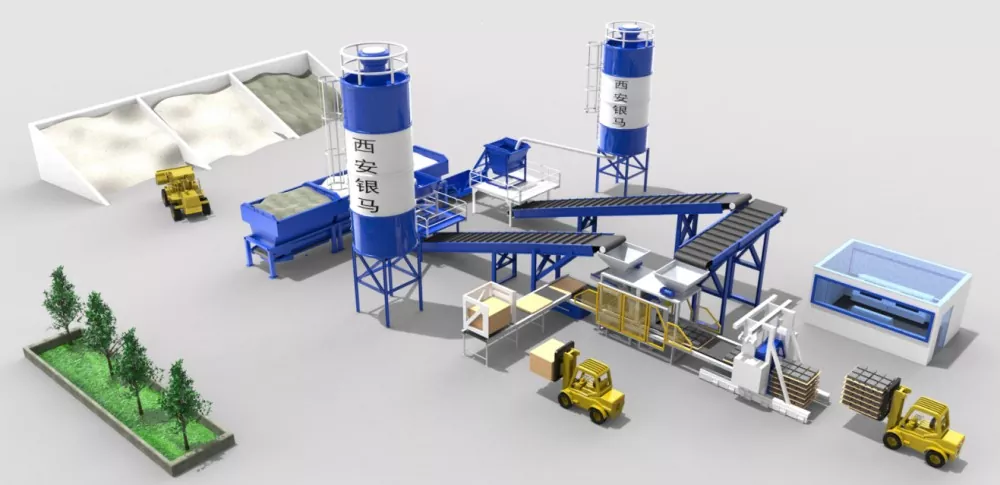

The arrangement of automatic block making machine and the production line with open cycle
The arrangement of automatic block making machine and the production line
Technical parameters list for the production line
|
Technical parameters list for QFT9-16 Automatic Concrete Block Making Machine |
|
|
Parameters |
Technical note |
|
Pallet size |
1250 × 900（mm） |
|
The acceleration of exciting force |
About 28 【12g of high quality products】 |
|
The forms of vibration |
Adjustable frequency and scope |
|
Engine |
The servo driven mode and the variable rotating magnetic field |
|
The total power of the production line |
About 320KW |
|
The area of the manufacturing shop |
About 3600㎡ |
List of production capacity
|
List of production capacity of QFT9-16 Automatic Concrete Block Making Machine |
||
|
Model |
Specifications/Forming Blocks |
Output/hour |
|
Paving stone |
200×100×60(mm) 40 bricks/plate |
About 110～140㎡ |
|
Ecological slope-protection brick |
406×305×102(mm) 4 bricks/plate |
About 570～720 blocks |
|
The color curbstone |
500~750×120×300(mm) 2 bricks/plate |
About 205～240 blocks |
|
Solid brick |
240×115×53（mm） 56 pieces/plate |
About 11000～12000pieces |
|
Note: All kinds of different blocks can be produced by the equipment, only change the mould. |
||
Kindly reminder: Owing to different quality requirements of materials and products, Silver Horse Company has the right to optimize the design. The above parameters are for reference only.
Certifications and Qualifications
● ISO9001 Quality Management System Certificate
● EU CE Certificate
● Numerous Patents for innovative technologies in block production
● Awarded Science and Technology Progress Awards for its contributions to the industry
FAQ
Q1: What makes the QFT9-16 Automatic Concrete Block Making Machine more efficient than traditional block-making machines?
A1: The Machine is highly automated, reducing manual labor while ensuring consistent production quality. Its energy-efficient design and the ability to use recycled materials make it more sustainable and cost-effective compared to traditional methods.
Q2: How long does the Machine last under continuous operation?
A2: The machine is designed for durability and longevity, with an operational lifespan exceeding 10 years under proper maintenance, thanks to its sturdy frame and high-quality components.
Q3: Is the Machine suitable for small-scale production?
A3: While the QFT 9-16 is built for high-capacity production, its flexibility allows it to scale down to meet the needs of smaller operations, making it suitable for both large and small manufacturers.
Q4: Can this machine handle eco-friendly materials?
A4: Yes, the QFT 9-16 is specifically designed to handle the recycling of construction waste and other solid industrial by-products, turning them into high-quality eco-friendly building materials.
