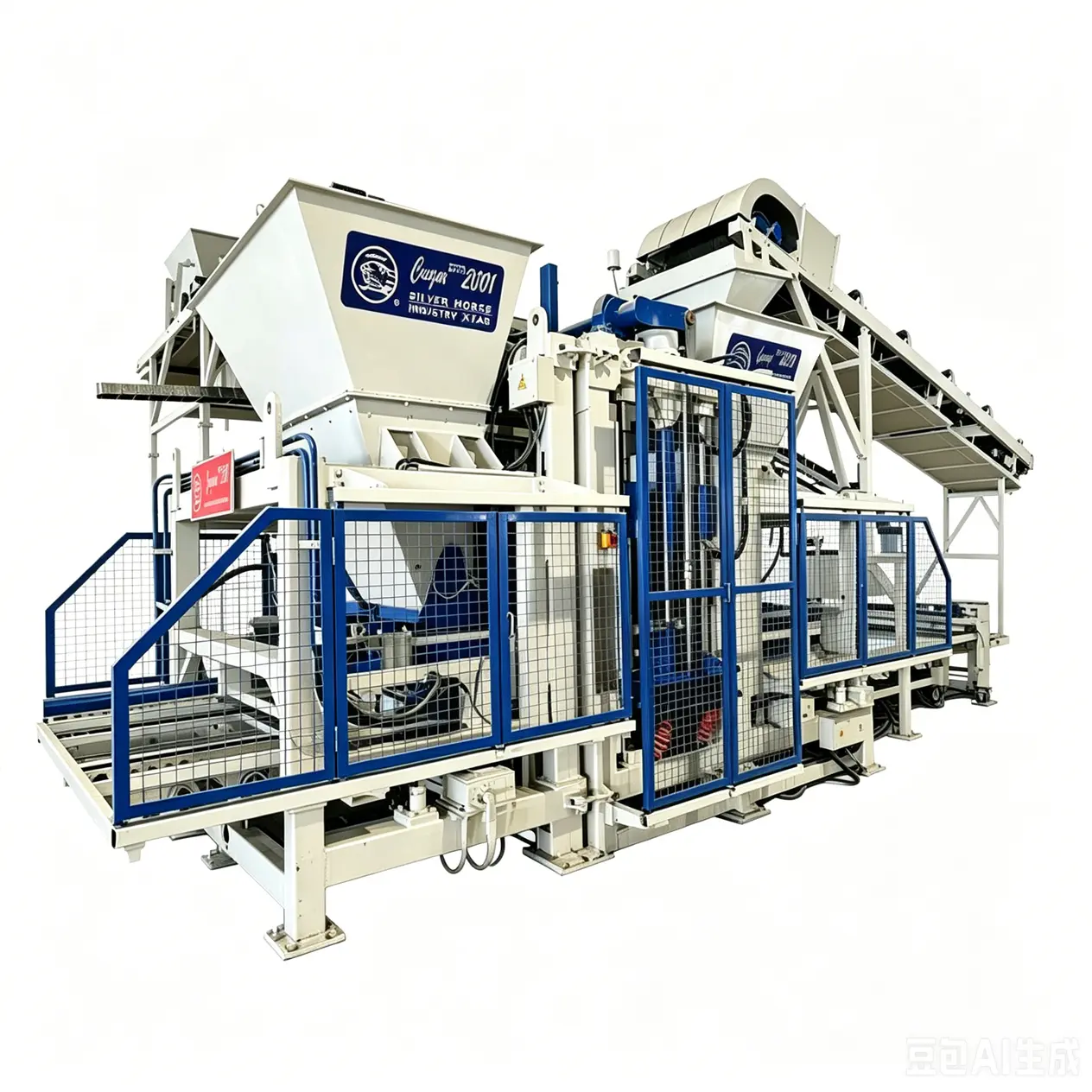

QFT9-16 Vibration Forming Block Machine
Xi'an Silver Horse QFT9-16 vibration forming block machine adopts ultra-fast frequency conversion and amplitude of variation, vertical directional composite vibration, and air-cushion suspension isolation technology, enabling full-range control of excitation frequency from 0 to 65 Hz. This block machine can produce wall bricks, paving stones, curbstones, and slope protection bricks, among others. The products feature high density and compressive strength exceeding 40 MPa, with an annual production capacity of up to 50 million solid bricks.
Silver Horse block making machine is equipped with multiple air-cushion buffer devices in its vibration system. The working pressure of the air cushions can be freely adjusted within a certain range, preset according to product requirements. This ensures that the excitation force of the vibrator remains unimpeded, allowing the vibration system of QFT9-16 Vibration Forming Block Machine to achieve "soft landing" throughout its entire operating range and under extreme conditions. As a result, optimal vibration isolation and excitation performance are maintained, effectively reducing operational noise and preventing vibrational forces from being transmitted to the frame, thereby extending the service life of the block making machine.
Key Benefits
Advanced International Technology: adopting the vibration technology with extreme speed frequency conversion and amplitude of variation, achieving a vibration acceleration of up to 28G (far exceeding the national standard of 12G), ensuring high density and superior strength of products.
Strong Production Capacity: capable of producing 100,000 cubic meters of hollow blocks or 50 million solid bricks annually, as well as 500,000 square meters of paving stones per year. The hourly output for solid bricks (240×115×53mm) reaches 11,000–12,000 pieces.
Diversified Production: multi-functional machine—highly compatible, enabling production of over a hundred types of products such as permeable bricks, curbstones, and slope protection bricks by simply changing molds.
High Degree of Intelligence: the QFT9-16 Vibration Forming Block Machine features status flow indicators at various locations, allowing easy monitoring of current operational conditions. Cameras are installed at key positions to monitor equipment performance, ensuring stable and reliable operation.

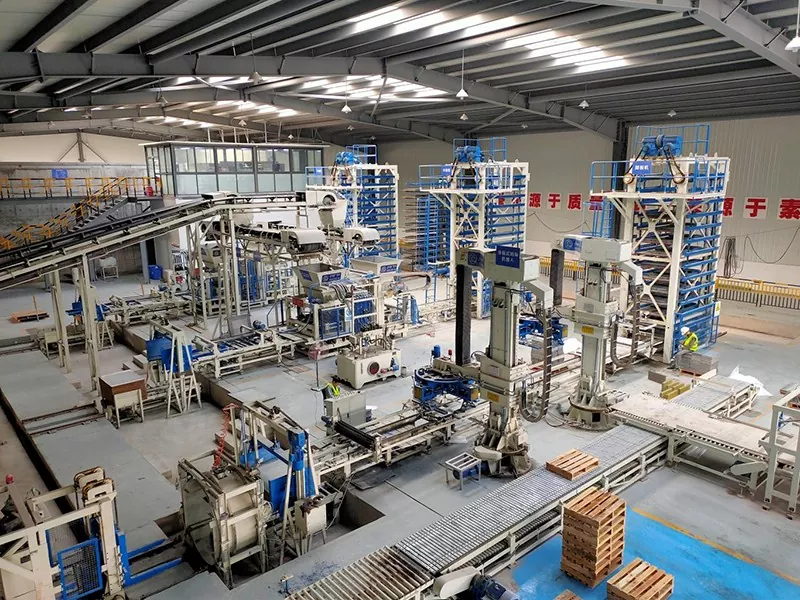

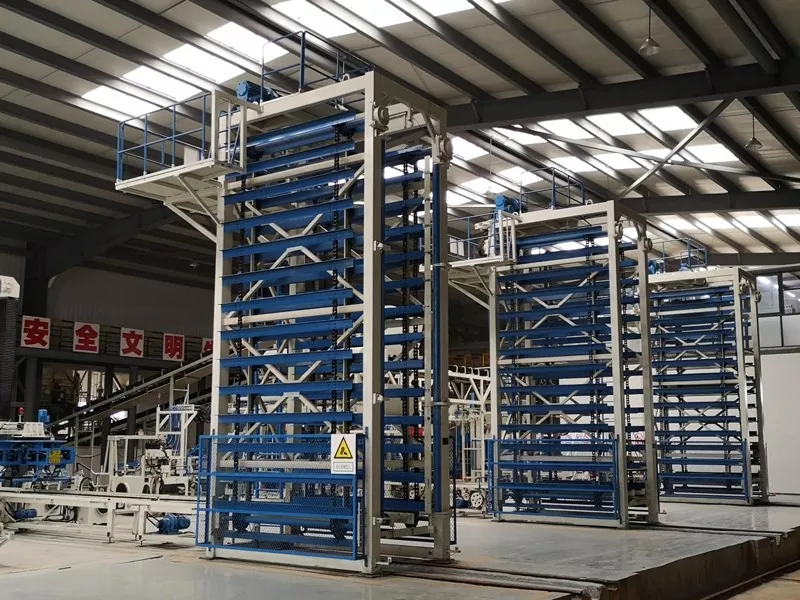

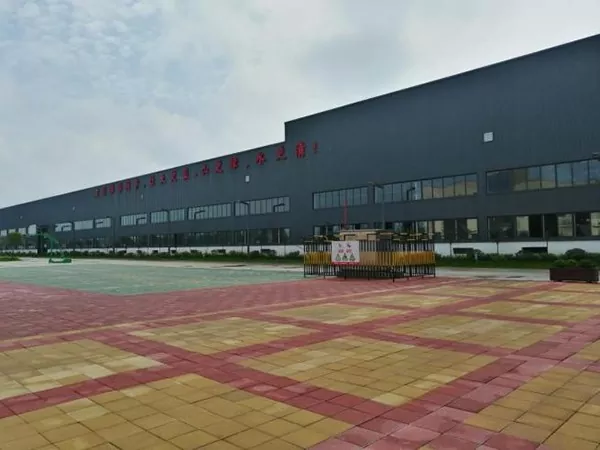

Customer Site of Silver Horse Company

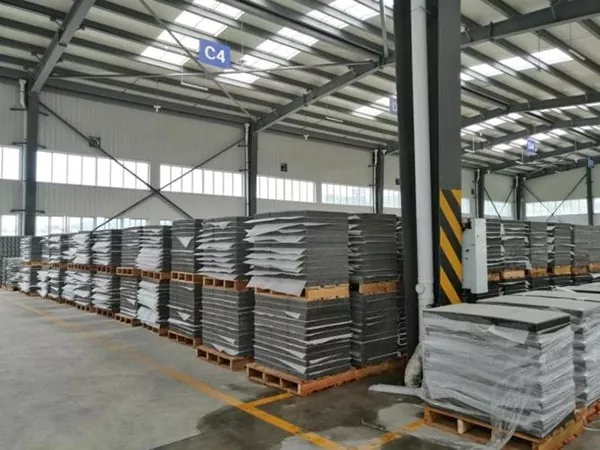

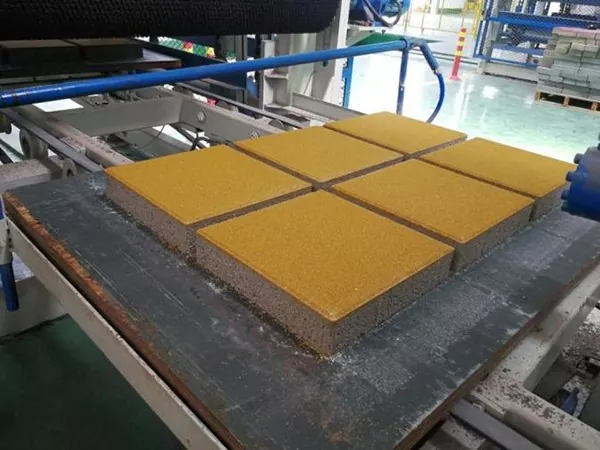

Display of products

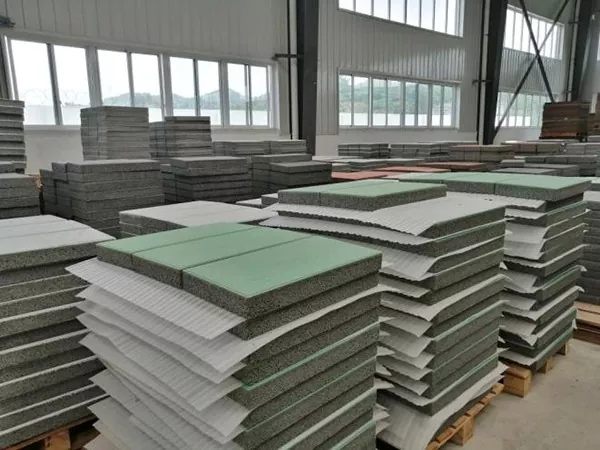

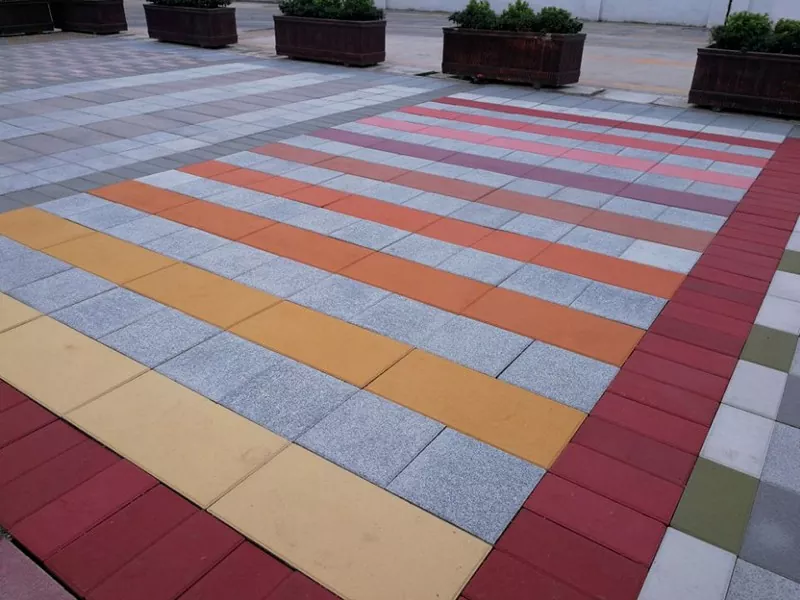

Paving stone
Paving stone
Paving stone
Paving stone
Paving stone
Paving stone

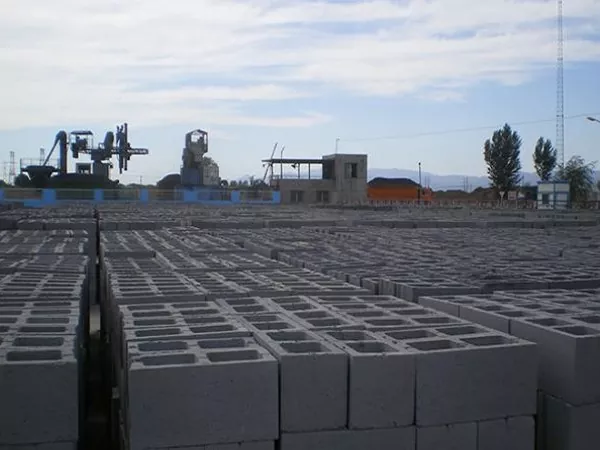

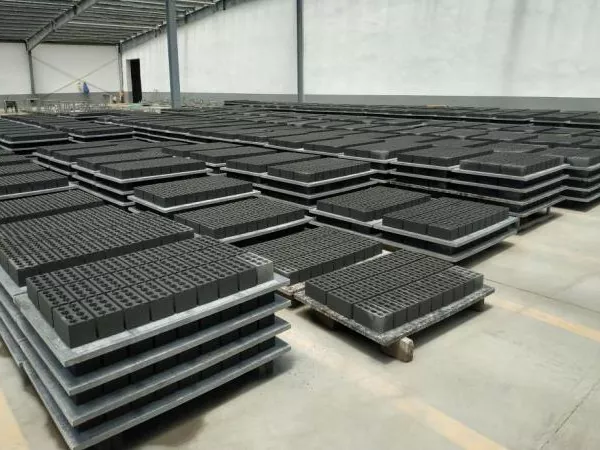

Hollow block
Porous block
Technical parameters

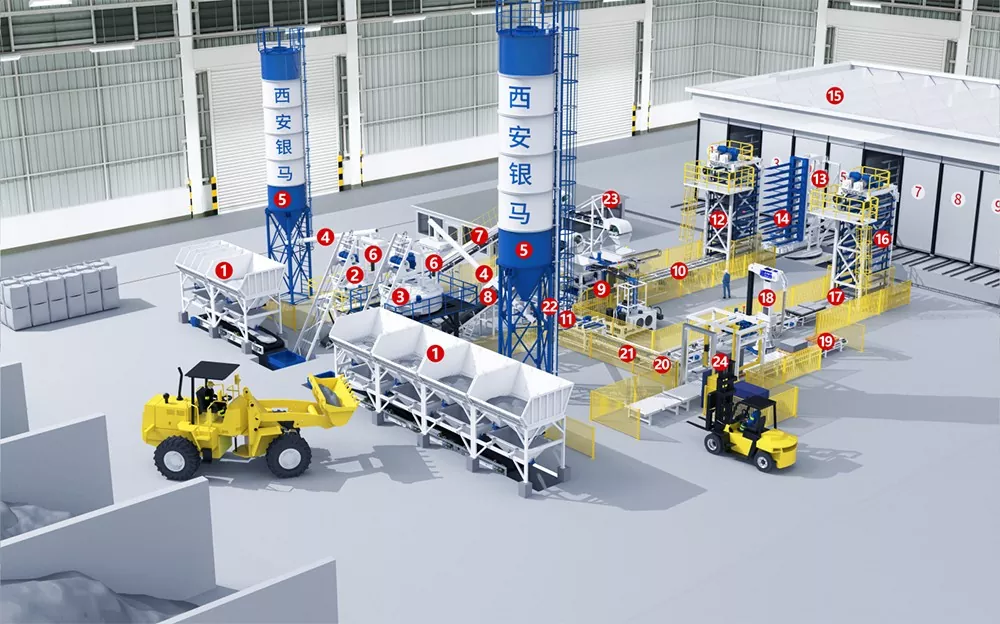

The arrangement of fully automatic block making production line
