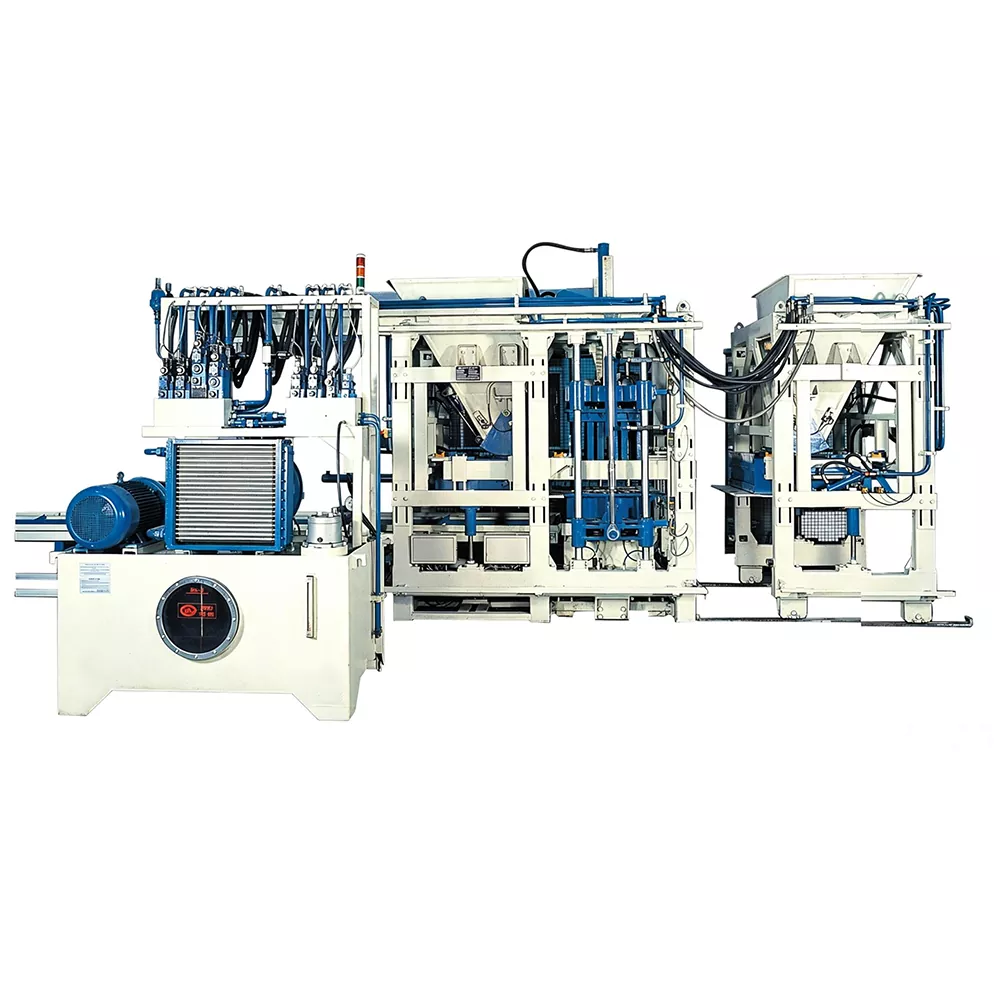

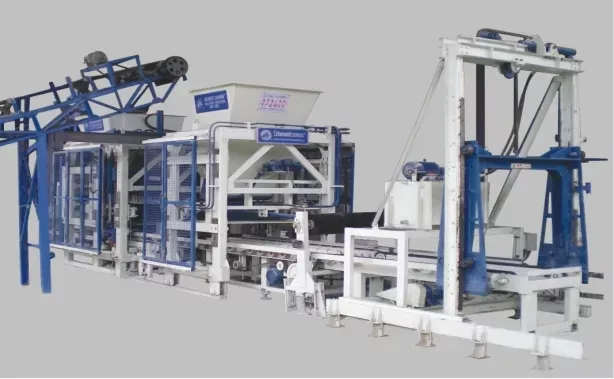

QFT6-16 Block Machine
Silver Horse QFT6-16 Block Machine is the main model developed by Xi'an Silver Horse Company during its independent innovation phase from 2007 to 2011. It produces six hollow blocks per cycle, with a molding cycle of approximately 18 to 20 seconds and an hourly output of 1,000 to 1,200 pieces. As a medium-to-small-sized equipment, it offers high cost performance and is well-suited for small and medium investors.
Technical Features
1) The QFT6-16 Block Machine features an elegant and stylish design, reliable operation, and easy maintenance. It supports automatic operation, significantly reducing the labor intensity for operators.
2) Equipped with hydraulic and mechanical transmission systems, it offers multiple control functions including automatic, interlocked, and manual modes.
Equipment Advantages
1. Annual production capacity of 80,000 cubic meters of hollow blocks and 40 million solid bricks.
2. Block molding method: vertical directional vibration combined with pressurized vibration, using a fixed top-release molding process.

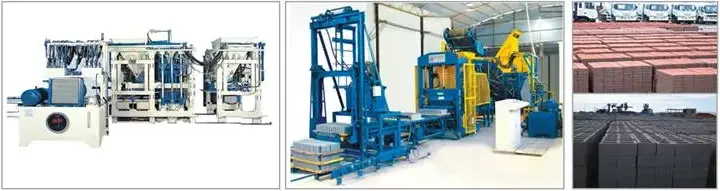

Display of Block Machine
Technical parameters list for the production line
|
Technical parameters list for block making machine and the production line |
|
|
Parameters |
Technical note |
|
Pallet size |
1100 × 670(мм) |
|
The total power of the production line |
About 49kw |
|
Vibration frequency |
0~65HZ Adjustable frequency & scope available in whole course by computer controlled |
|
The field of making |
The permeable brick, the color paving stone, wall brick (high load-bearing and non-load-bearing), special brick ( slope-protection brick) and other products are produced. |
List of production capacity
|
List of production capacity of block making machine |
|||
|
Model |
Specifications |
Forming Blocks |
Output/hour |
|
Paving stone |
198×98×60/80 (мм) |
27 bricks/ plate |
3800~4800 bricks/h |
|
Lawn block |
488×298×80/100 (мм) |
4 bricks/ plate |
570~720 bricks/h |
|
Solid brick |
240×115×53 (мм) |
40 bricks/ plate |
8800~9600 pieces/h |
|
Hollow block |
390×190×90 (мм) |
6 bricks/ plate |
1000~1200 blocks/h |
|
Note: All kinds of different blocks can be produced by the equipment, only change the mould. |
|||
Kindly reminder: Owing to different quality requirements of materials and products, Silver Horse Company has the right to optimize the design. The above parameters are for reference only.
Instructions for Equipment Configuration of Silver Horse Automatic Block Making Production Line
|
No. |
Name |
Qty. |
|
1 |
Silver Horse automatic block making system |
1 set |
|
1-01 |
Block making machine |
1 set |
|
1-02 |
Pallet feeder |
1 set |
|
1-03 |
Wet blocks conveyor |
1 set |
|
1-04 |
Hydraulic station |
1 set |
|
1-05 |
PLC control unit |
1 set |
|
1-06 |
The jet cleaning device |
1 set |
|
1-07 |
Mould |
1 set |
|
2 |
Color materials system of the main machine |
1 set |
|
3 |
Color materials mixer |
1 set |
|
4 |
Base materials mixer |
1 set |
|
5 |
Inclined belt conveyor |
2 sets |
|
6 |
Automatic unloader |
1 set |
|
7 |
Stacker |
1 set |
|
8 |
The remote fault diagnosis system |
1 set |
|
★ Note : Total power of the above equipment: about 120KW(40 percent utilization on average). The specific parameters are subject to the final plan. |
||

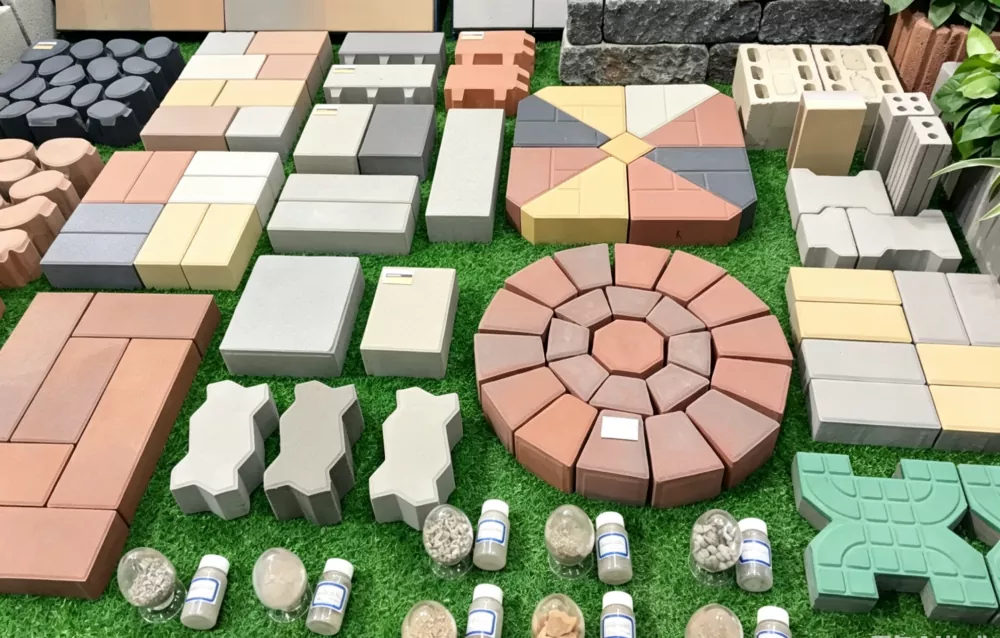

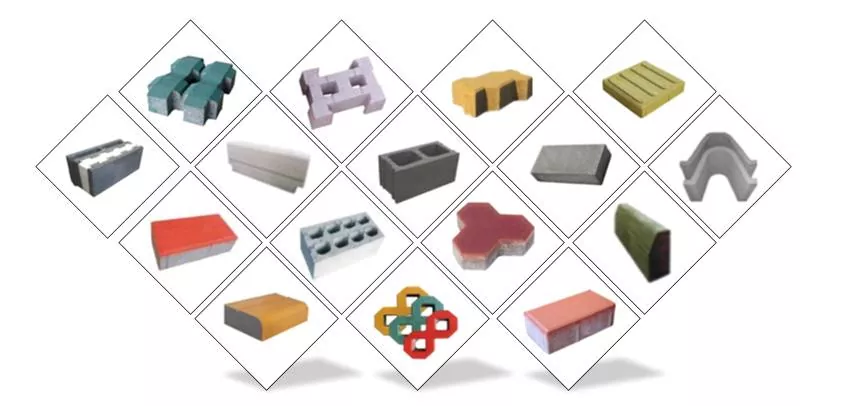

Display of products

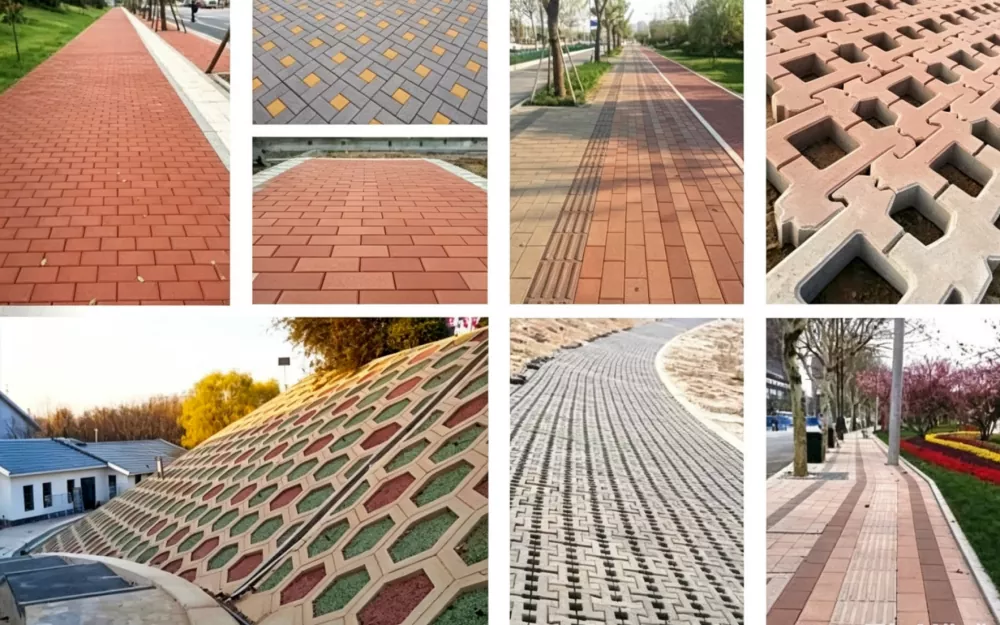

Application of products
