Solid Brick Making Machine

30+ years in the industry, 500+ production lines delivered globally.

Vice President Unit of China Construction Machinery Association's Concrete Products Branch.

ISO9001 & CE certified, meeting international quality and safety standards.

From project planning and installation to after-sales support — we're with you at every step.

National High-Tech Enterprise with multiple patents and participation in national R&D projects.

Preferred supplier for China Railway Group, Shanxi Road & Bridge, and other industry leaders.

Our solid brick making machine demonstrates exceptional raw material flexibility. It can process:

• Conventional materials: crushed stone, sand, cement, fly ash, lime, and gypsum
• Recycled materials: construction & demolition waste, industrial tailings, slag, and coal gangue

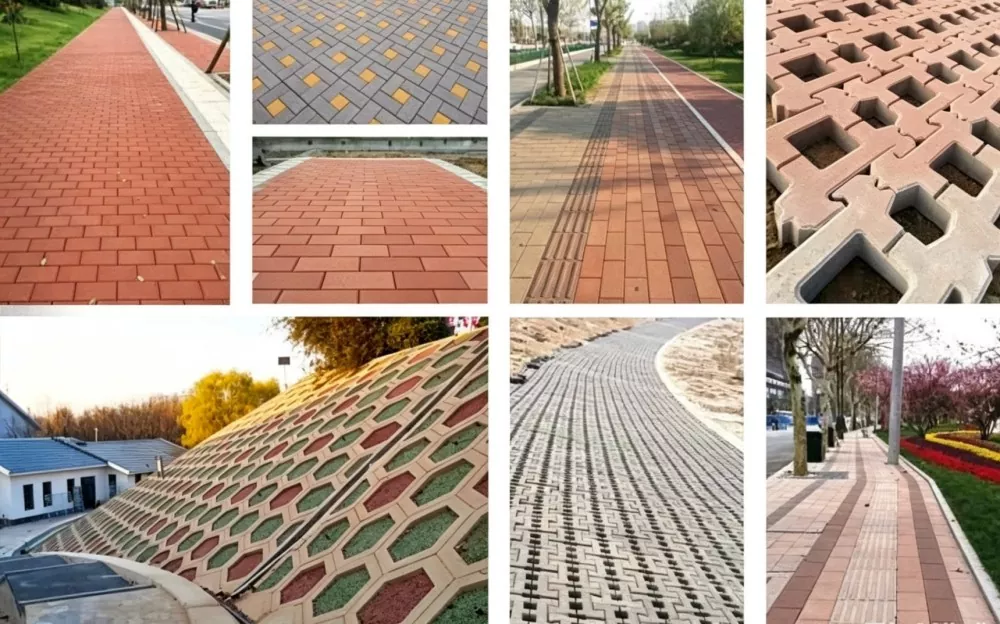

• Specialty materials: lightweight aggregates for insulated blocks and colored pigments for paving stones

Silver Horse advantage: Our patented multi-axis vibration system ensures optimal compaction regardless of material composition — achieving density uniformity that saves up to 15% cement compared to conventional machines.

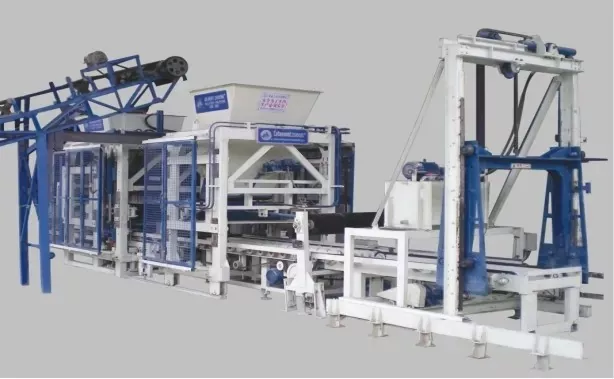

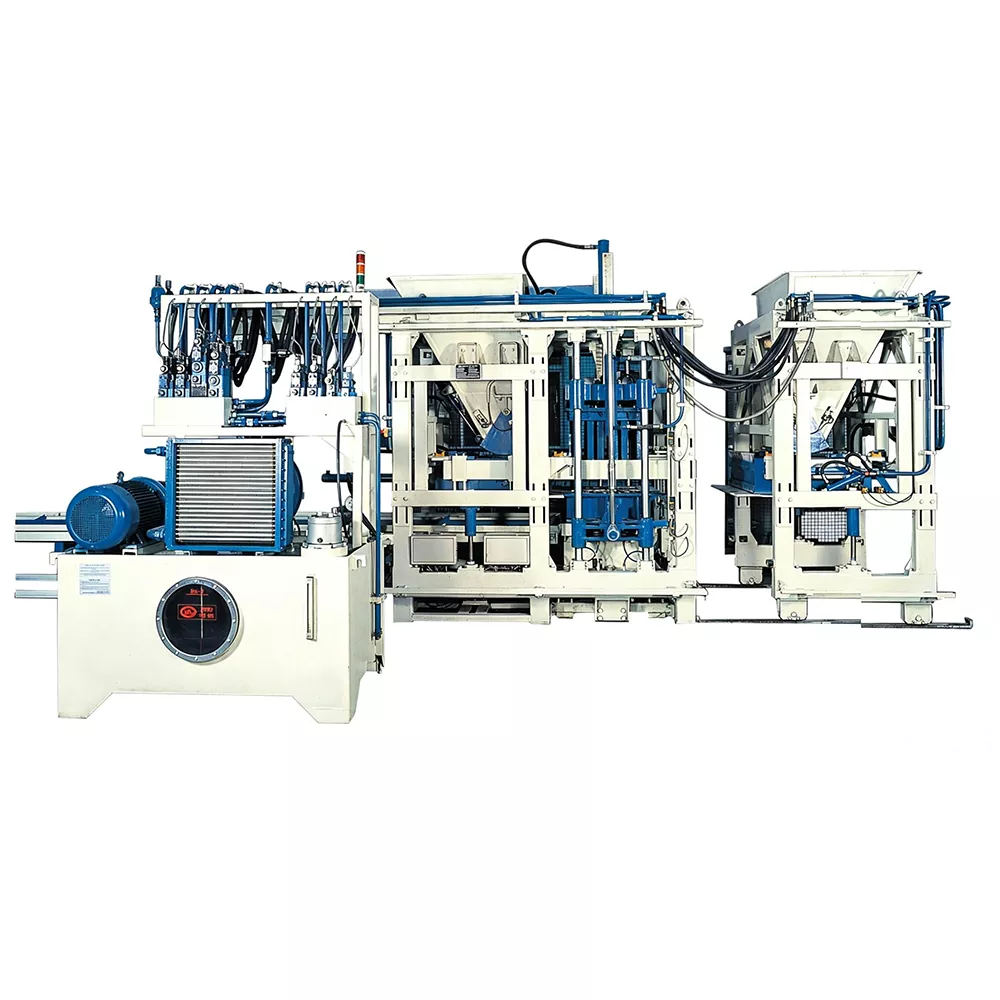

Based on standard 240×115×53mm solid bricks, our QFT6-16 model delivers:

• Cycle time: 15–18 seconds per pallet (depending on material composition)
• Output: 8,800–9,600 bricks per hour
• Installed power: Approximately 49kW (total production line)
• Energy efficiency: Frequency conversion control reduces power consumption by 18–22% compared to traditional fixed-frequency systems

Pro tip: Production capacity varies with raw material moisture content and aggregate gradation. We provide free material testing at our Xi'an R&D center to determine the optimal formulation for your specific raw materials.

Standard delivery timeline:

• Production: 30–45 working days after deposit confirmation (custom molds may extend this by 7–10 days)
• Shipping: 30–45 days via sea freight to major ports (Middle East, Southeast Asia, Africa, Americas)
• Express option: Air freight available for urgent spare parts orders (3–5 working days)

Silver Horse logistics service: We provide complete shipping arrangements including:

• Customs clearance documentation (commercial invoice, packing list, BL, CO, etc.)
• Marine insurance coverage (optional)
• Port-to-port or door-to-door shipping options
• Real-time shipment tracking updates

— Over 500 production lines shipped to 30+ countries, with zero major shipping incidents in the past 10 years.

Comprehensive after-sales service package:

• Warranty: 12 months from commissioning date (core components: 24 months)
• Installation support: Our engineers travel to your site for installation supervision and commissioning (2–3 weeks)
• Operator training: On-site training for your production team included (duration: 5–7 days)
• Spare parts supply: Minimum 10-year availability guarantee for all mechanical and hydraulic components
• Remote diagnostics: 24/7 technical support via video call, WhatsApp, or email

Silver Horse commitment: We maintain a dedicated spare parts warehouse in Xi'an with stock covering 95% of wear parts (mold plates, hydraulic seals, belts, bearings). Emergency parts can be dispatched within 24 hours via DHL/FedEx.

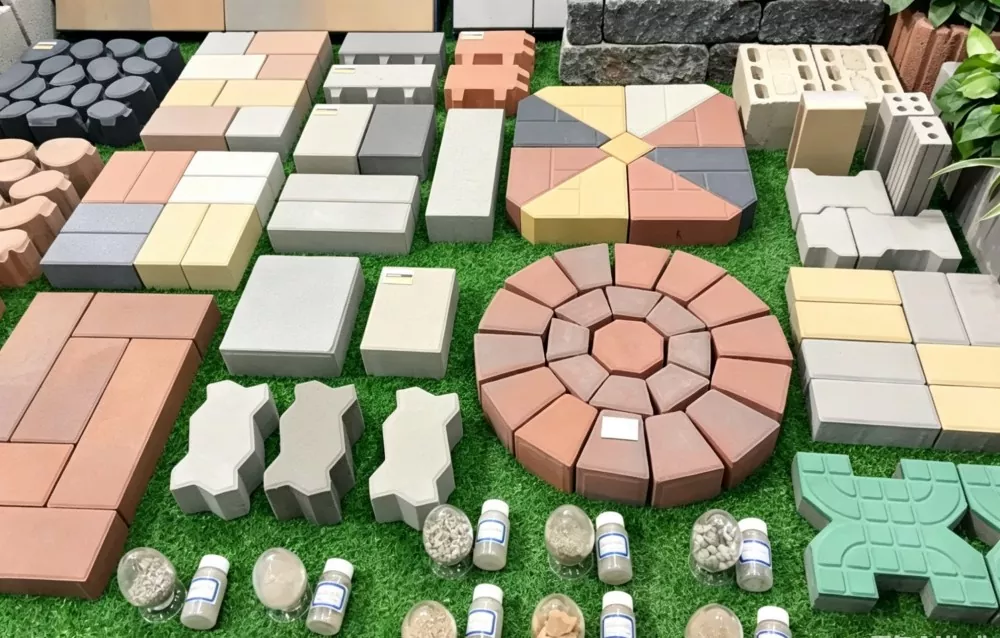

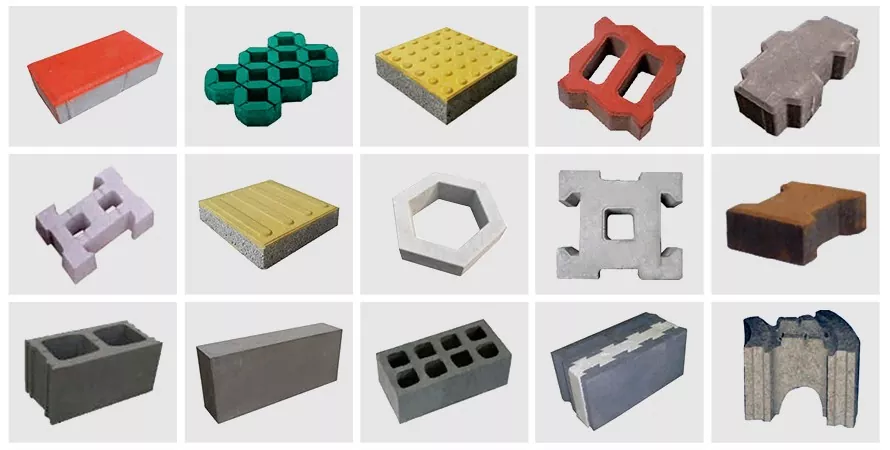

With quick-change mold technology (swap time: 15–20 minutes), this machine produces a full range of concrete products:

Customization: We design and manufacture custom molds according to your specific product dimensions and surface texture requirements (minimum order quantity: 1 set).

Investment breakdown (reference only — varies by configuration):

Typical ROI calculation (example based on QFT6-16 producing 9,000 bricks/hour):

• Daily output (8 hours): ~72,000 bricks
• Monthly output (25 working days): ~1,800,000 bricks
• Estimated profit per brick: USD 0.008–0.015 (regional variation)
• Estimated ROI period: 8–18 months (depending on local market conditions and operational efficiency)

Free consultation: We provide a detailed ROI analysis tailored to your local market conditions, raw material costs, and labor expenses upon request.

Quality certifications & industry recognition:

• ✅ ISO9001:2015 Quality Management System Certified
• ✅ CE Marking (European Conformity) — all exported equipment
• ✅ National High-Tech Enterprise (Ministry of Science and Technology, China)
• ✅ "Specialized, Refined, Differentiated and Innovative" Enterprise (Shaanxi Province)
• ✅ Vice President Unit — Concrete Products Mechanical Branch, China Construction Machinery Association
• ✅ Standing Executive Member — Shaanxi Council for Promotion of Economic and Trade
• 🏆 2023 TOP50 Gold Award — Application Contribution in China's Construction Machinery

Quality guarantee: Every machine undergoes 48-hour continuous test run before shipment. We provide factory acceptance test (FAT) upon request, and a complete inspection report is delivered with each machine.
