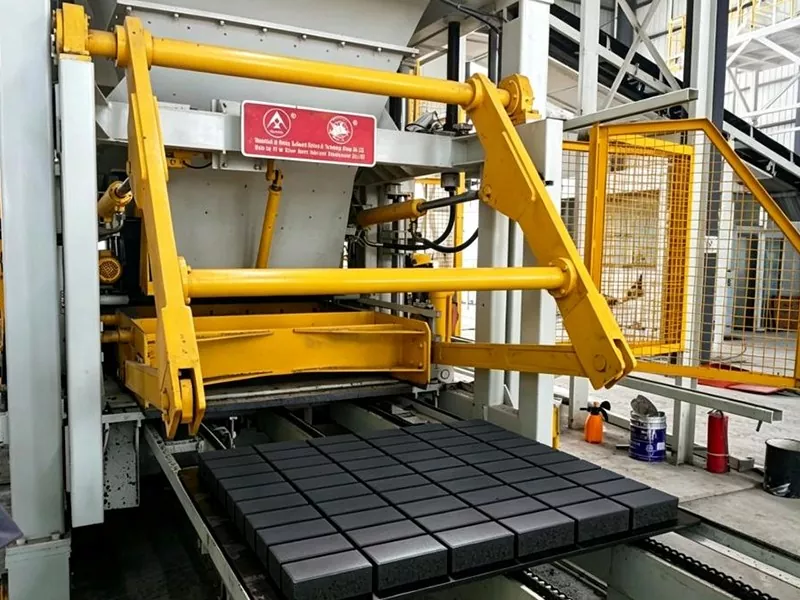

QFT9-16 Concrete Products Equipment
Silver Horse QFT9-16 concrete products equipment is equipped with the production flexibility with multiple functions in one machine. By changing molds and adjusting vibration parameters, it can quickly switch between producing various products such as permeable bricks, wall bricks, slope protection bricks, curbstones, and lawn bricks.
Silver Horse block making machine features a short molding cycle and high production capacity: the molding cycle for paving stone (198×98×60/80mm) is 20–25 seconds, with an hourly output of 5,700 to 7,200 pieces (about 110-140㎡). The molding cycle for solid brick (240×115×53mm) is 16–18 seconds, achieving an hourly output of 11,000 to 12,000 pieces. The block making machine has the installed capacity of approximately 70 kW, with the pallet size of 1,250×900 mm and a vibration acceleration reaching up to 28g—significantly exceeding the national premium standard of 12g.
Is Your Current Block Production Facing These Issues?
✓
Low Density / Low Strength? Our 28g vibration acceleration (vs industry avg 15g) ensures ultra-compact bricks that save 5-8% cement cost.
✓
High Noise & Maintenance? Our four-axis servo system reduces noise below 85 dB and extends mold life by 30%.
✓
High Labor Dependency? Our PLC touch-screen control reduces operator training time by 60%.
Key Benefits
Intelligent Fully Automatic Production Line

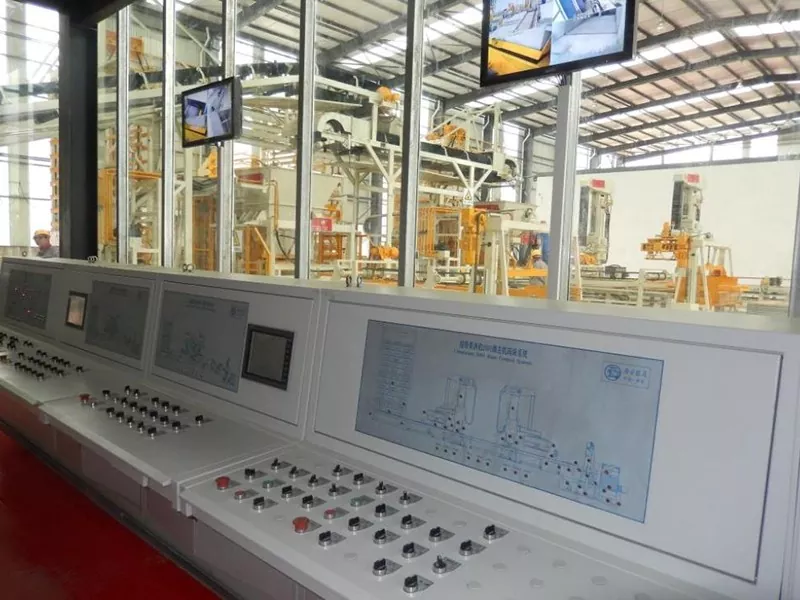

The core of the control system uses a programmable logic controller to coordinate the entire production line according to the process flow. Operators can modify relevant operating parameters via touch screen, and access operation instructions, fault descriptions, and other related information.
Multi-Model Operation for Diversified Production
By simply changing molds, QFT9-16 concrete products equipment can produce over a hundred types of products, including permeable bricks, curbstones, slope protection bricks, hollow blocks, and paving stones. This truly enables multi-functional use of a single machine, significantly improving equipment utilization and market adaptability.

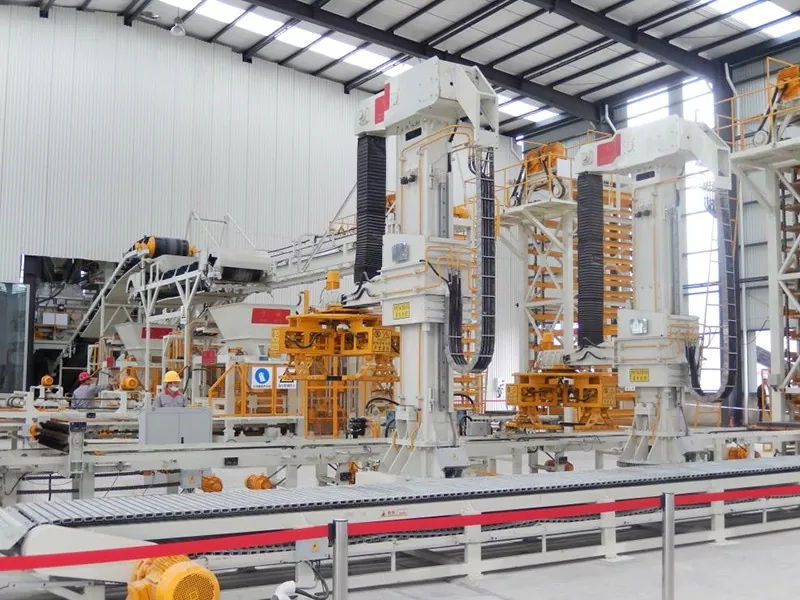

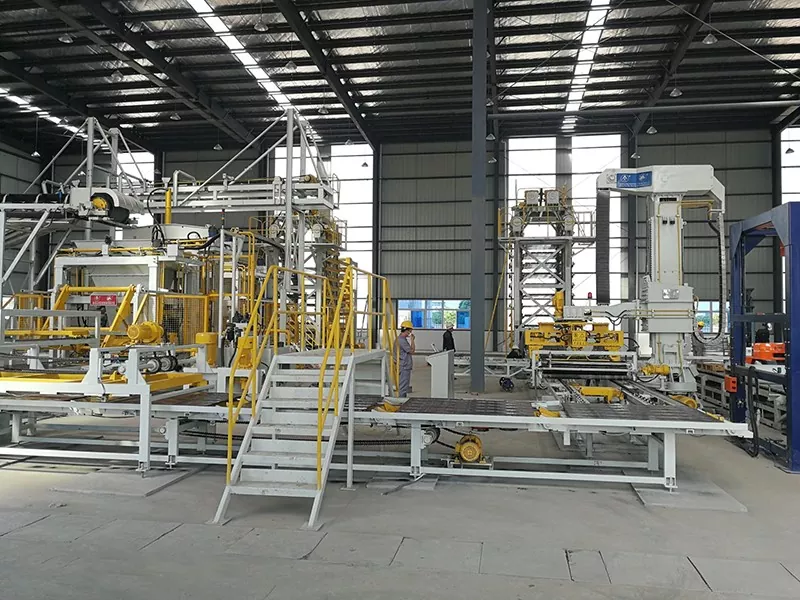

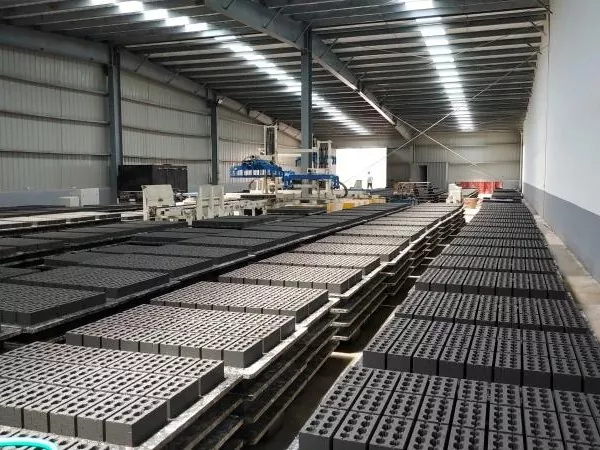

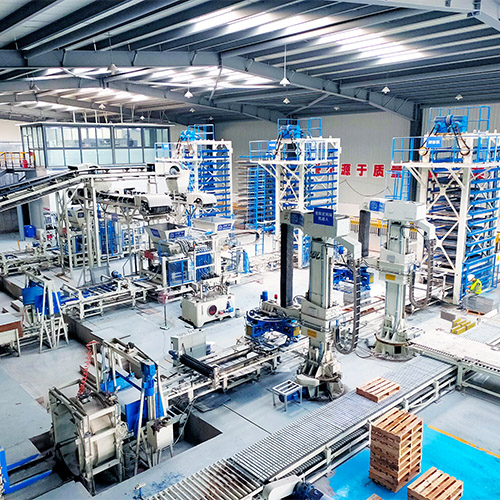

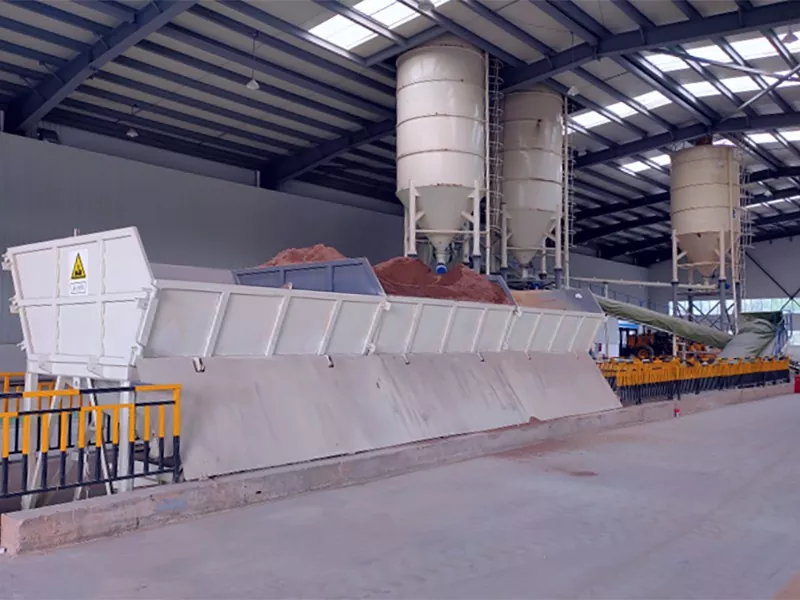

Customer Site of Silver Horse Company

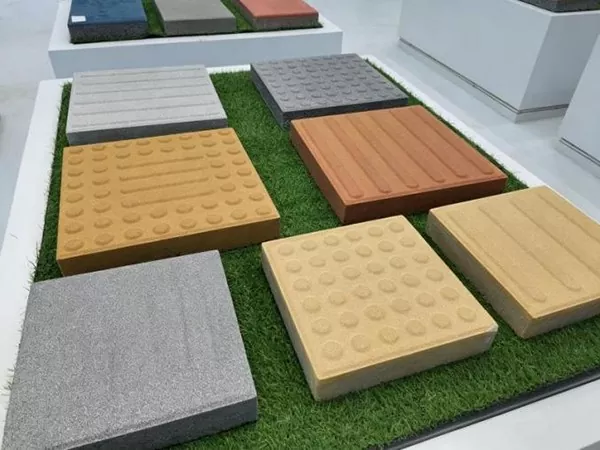

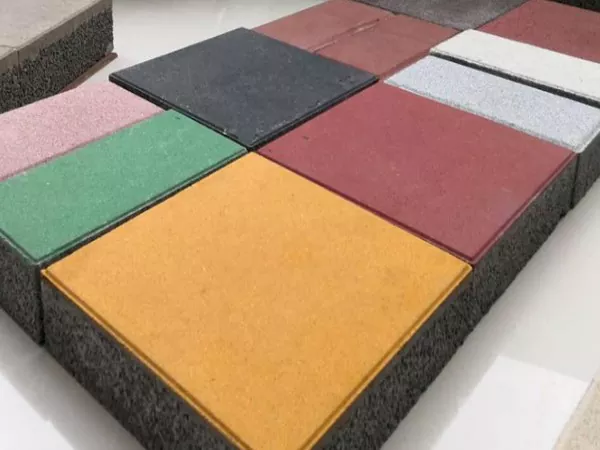

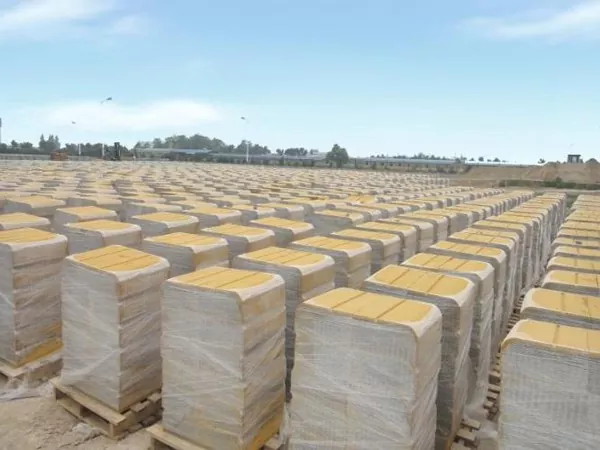

Display of products

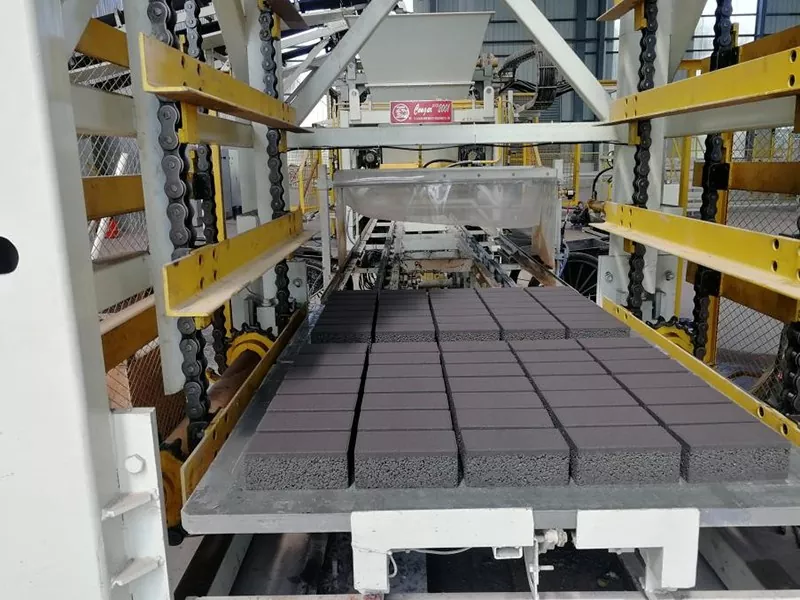

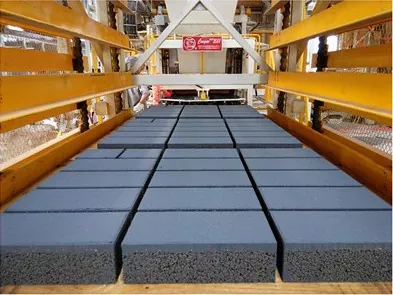

Ecological permeable brick

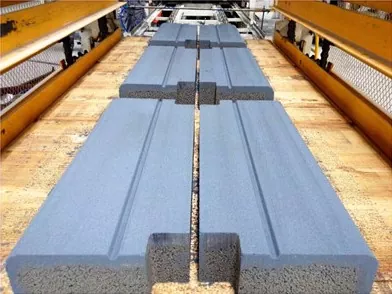

Ecological curbstone
Porous block

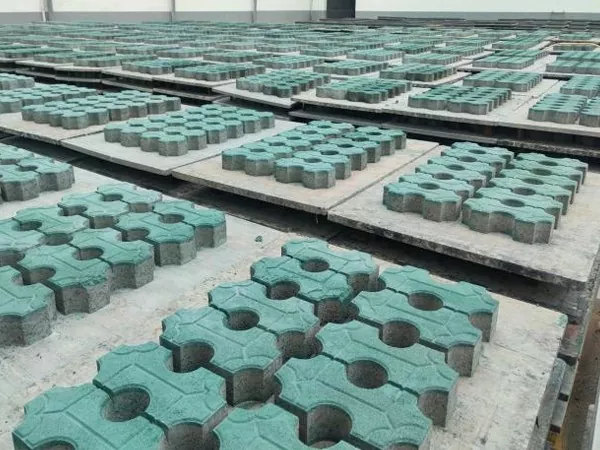

Lawn block
The color curbstone

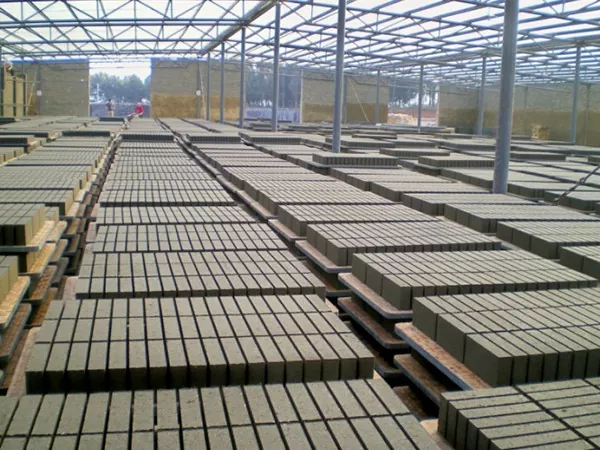

Soild brick
Paving stone
Paving stone
Technical parameters
Trust and Authority
National Invention Patent
Multi-axis Servo Vibration System
Patent No.: ZL 2024 1 1234567.8
National Quality Supervision
National Building Materials Industry Building Materials Machinery Product Quality Supervision and Testing Center
Vibration Acceleration ≥ 28g (National Standard: 12g)
International Compliance
CE & ISO 9001:2025 Certified
Exported to 20 countries and regions in Southeast Asia, Central Asia, West Asia, South Asia, and the Middle East.

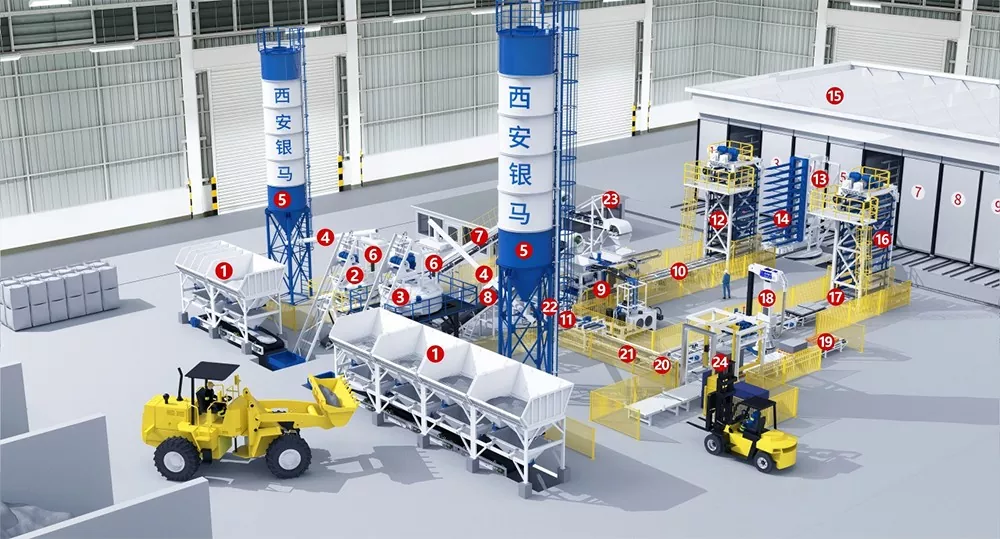

The arrangement of fully automatic block making production line
