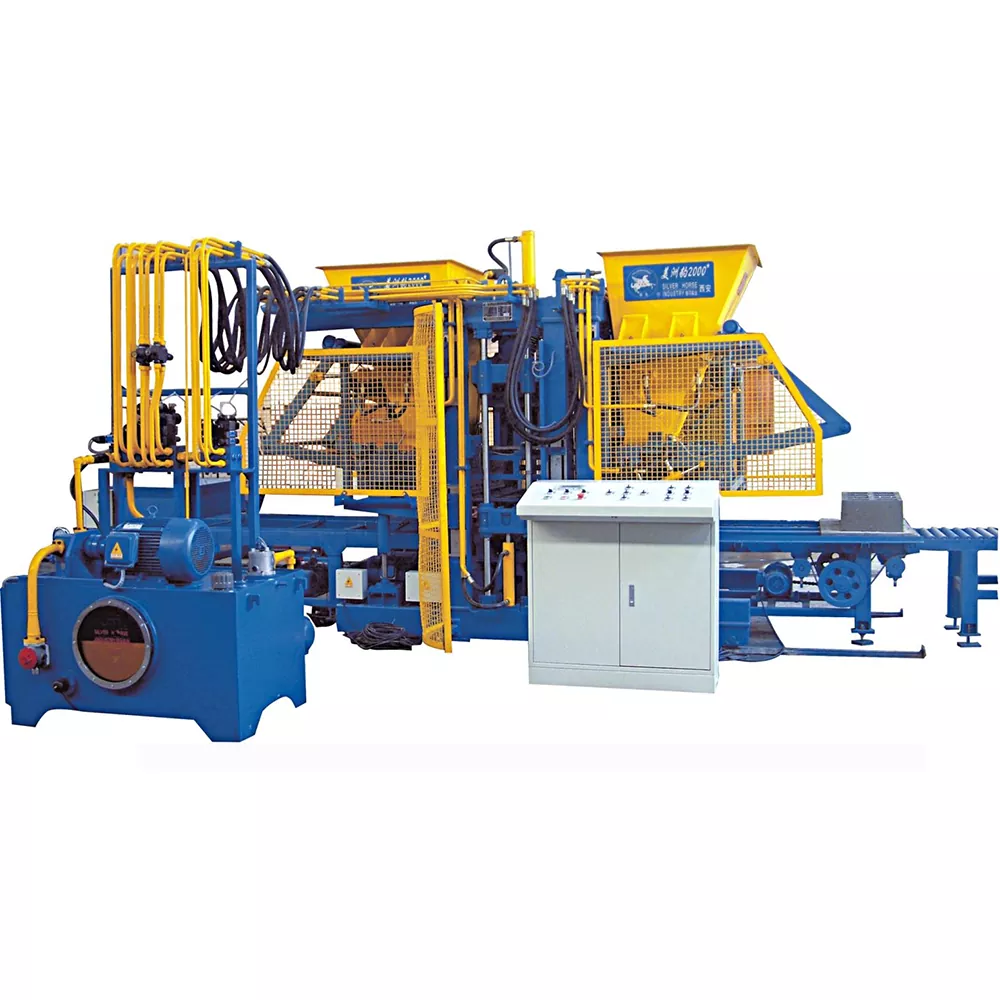

QFT4-15 Block Machine

Silver Horse block machine is a best-selling and cost-effective product of Silver Horse Company and a well-known brand in the industry. This QFT4-15 Block Machine features elegant design, being economical and practical, with stable and smooth operation.

Send Inquiry

Product Description

Silver Horse QFT4-15 Block Machine has fully considered the wide applicability of raw materials in its design. In addition to conventional sand and stone, it can effectively utilize fly ash, slag, and other materials to produce various bricks, including hollow blocks, solid bricks, paving stones, and lawn blocks.

Key Features

Silver Horse block machine can produce 50,000 cubic meters of hollow blocks or 30 million solid bricks annually. The QFT4-15 Block Machine features a frequency-controlled vibration system with adjustable amplitude, compatible with various materials. Equipped with an intelligent electrical control system for simple operation, it offers three modes for block making: manual, interlocked, and automatic.

Display Of The Block Machine

QFT4-15 concrete block machine producing hollow blocks in factory

Technical parameters

Type	QFT4-15
Molding Cycle(S)	13～20(sec)
Pallet size	1000×620×40（mm）
Vibration frequency (HZ)	0～65HZ Adjustable frequency & scope available in whole course by computer controlled
Vibration form	Variable frequency&adjustable amplitude
Usage extension	Hollow block、Paving stone
Mainframe total power	27kw
Production line total power	48kw
External dimensions	7740×2000×2860（mm）

List of production capacity

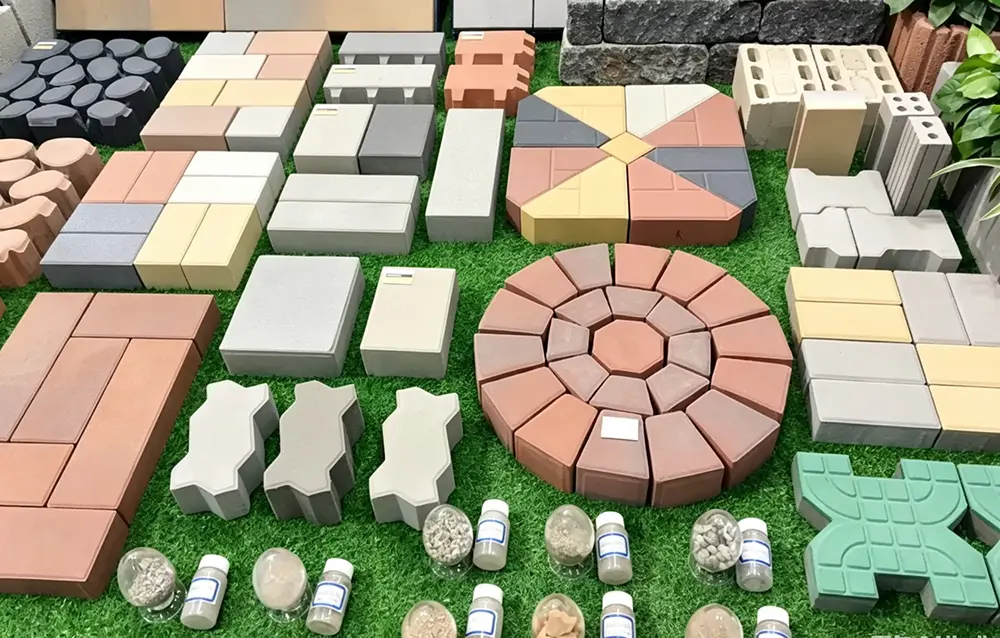

Industrial solid waste (such as fly ash, slag, coal gangue, steel slag, etc.) and construction solid waste are produced ecological permeable brick, ecological slope-protection brick, municipal brick, lawn block, wall brick and other products.

List of production capacity of block making machine
Model	Specifications	Forming Blocks	Output/hour
Paving stone	198×98×60/80 (мм)	20 bricks/ plate	3000~4000 bricks/h
Lawn block	488×298×80/100 (мм)	2 bricks/ plate	320~400 bricks/h
Solid brick	240×115×53 (мм)	28 bricks/ plate	5600~6720 pieces/h
Hollow block	390×190×90 (мм)	4 bricks/ plate	720~900 blocks/h
Note: All kinds of different blocks can be produced by the equipment, only change the mould.

Our QFT4-15 features a table vibration + hydraulic press dual forming system. Unlike motor-only machines, this hybrid design ensures higher block density (up to 15MPa) even with 30% fly ash content, saving you up to 15% on cement costs.

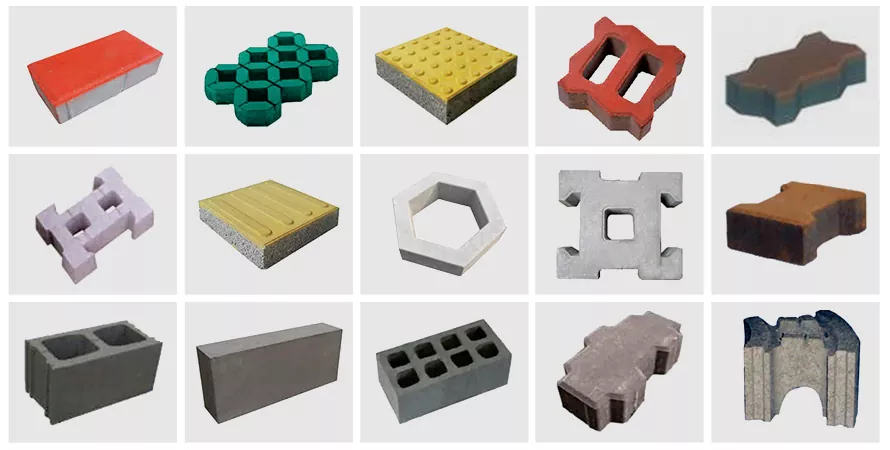

Display of products

Technical diagram of QFT4-15 hydraulic vibration system

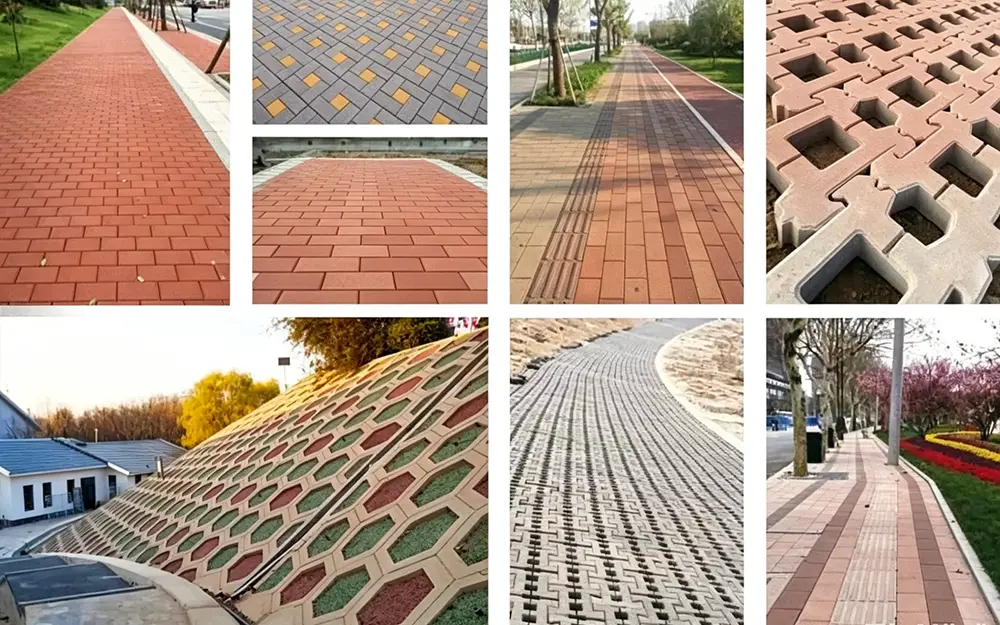

Application of products

❓ Frequently Asked Questions About QFT4-15 Block Machine

🔹 What raw materials can be processed by the QFT4-15 block machine?

The QFT4-15 is designed with wide raw material adaptability. In addition to conventional sand, stone, and cement, it can efficiently utilize industrial solid waste including fly ash, slag, coal gangue, steel slag, and construction waste. The frequency-controlled vibration system with adjustable amplitude ensures excellent block density regardless of material composition.

🔹 What is the daily production capacity of QFT4-15?

🔹 Can the voltage and frequency be customized for different countries?

🔹 What is the delivery time and shipping terms for QFT4-15?

🔹 What spare parts should I order together with the main machine?

🔹 What is the difference between QFT4-15 and QFT6-16?
