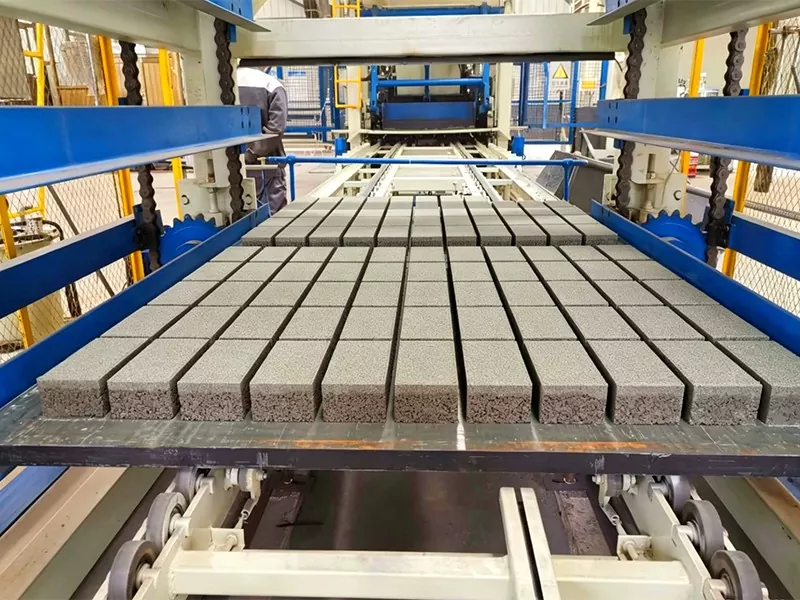

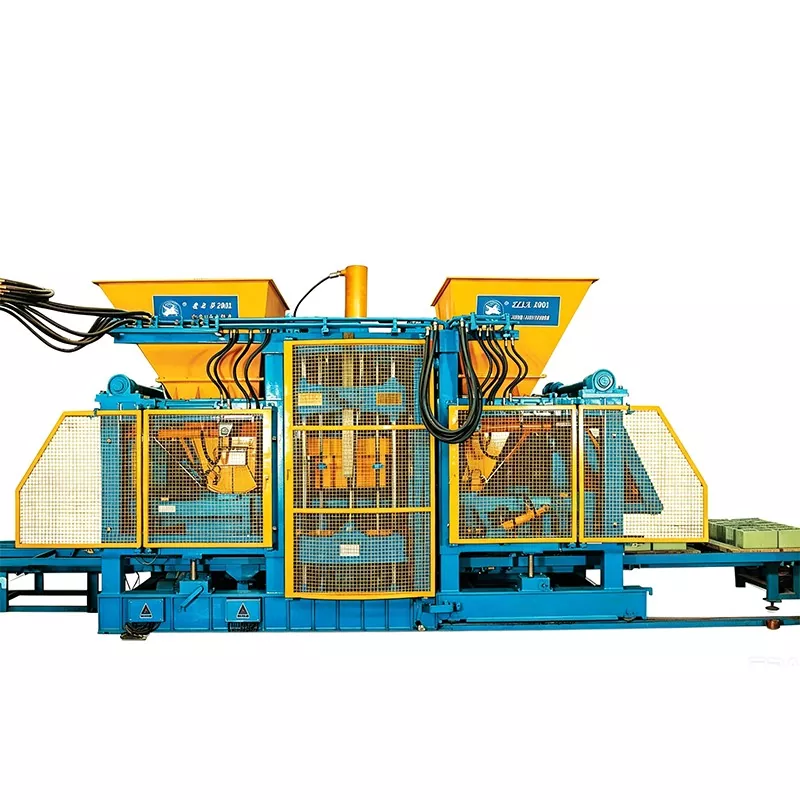

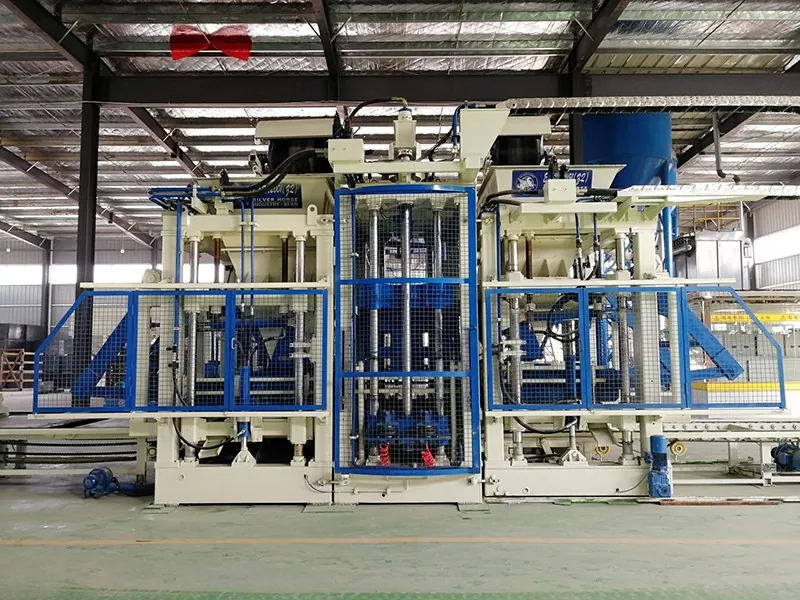

QFT15-18 Brick Making Machine
Xi'an Silver Horse Company's QFT15-18 Brick Making Machine features a core main system that utilizes the multi-axis servo vibration system, a national patent for invention of Silver Horse Company. Paired with multi-axis virtual electronic gear transmission, it generates an instantaneous super 30g vibration acceleration (far exceeding the 20g of European similar models), causing the material to quickly liquefy and densely compact into a shape in 2 seconds, making the product more uniform and dense, of superior quality.
QFT15-18 Brick Making Machine, a typical representative of Xi'an Silver Horse block making equipment, redefines the operation of block production lines. It not only adopts high-strength vibration and precise materials distribution systems, but also realizes intelligent service and production. The production line can be designed, according to the specific requirements of customers, assisting in setting up factories and ensuring customers achieve efficient, stable economic returns on their investment.
Equipment Advantages
Intelligent Service: this QFT15-18 Brick Making Machine incorporates multiple national patents, offering high degree of automation, environmental friendliness, and the capability to build unmanned, high-end intelligent factories.
production line incorporates multiple national patents, offering high degree of automation, environmental friendliness, and the capability to build unmanned, high-end intelligent factories.
Sustainable Development: by transforming construction waste into high-quality building materials,QFT 15-18 block making machine effectively conserves natural sand and stone resources. With an annual production capacity of up to 700,000 square meters (paving stone) or 70 million solid bricks, it helps customers achieve sustainable development.
High Investment Returns: QFT 15-18 block making production line adopts intelligent control, computerized operation, and robotic palletizing, eliminating the need for heavy physical labor. The project delivers not only demonstration effect as a building materials manufacturing facility, but also broad market prospect and significant economic effectiveness.

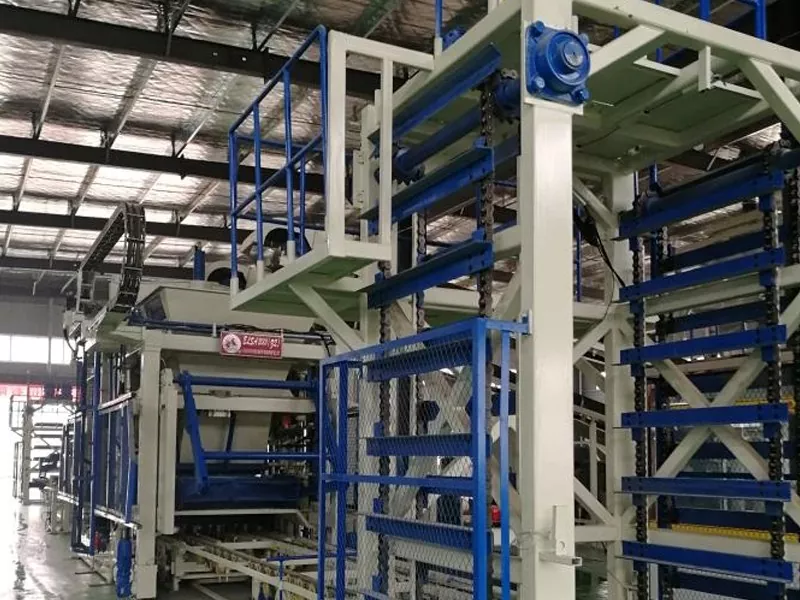

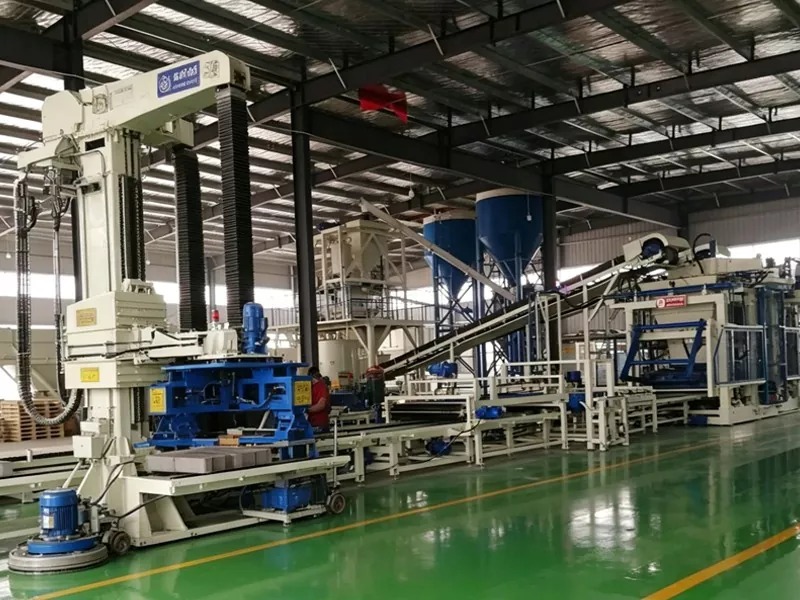

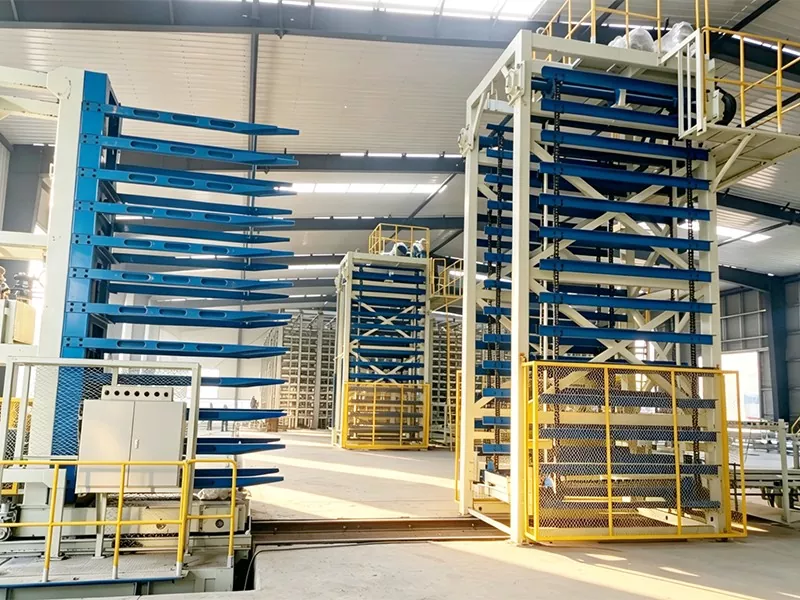

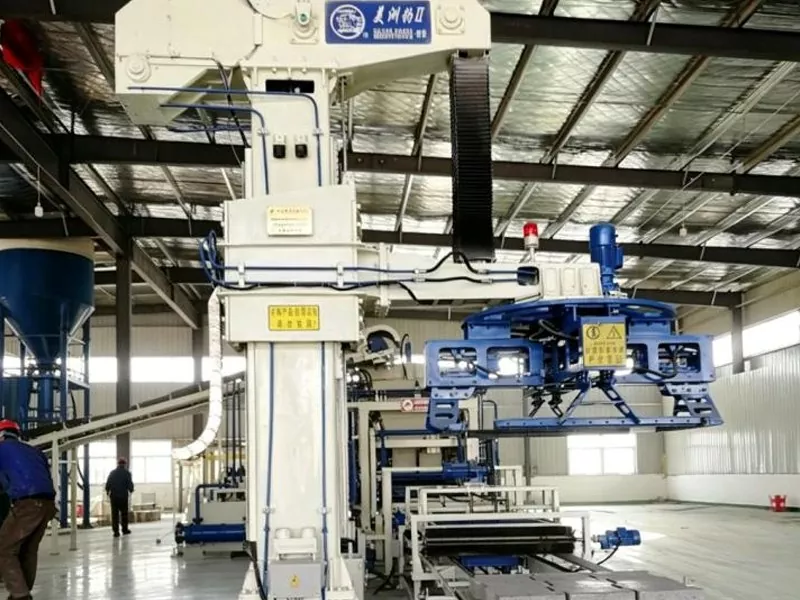

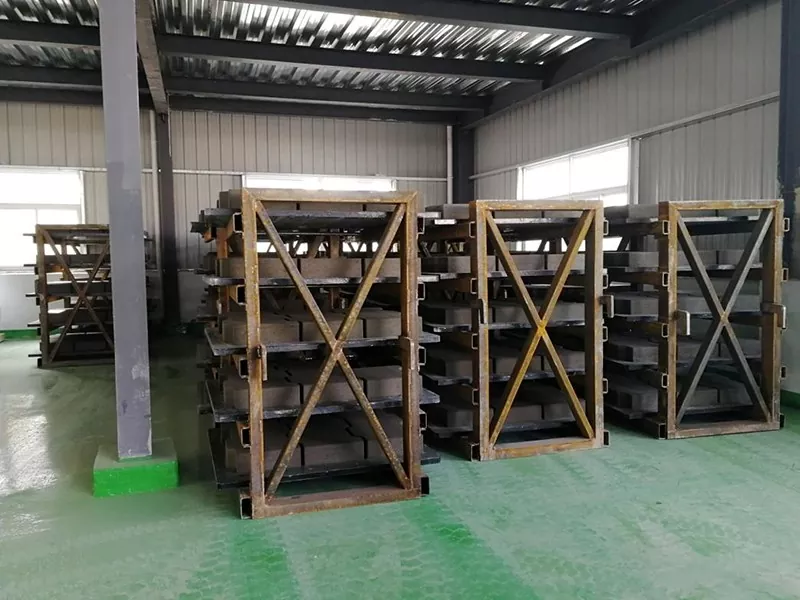

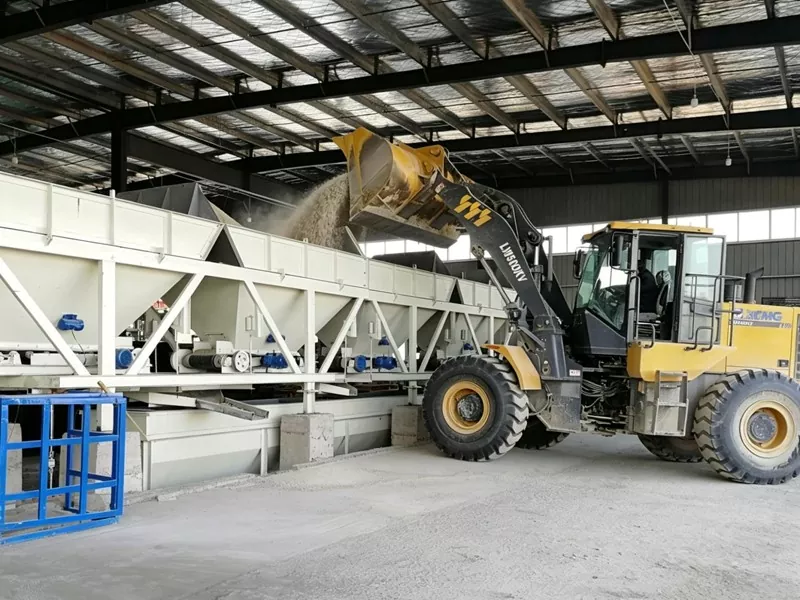

Customer Site of Silver Horse Company

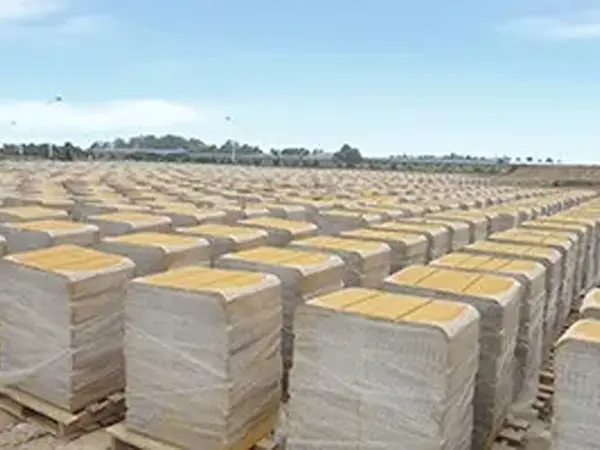

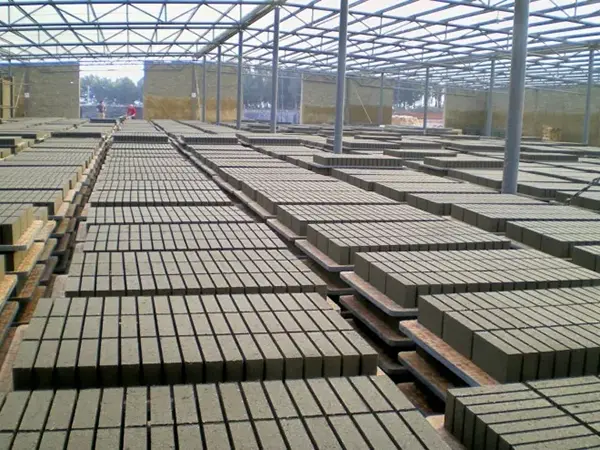

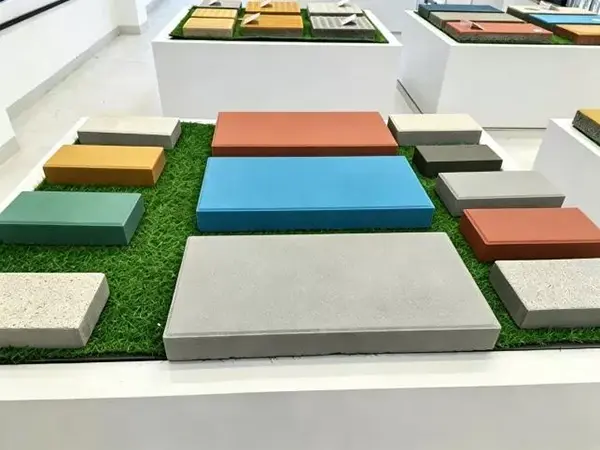

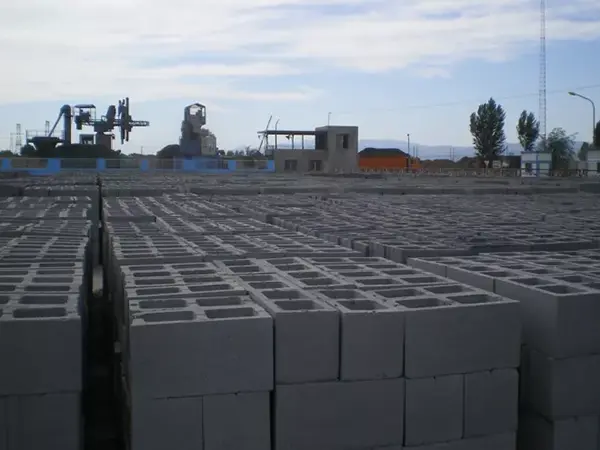

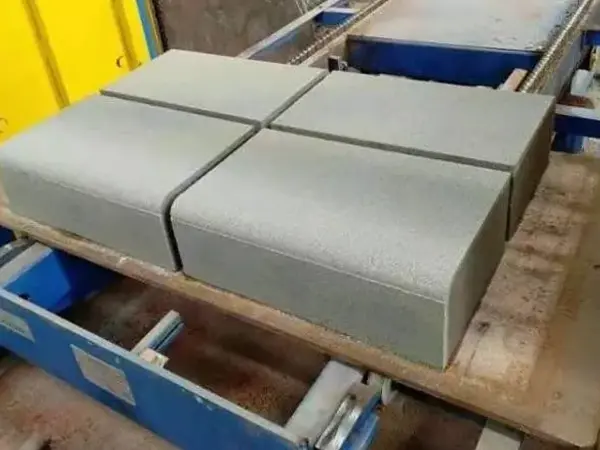

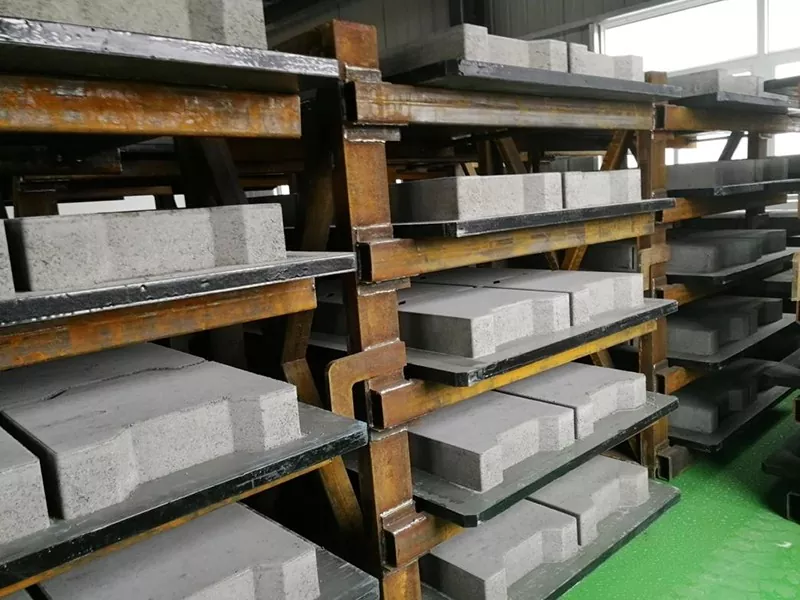

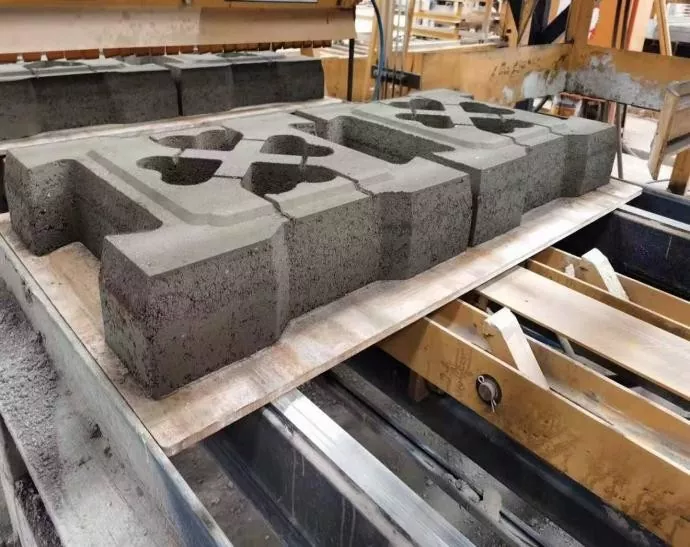

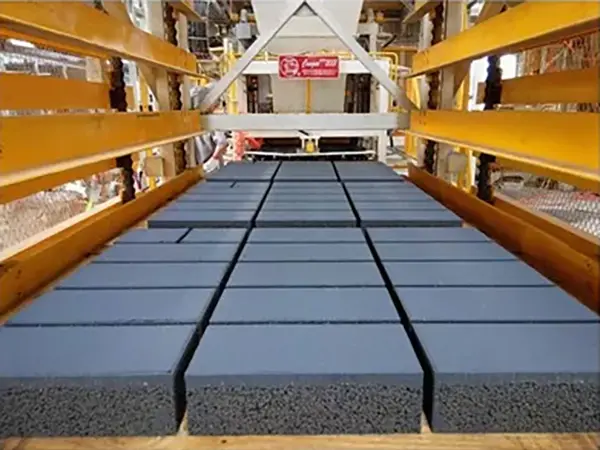

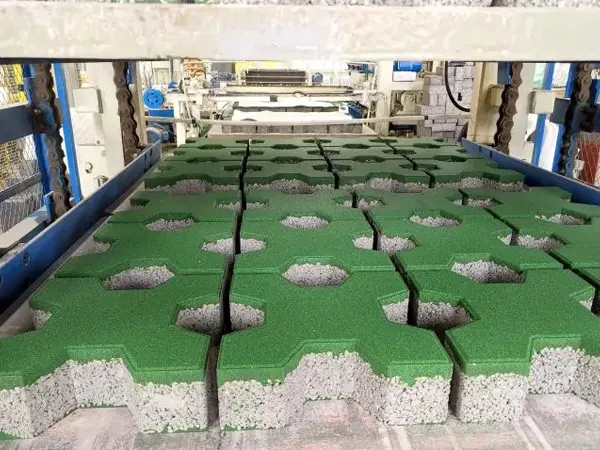

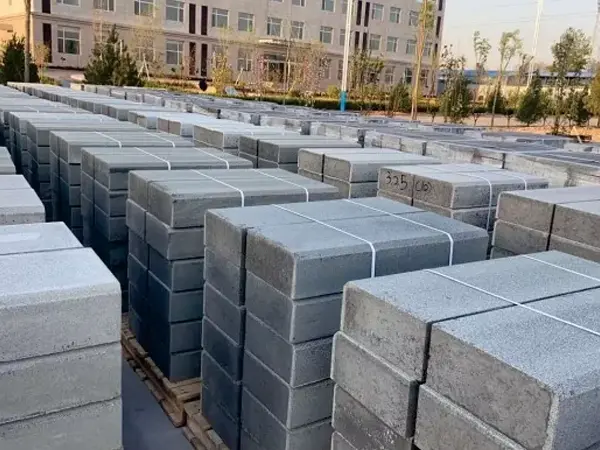

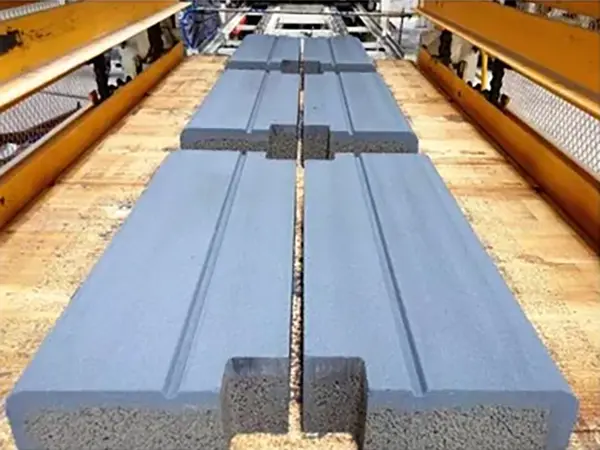

Display of products
Technical parameters
|

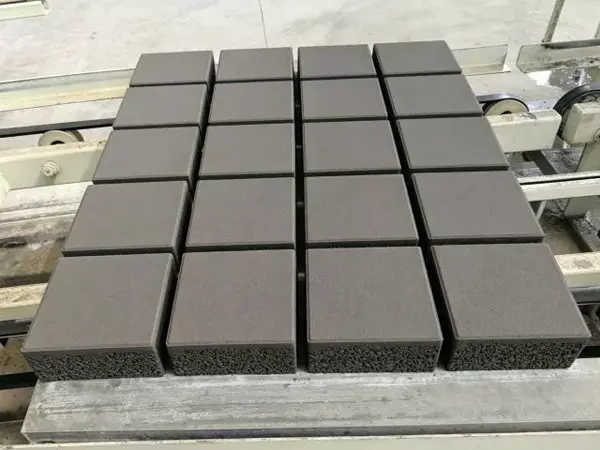

Paving stone：198×98×60/80 (mm) |
|
|
|
◇Quantity of molding：60 pcs./pallet ◇ Cycle time：20～25S ◇Output：8600～10000 pcs./h(about 170～200㎡) |
|
|
|

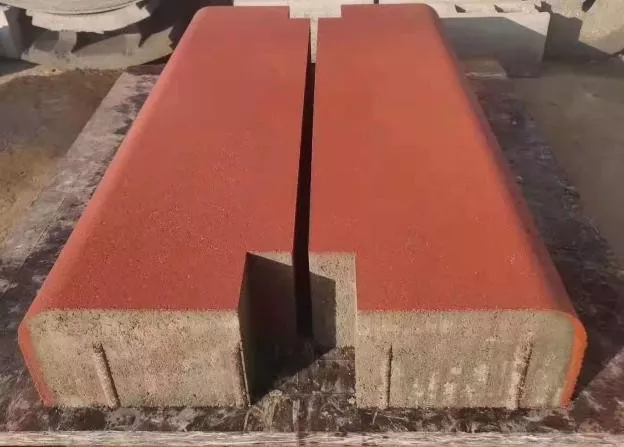

The color curbstone：500～800×120×350 (mm) |
|
|
|
◇Quantity of molding：2 pcs./pallet ◇Cycle time：30～35S ◇Output：205～240 pcs./h |
|
|
|
Slope-protection brick：406×305×102 (mm) |
|
|
|
◇Quantity of molding：9pcs./pallet ◇Cycle time：20～25S ◇Output：1300～1620 pcs./h |
|
|
|
Solid brick：240×115×53(mm) |
|
|
|
◇Quantity of molding：84 pcs./pallet ◇Cycle time：16～20S ◇ Output：15000～18900 pcs./h |
|
|
|
Hollow block：390×190×190(mm) |
|
|
|
◇Quantity of molding：15 pcs./pallet ◇ Output：2450～3000 pcs./h(about 34～42m³) |
|
|
|
◆ |
Vibration mode: the four-axis chip servo vibration system (National Patent Technology for Invention of Silver Horse) is adopted, which makes the products uniform, dense, beautiful and exquisite; the equipment noise is reduced, and the production is more efficient. |
|
|
◆ |
Pallet size (Length×Width):1400×1200（mm） |
|
|
◆ |
Installed power of main machine: about 135KW |
|
|
◆ |
Excitation frequency: 0–65 Hz (controlled by a computer-controlled, it can realize full-process frequency conversion and has hard characteristics.) |
|
|
◆ |
Average excitation acceleration:about 30g (g=9.84m/s²; in the national standard, products with ≥12g are classified as high-quality grade.) |
|
|
◆ |
Molding range: capable of producing PC artificial stone, municipal bricks, wall bricks (load-bearing & non-load-bearing), special bricks (curbstones, slope protection stones), etc. |
|
|
◆ |
Note:the molding cycle of the products varies depending on the type of raw materials and the grade requirements of the products. |
|

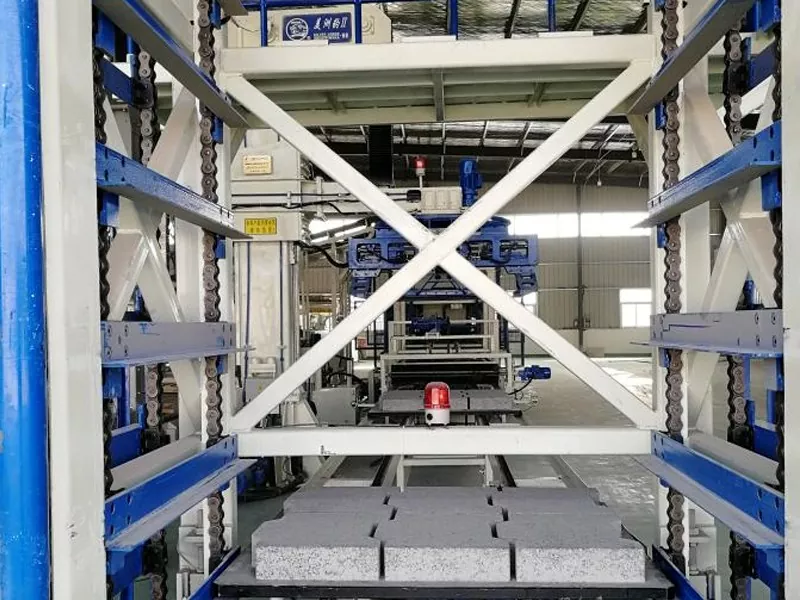

The arrangement of fully automatic block making production line
