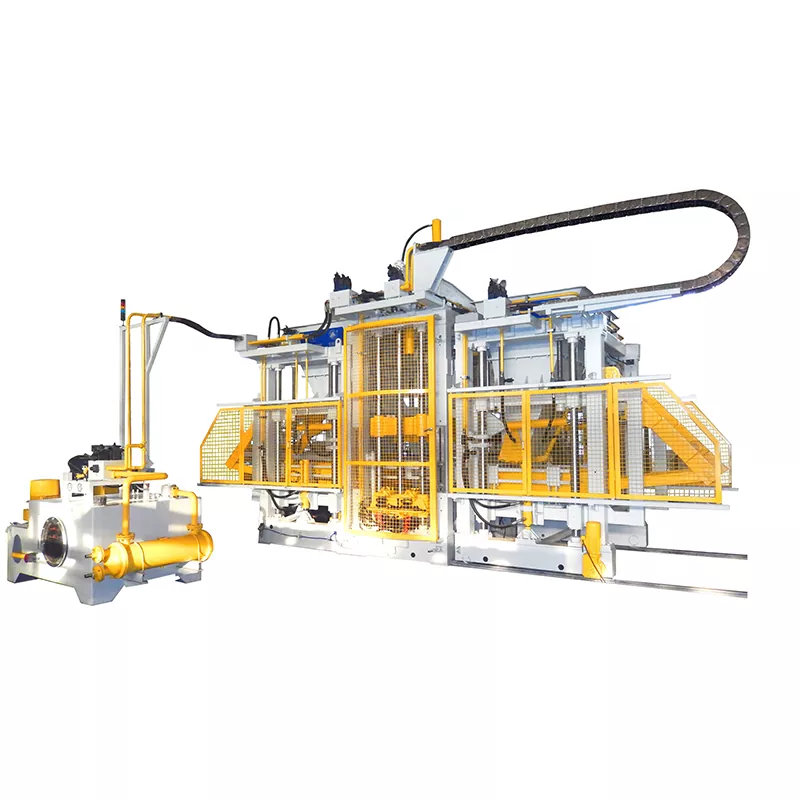

QFT15-18 Block Making Machine
Xi'an Silver Horse QFT15-18 Block Making Machine is a representative machine that marks the company's leapfrog development in the field of block making machines, transitioning from "following" to "leading." As the core product of the Xi'an Silver Horse series, it has replaced the earlier market mainstream (QFT 9-16) block making machine, becoming the current main model thanks to its fully automated production line and higher output capacity.
This machine belongs to the Xi'an Silver Horse series block making machines and is a competitive product launched during the company's third development phase (2012–2017). Unlike traditional small-scale equipment, QFT15-18 Block Making Machine features a fully automated production mode and integrates an HMI+PLC intelligent digital control system. It can efficiently produce various concrete products, including hollow blocks, paving stones, and slope protection bricks, making it the preferred equipment for large block factories aiming to achieve mass production.
What are the advantages of this equipment?
High Production Efficiency: QFT15-18 Block Making Machine aligns with the trend toward larger-scale equipment in the industry of block making machines. Compared to other models, it offers a significantly higher single-cycle molding capacity, substantially improving production efficiency per unit of time.
Fully Automatic Production: it enables full-process automation from raw materials weighing to finished product palletizing, greatly reducing the need for on-site operators. This not only lowers labor costs but also ensures consistent product quality through standardized operations.
Market Validation: as a mature model introduced between 2012 and 2017, QFT 15-18 block making machine has undergone extensive market testing, proving its stable and reliable technology. It successfully replaced similar foreign equipment due to its superior cost-effectiveness and now enjoys a broad customer base across China.

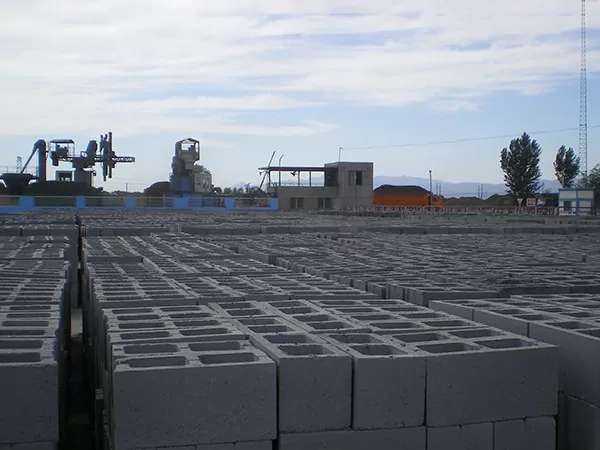

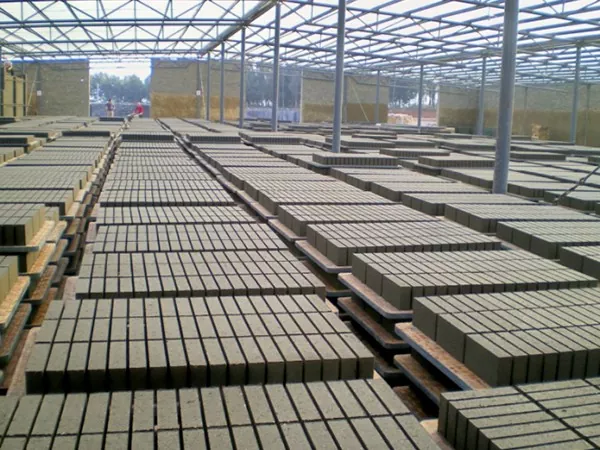

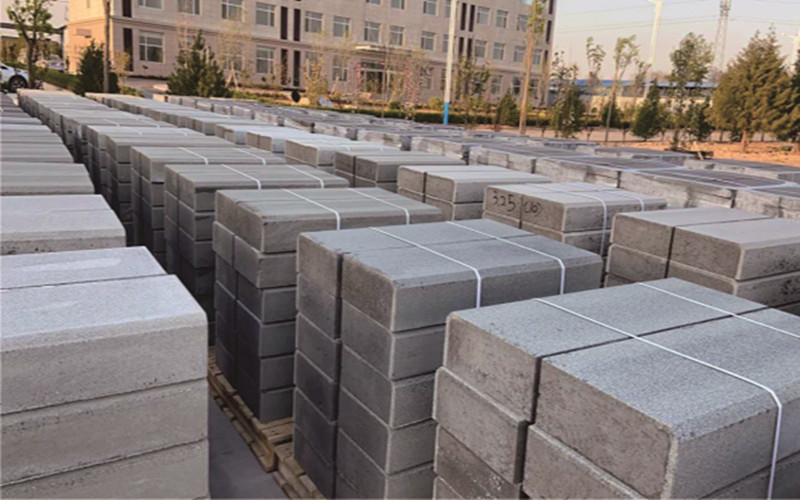

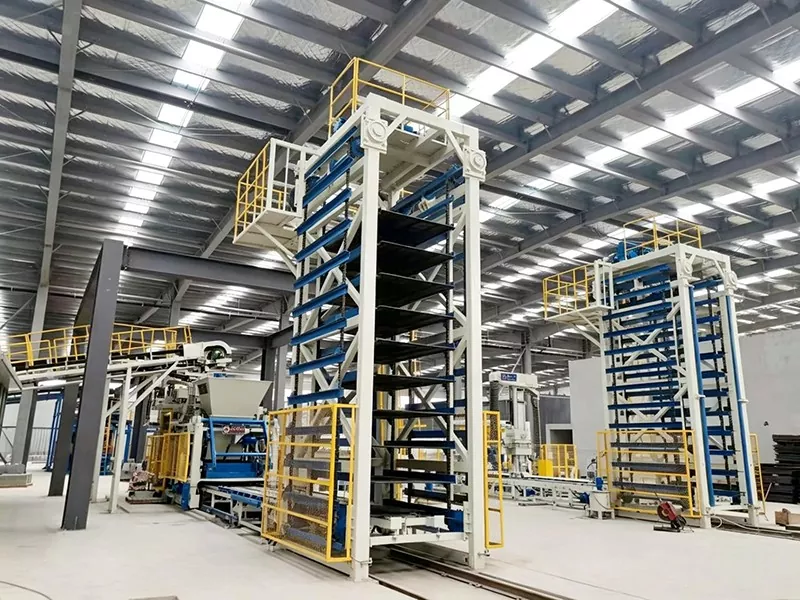

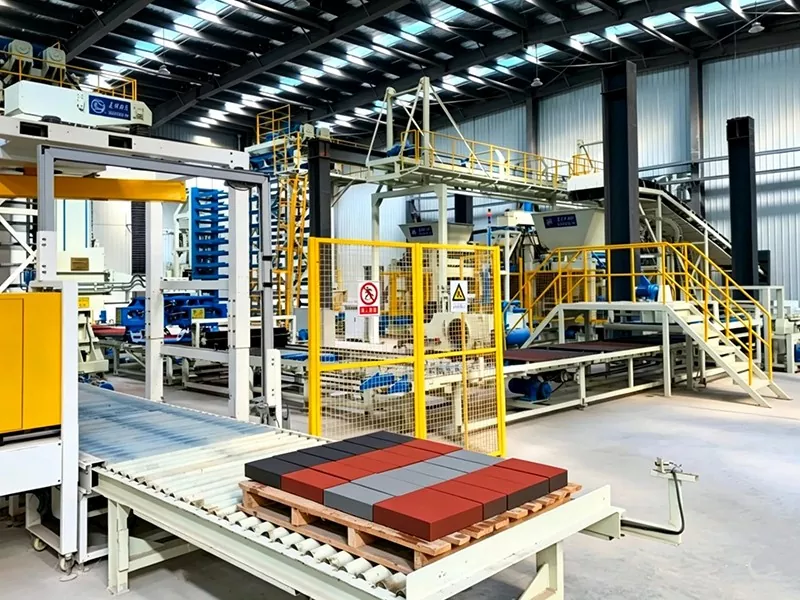

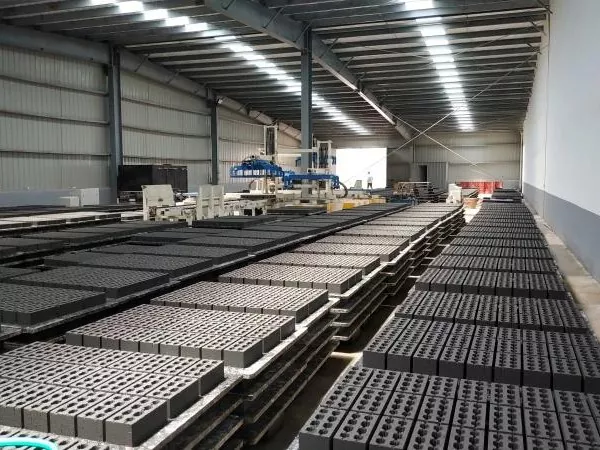

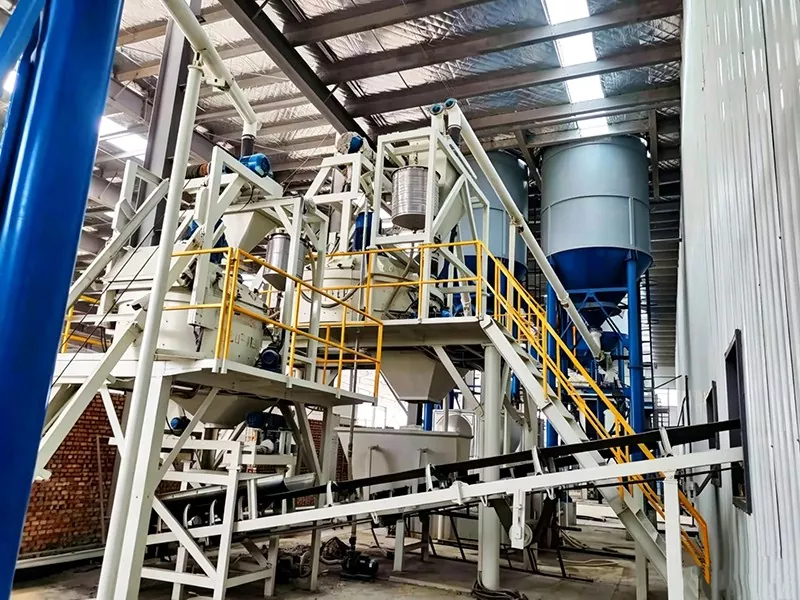

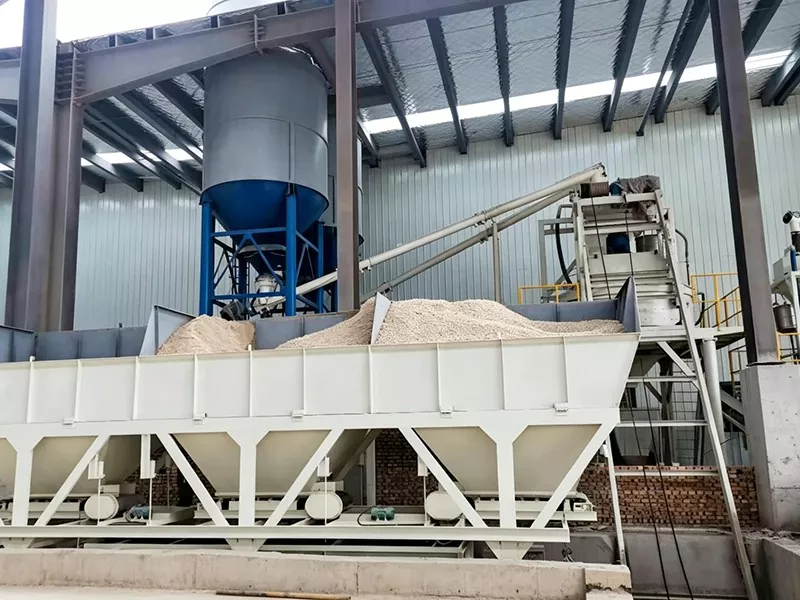

Customer Site of Silver Horse Company

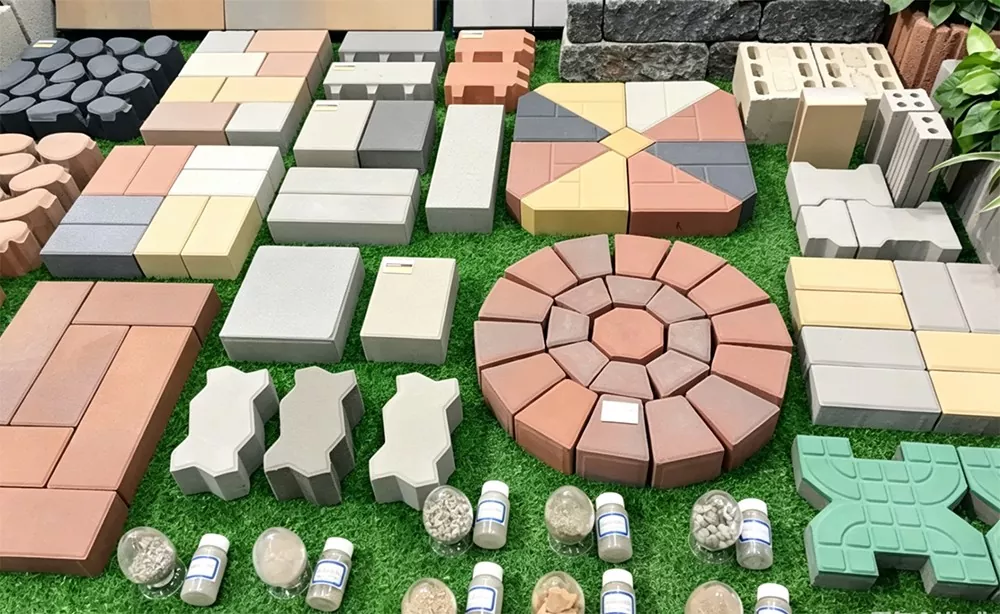

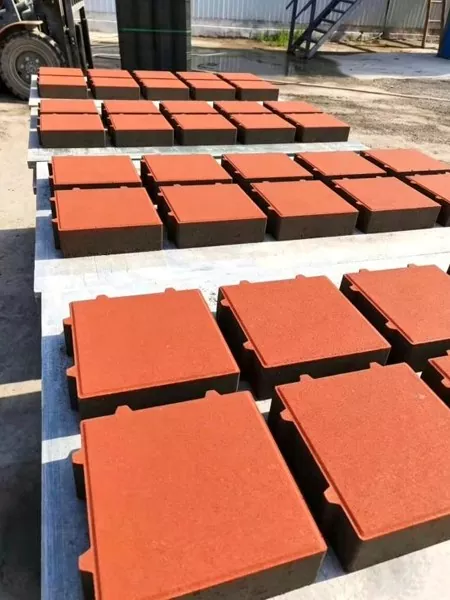

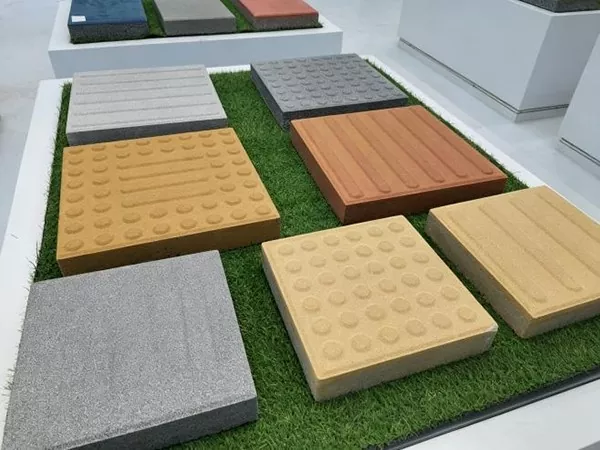

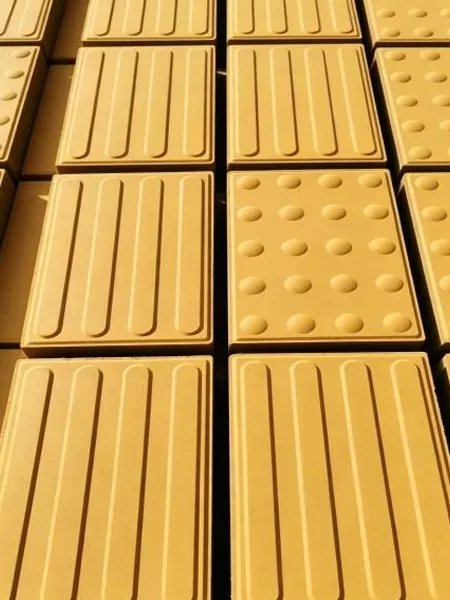

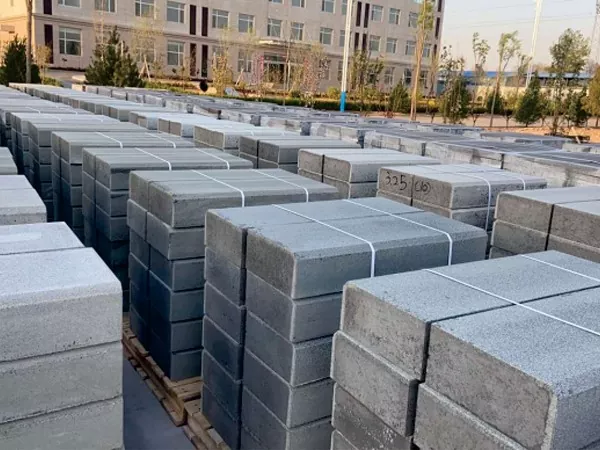

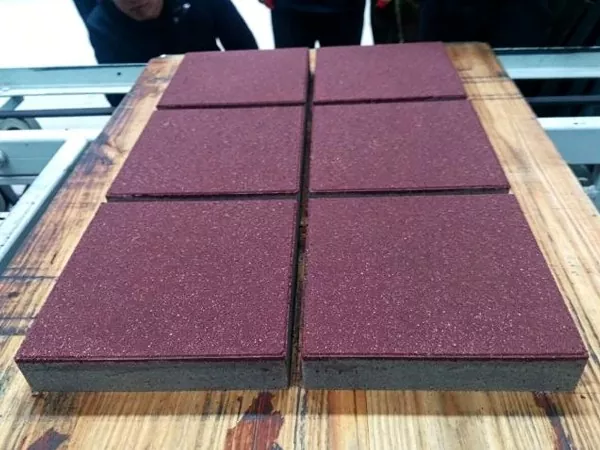

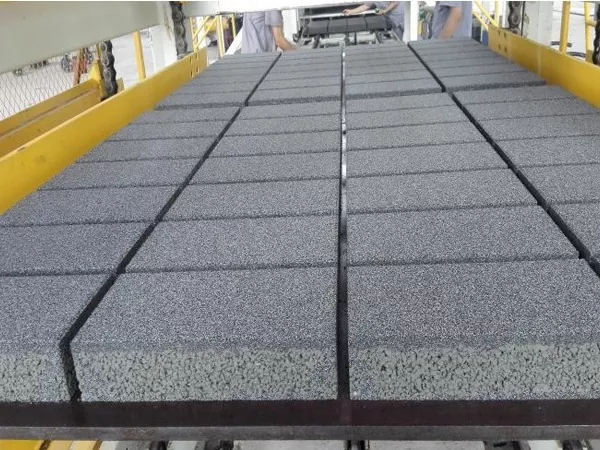

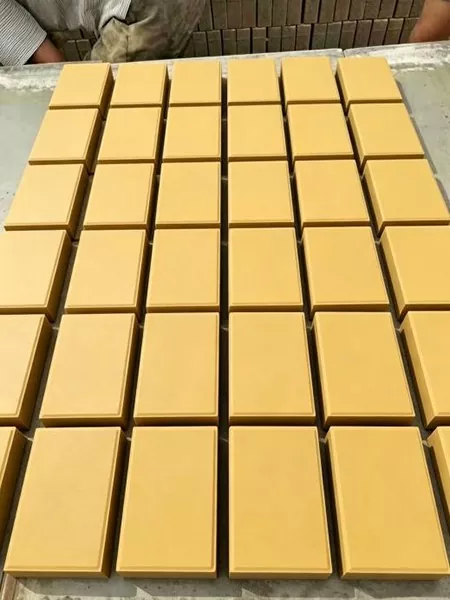

Display of products

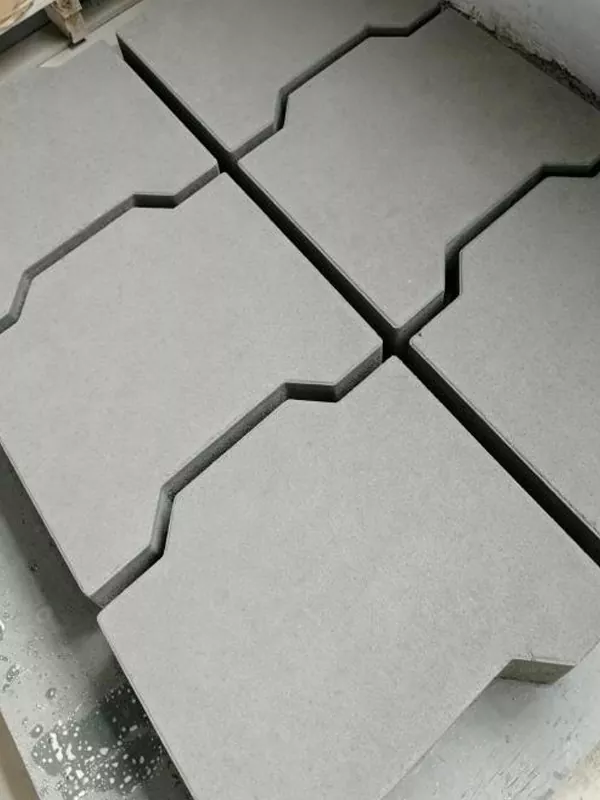

Interlocking block
Paving stone
Interlocking block
Paving stone
Curbstone
Paving stone

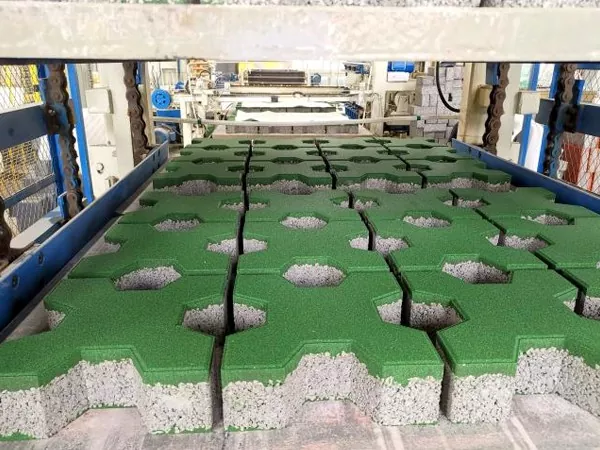

Lawn block
Ecological permeable brick
Paving stone
Slope-protection brick
Hollow block
Porous block
Soild brick

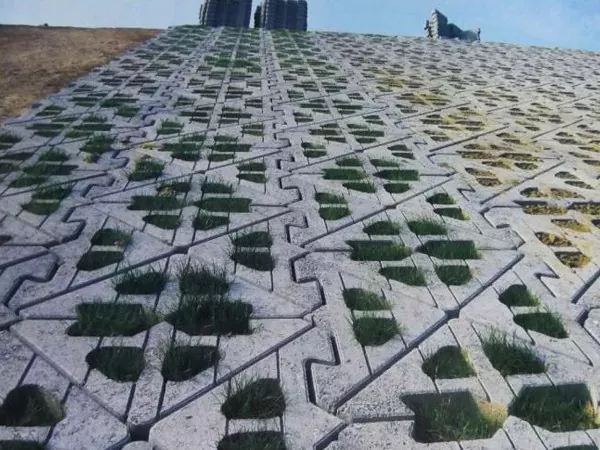

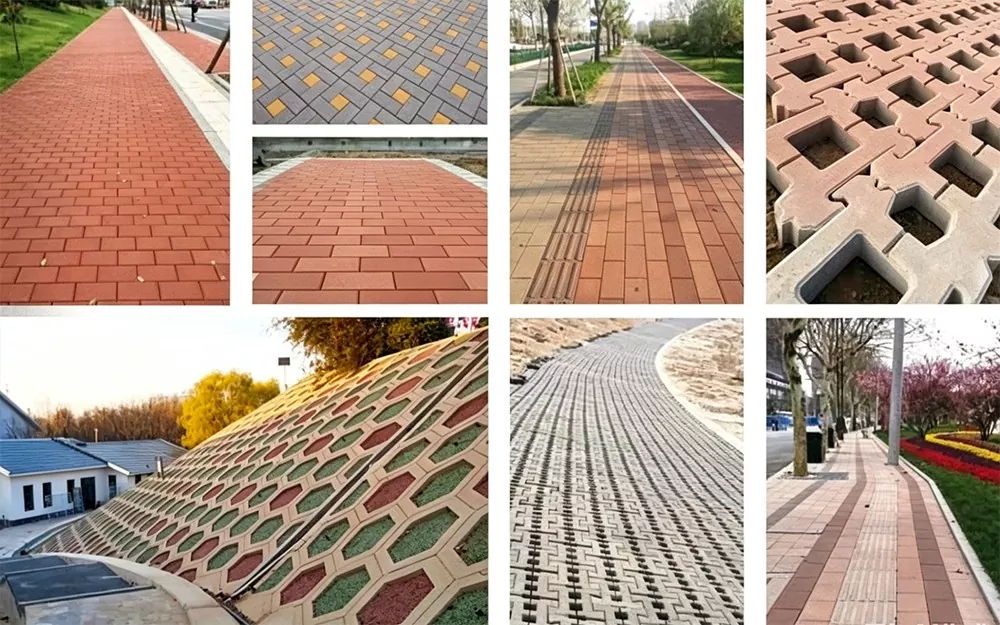

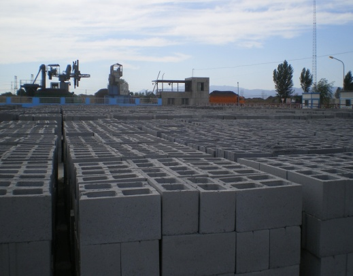

Application of products
Technical parameters
|
Paving stone：198×98×60/80 (mm) |
|
|
|
◇Quantity of molding：60 pcs./pallet ◇ Cycle time：20～25S ◇Output：8600～10000 pcs./h(about 170～200㎡) |
|
|
|
The color curbstone：500～800×120×350 (mm) |
|
|
|
◇Quantity of molding：2 pcs./pallet ◇Cycle time：30～35S ◇Output：205～240 pcs./h |
|
|
|
Slope-protection brick：406×305×102 (mm) |
|
|
|
◇Quantity of molding：9pcs./pallet ◇Cycle time：20～25S ◇Output：1300～1620 pcs./h |
|
|
|
Solid brick：240×115×53(mm) |
|
|
|
◇Quantity of molding：84 pcs./pallet ◇Cycle time：16～20S ◇ Output：15000～18900 pcs./h |
|
|
|
Hollow block：390×190×190(mm) |
|
|
|
◇Quantity of molding：15 pcs./pallet ◇ Output：2450～3000 pcs./h(about 34～42m³) |
|
|
|
◆ |
Vibration mode: the four-axis chip servo vibration system (National Patent Technology for Invention of Silver Horse) is adopted, which makes the products uniform, dense, beautiful and exquisite; the equipment noise is reduced, and the production is more efficient. |
|
|
◆ |
Pallet size (Length×Width):1400×1200（mm） |
|
|
◆ |
Installed power of main machine: about 135KW |
|
|
◆ |
Excitation frequency: 0–65 Hz (controlled by a computer-controlled, it can realize full-process frequency conversion and has hard characteristics.) |
|
|
◆ |
Average excitation acceleration:about 30g (g=9.84m/s²; in the national standard, products with ≥12g are classified as high-quality grade.) |
|
|
◆ |
Molding range: capable of producing PC artificial stone, municipal bricks, wall bricks (load-bearing & non-load-bearing), special bricks (curbstones, slope protection stones), etc. |
|
|
◆ |
Note:the molding cycle of the products varies depending on the type of raw materials and the grade requirements of the products. |
|

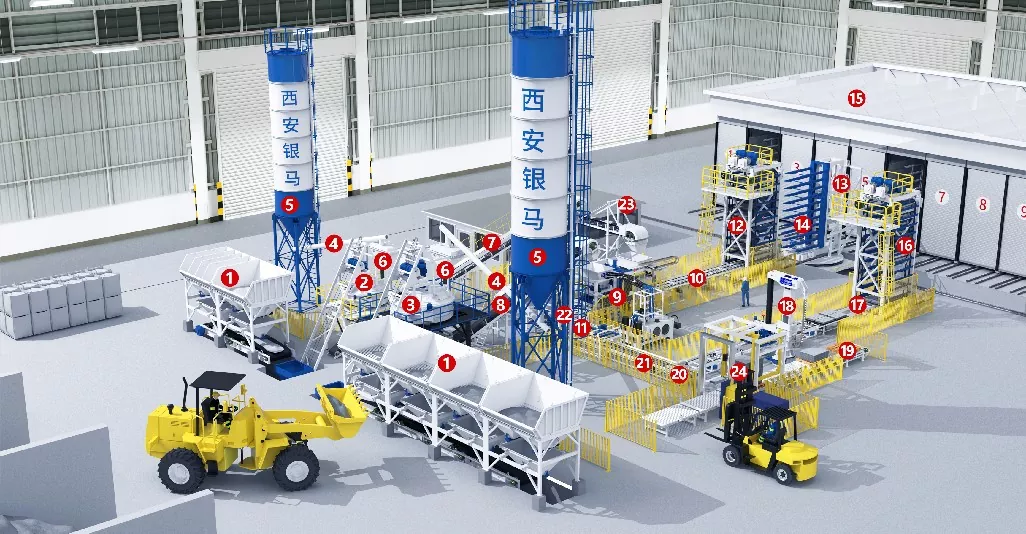

The arrangement of fully automatic block making production line
