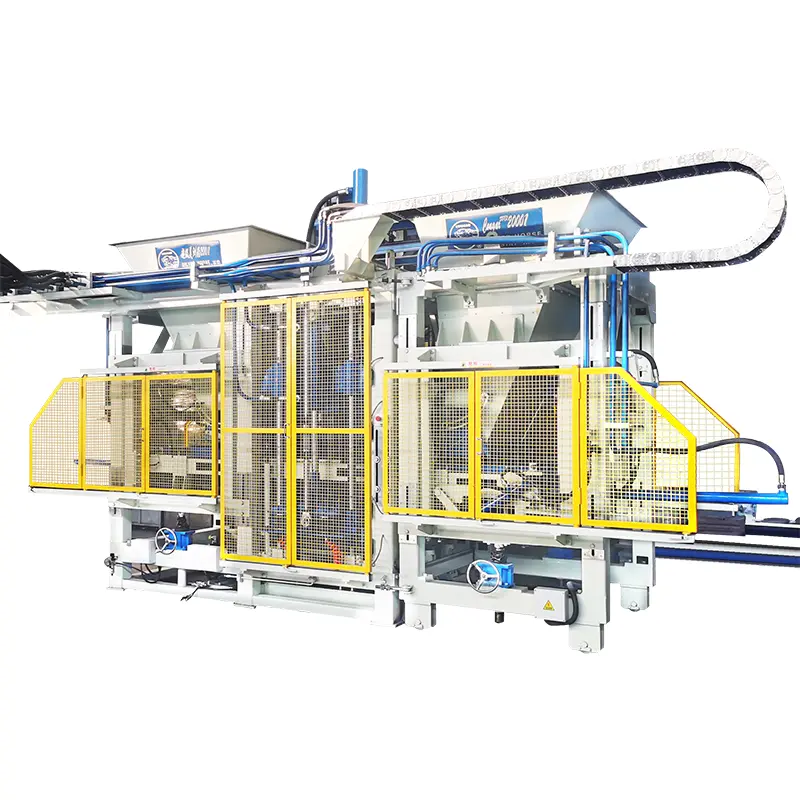

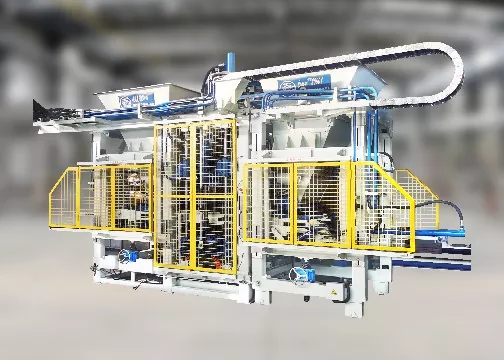

Baking-free Brick Machine
Xi'an Silver Horse baking-free brick machine, featuring an environmental block making process without sintering, does not require high-temperature firing. It uses construction waste and solid waste from mining to produce bricks. With high forming pressure, it operates stably and quietly. As a high-tech enterprise in China, it has helped over a hundred enterprises at home and abroad build green building material factories.
Silver Horse baking-free brick machine is a block making machine that uses common sand, stone and cement as raw materials to produce new types of wall bricks and paving bricks. Its core advantages lie in its molding technology, and high level of automation. The baking-free brick machine features a patented multi-axis servo vibration system with a reasonable layout and compact structure. The vibration system enables variable frequency and amplitude adjustment, with an excitation frequency range of 0–65 Hz.
Technical Features
A multi-axis servo vibration system, in which the frequency and excitation force of the vibration system are controlled by an electric servo control system to achieve optimal vibration liquefaction effect for materials.
The control core of the electrical control system consists of a programmable controller and its expansion modules.

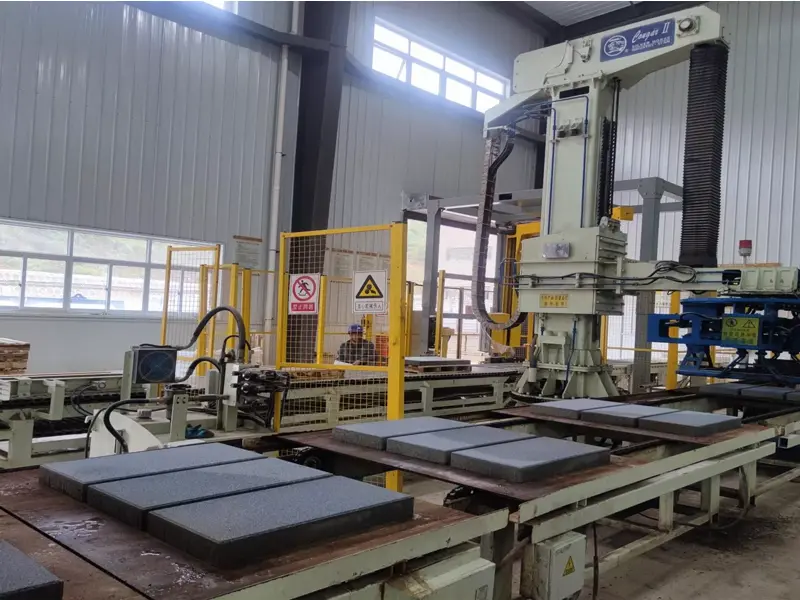

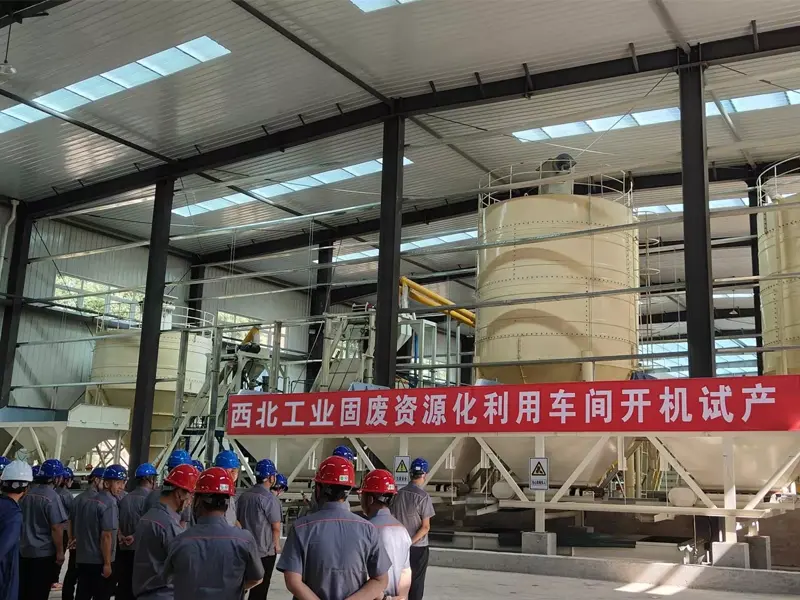

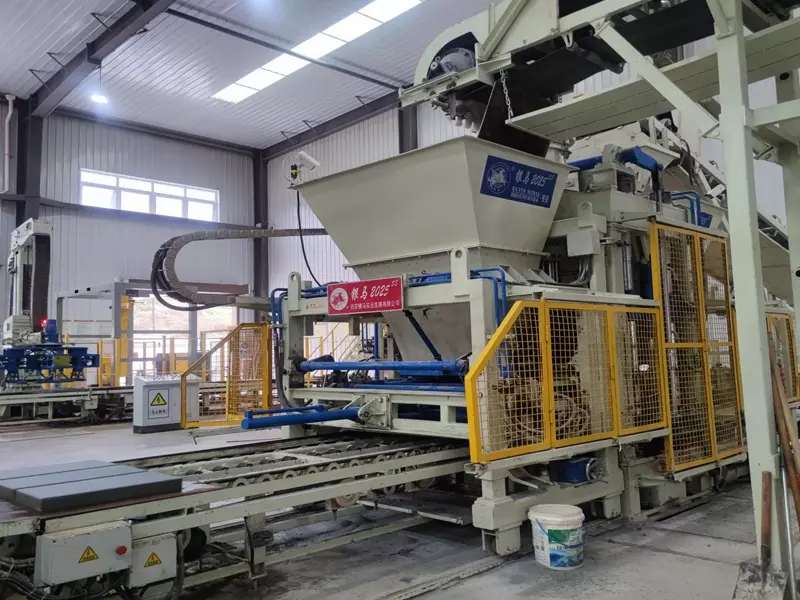

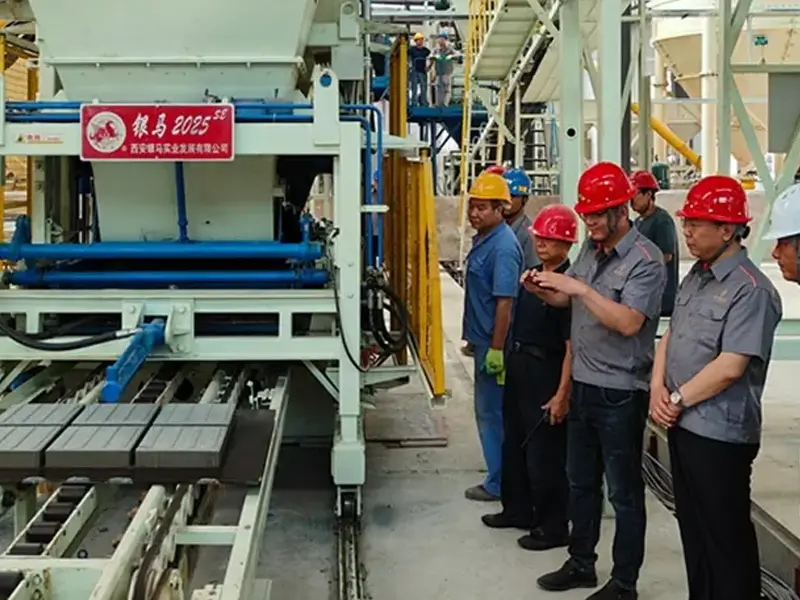

On-site demonstration of the baking-free brick production line
Parameters
|
Model |
Specifications |
Forming Blocks |
Cycle time |
Output/hour |
|
Hollow block |
390×190×190mm |
9块 |
13～20秒 |
1600～2100块 |
|
Porous block |
240×115×90mm |
28块 |
13～20秒 |
5000～5600块 |
|
Solid brick |
240×115×53mm |
56块 |
13～20秒 |
10000～12000块 |
|
Paving stone |
198×98×60/80mm |
40块 |
13～20秒 |
6500～7000块 |

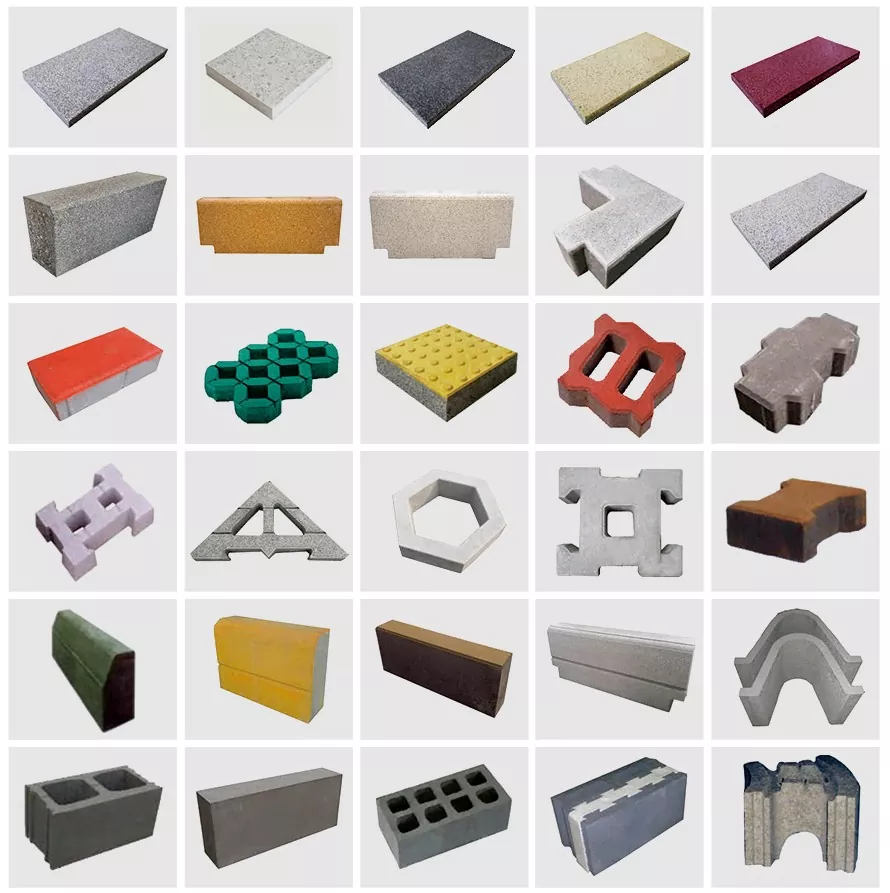

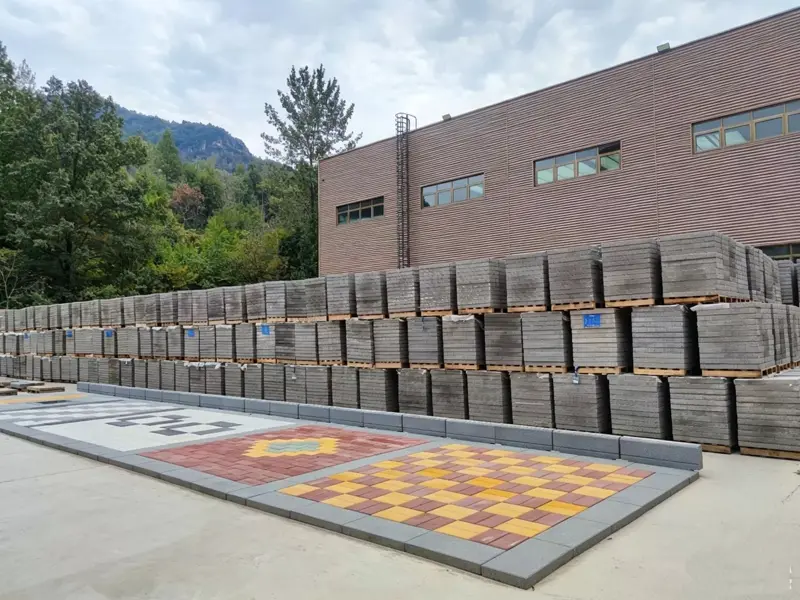

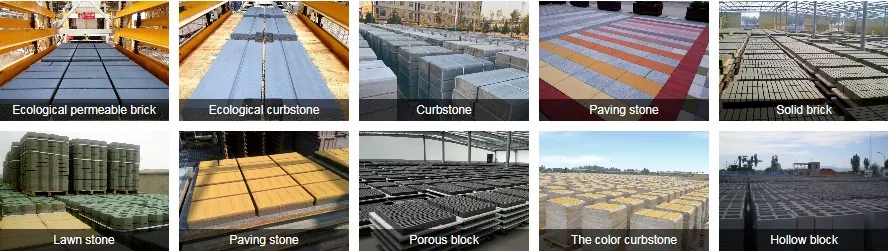

Display of products
Application of products
